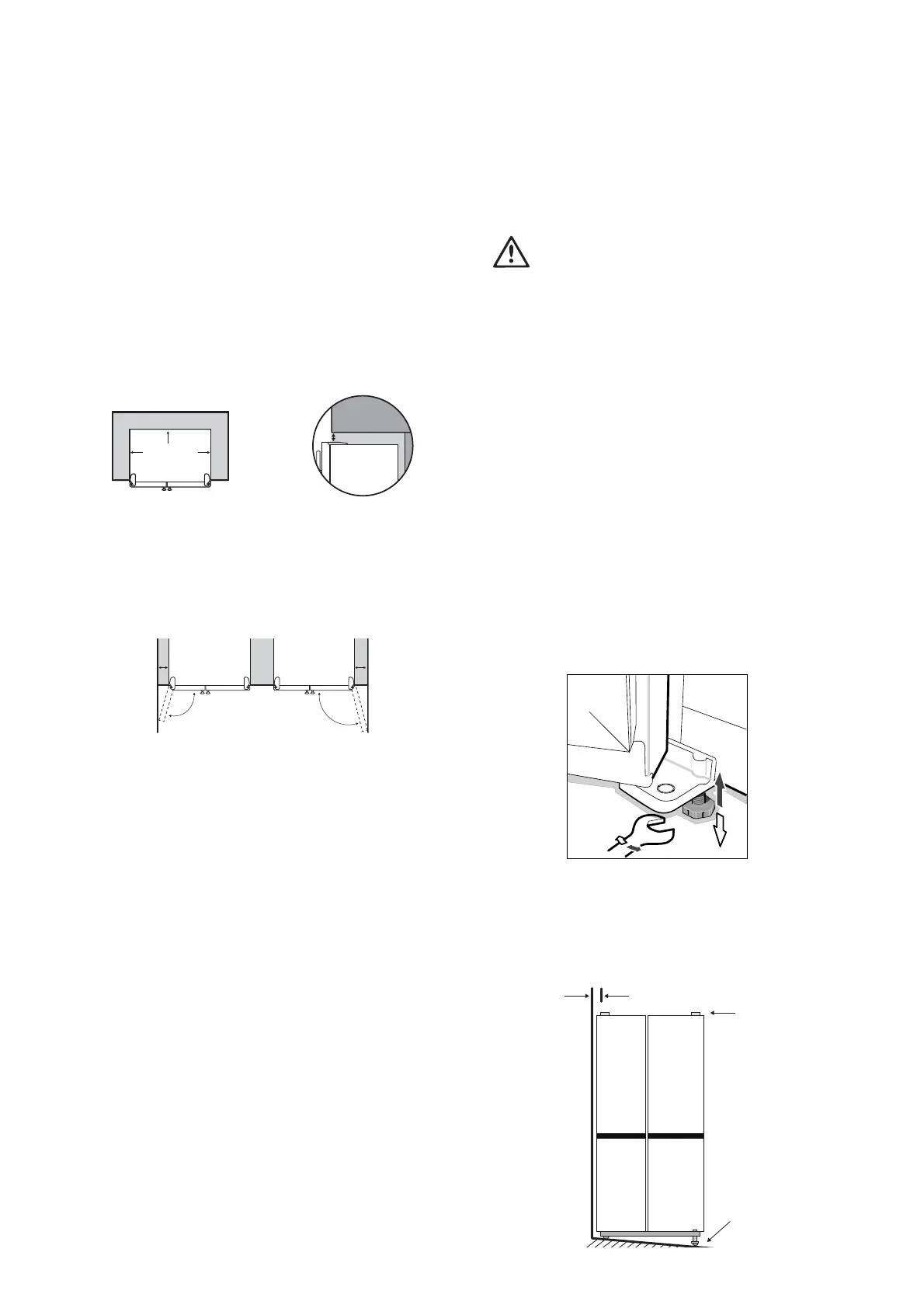

Installing your refrigerator
The appliance should arrive with the stability foot wound fully
up so it will not interfere with the operation of the rollers (see
diagram in Step 3 below).
caution
The rollers are designed for forward or backward
movement only. They are not castors. Moving the
refrigerator sideways may damage your fl oor and
the rollers.
1. Roll the refrigerator into its final position.
2. When the refrigerator is placed on a level ground, the
front of the refrigerator is higher than the back, and
there is a certain height difference (about 2.5mm), so
that the refrigerator can be tilted at a certain angle, so
as to ensure that the door can be closed better.
3. When you have the appliance in its fi nal position,
it needs to be stabilized Wind the stability foot down
to the fl oor until it just makes contact with the fl oor.
Whenever you need to move the appliance, be sure
to wind the foot back up so that the appliance can roll
freely and be sure to reset it when reinstalling.
( The wrench opening size 30mm )
4. Check the alignment of the refrigerator to the surrounding
T
Top of refrigerator on
the same levelie.
horizontal
Adjust front rollers
for uneveness of floor
eg. wind this foot
down or up
Aligned to
cupboards
ie. even gap
4 Installing your new refrigerator
1. Allow a minimum of 50mm clearance on both sides.
2. Allow 50mm clearance at the back of the
refrigerator.
3. Allow 20mm clearance above the hinge covers.
5. Make sure that cupboards or fixtures do not stick
out further than the refrigerator cabinet to avoid fridge
doors hitting your cupboards.
Note: Refrigerator doors on all models are designed to
sit proud of cabinetry (not flush).
The minimum distance allowed：
DOORS
minimum
distance
50mm
50mm
50mm
20
mm
cupboards. The top of the refrigerator should be on the
same level from side to side (see diagram below).
If you need to adjust the level, use the adjustable rollers
as discussed in Step 3.
Left
Door
Right
Door
349mm
427mm
4. Allow a 349 or 427mm clearance on the hinge side of the
doors, if you place the refrigerator next to the wall. This will make
cleaning easier.
Installing your new refrigerator
Clearance around your refrigerator
Your Multidoor Refrigerator can be installed between
cupboards or fixtures but you must consider the following
spaces around the cabinet:
