48 electrolux.com.au
WARNING
Slides (telescopic runners)
• Do not subject slides to temperatures
greater than 300°C.
• Do not place slides in a dishwasher.
• Do not use a knife or sharp objects to
clean slides.
• Do not add oil or any other lubricant to slides.

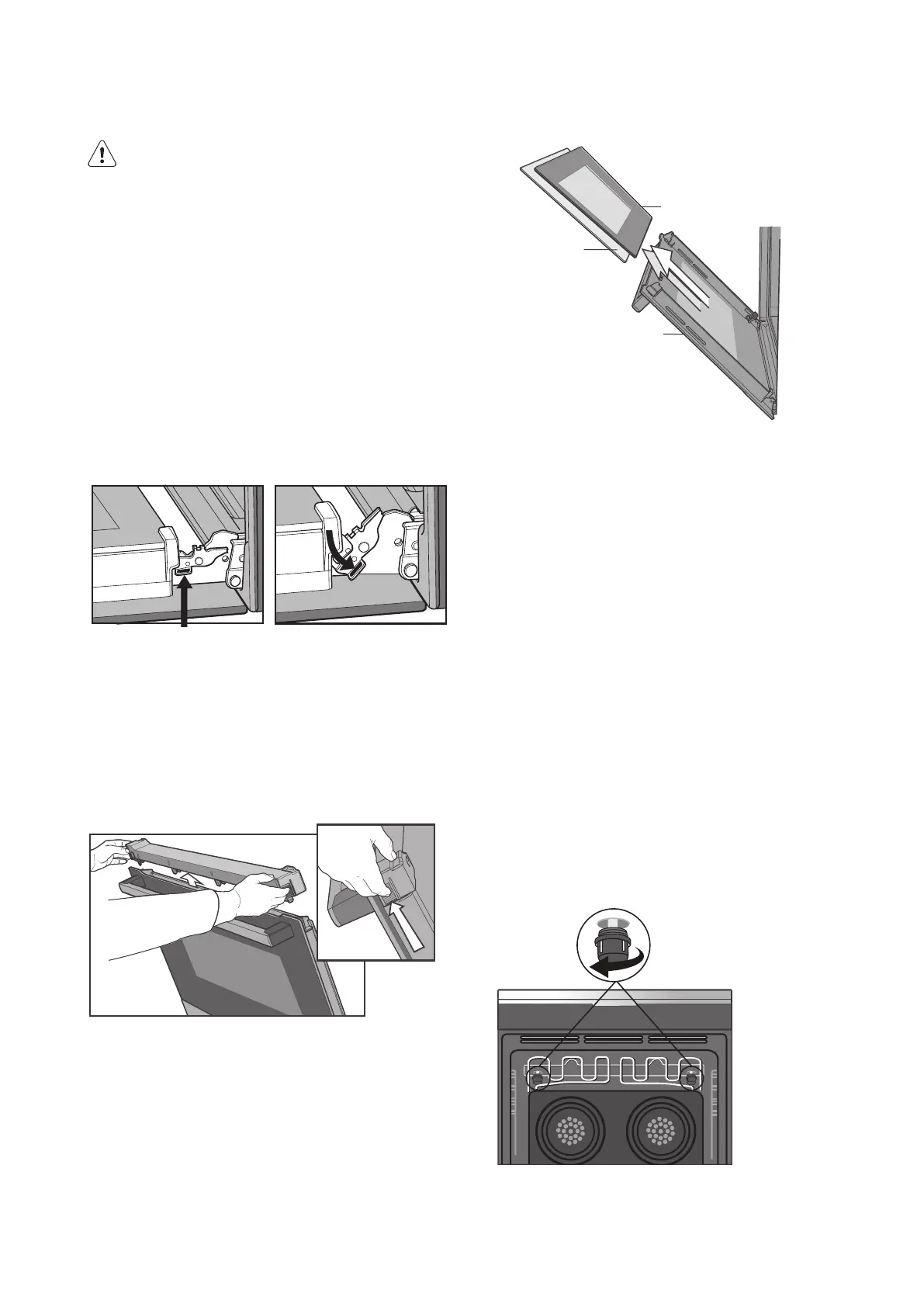

Positioning the door for dismantling
The door needs to be positioned at an angle to aid in
the disassembly of the panes.
• Open the door fully to gain access to the hinges.
• Push down the hinge locking tab on both hinges.
Locking tab up - normal position Locking tab down - for cleaning
• Gently close the door until it stops in the partially
open position on the locking tab.
NOTE: The door cannot fully close with the locking tab
in this down position.
Removing the top door trim
• Push in the 2 tabs on either side of the trim.
• Lift the trim away from the door.
Removing the glass panes
• Remove the inner glass and middle glass layers
from the door.
• Clean the glass using detergent and warm water.
Wipe clean and dry thoroughly.
• The outside glass cannot be removed from the
door and hence can be cleaned in-situ.
CLEANING THE OVEN DOOR
Inner Glass
Middle Glass x 2
Outside_
Reassembling the glass panes & and top door trim
• Replace the middle glass back to the door first.
The middle glass is a clear pane and orientation of
the glass is not important.
• Replace the inner glass next ensuring the side that
is painted is facing away from the oven cavity.
• Replace the top door trim ensuring the 2 side tabs
have clipped into the column.
• Pull the hinge locking tabs back up and close the door.
Changing the light globes
• Switch the appliance off at the isolation switch before
attempting to change the light globe.
• There are 2 light globes located in the top of the oven
cavity towards the rear.
• To get access to the globes, firstly drop the element
down as explained on page 41.
• To remove, turn oven light glass anti-clockwise.
• A special high temperature resistant borosilicate globe
should be used. This can be purchased from the
Customer Care Centre.
Light glass can be removed
- turn anti-clockwise
