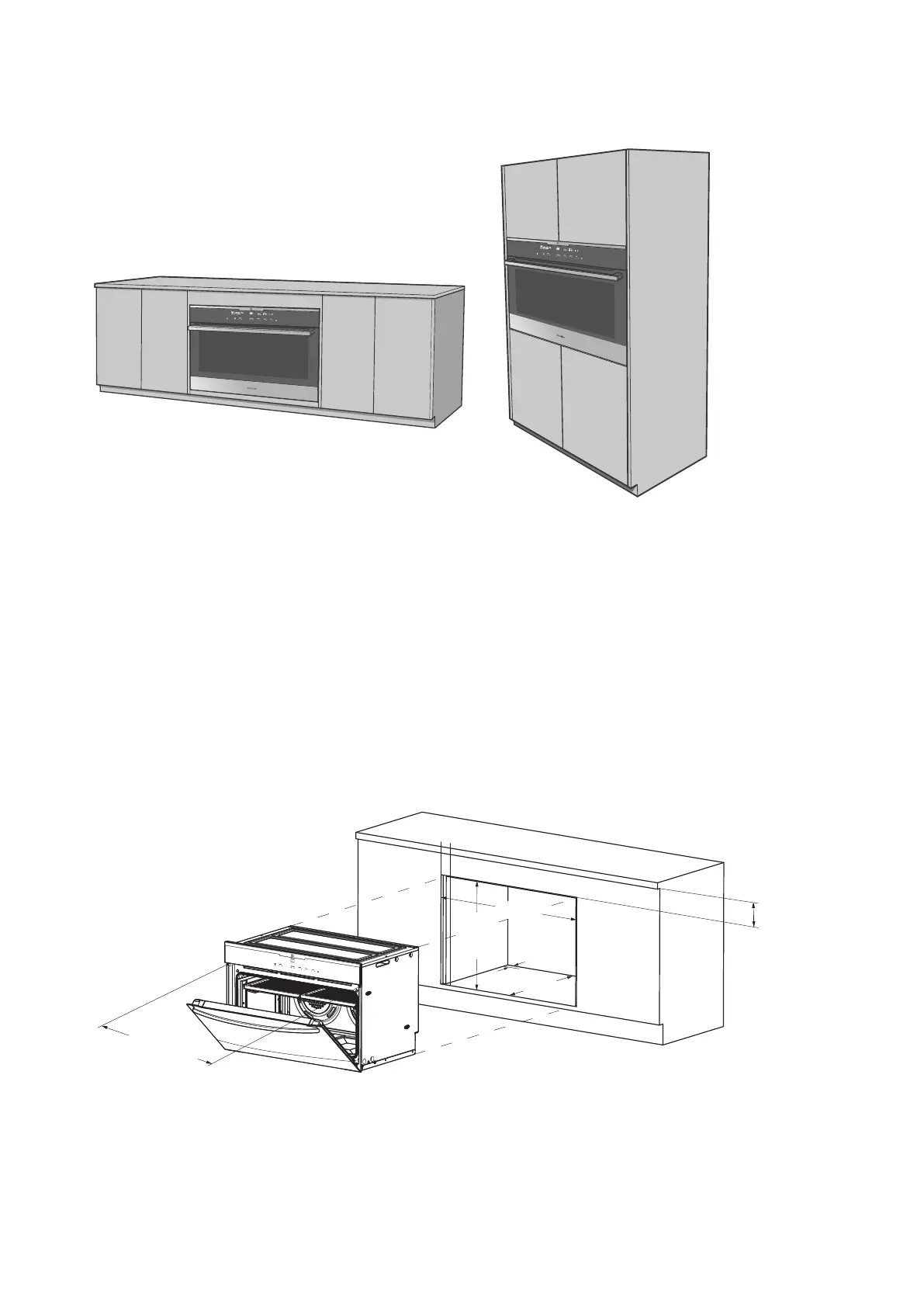

Underbench installation
Your underbench oven looks best when the control panel
is directly under the benchtop. An upper infill panel may
be added if the cooktop placed above the benchtop is
too deep. *Refer to cooktop installation instructions for
required clearance between cooktop and oven.
Vertical cabinet installation
The oven can be built into a vertical cabinet in the same
manner as an underbench. The required cavity dimensions
are the same and the product is secured to the cabinet in
the same way.
INSTALLATION OF EVEP916
For the best integration within a kitchen, install this
appliance in a cupboard that gives a flush fit with the
surrounding cupboard fronts. A recess of 20mm is ideal.
NOTE: Your appliance must be mounted on a horizontal
surface for the full width and depth of the product.
NOTE: A ventilation slot 20mm wide is required at the
rear of the base of the cabinet floor.
The cooker MUST be installed in compliance with:
• Wiring connections in AS/NZS 3000 Wiring Rules.
• Local regulations, municipal building codes and
other statutory regulations.
NOTE: If a powerpoint is fitted it must be accessible with the
appliance installed.
900mm
600mm
580mm
*Refer to cooktop installation instructions for required
clearance between cooktop and oven.
876mm
Mounting holes
20mm
slot
100mm
max
*20mm
see note
below
To Next Page
