Basic Information
TOUCH CONTROL PANEL
1. Control panel
2. Ventilation openings
3. Model / Serial label
4. Door seals and sealing surfaces
5. Safety door latches - The oven will not operate
unless the door is securely closed.
6. Oven door with see-through window
7. Door handle
8. Door hinges
9. Turntable motor shaft
10. Menu label
11. Oven light - It will light when oven is operating or
door is open.
12. Waveguide cover: DO NOT REMOVE.
13. Time display: 99 minutes, 99 seconds
14. Popcorn/Bacon Tray
15. Removable turntable - Place the turntable on the
turntable support securely. The turntable will rotate
clockwise or counterclockwise. Only remove for
cleaning.
16. Removable turntable support - Carefully place the
turntable support in the center of the oven floor.
Oven Diagram

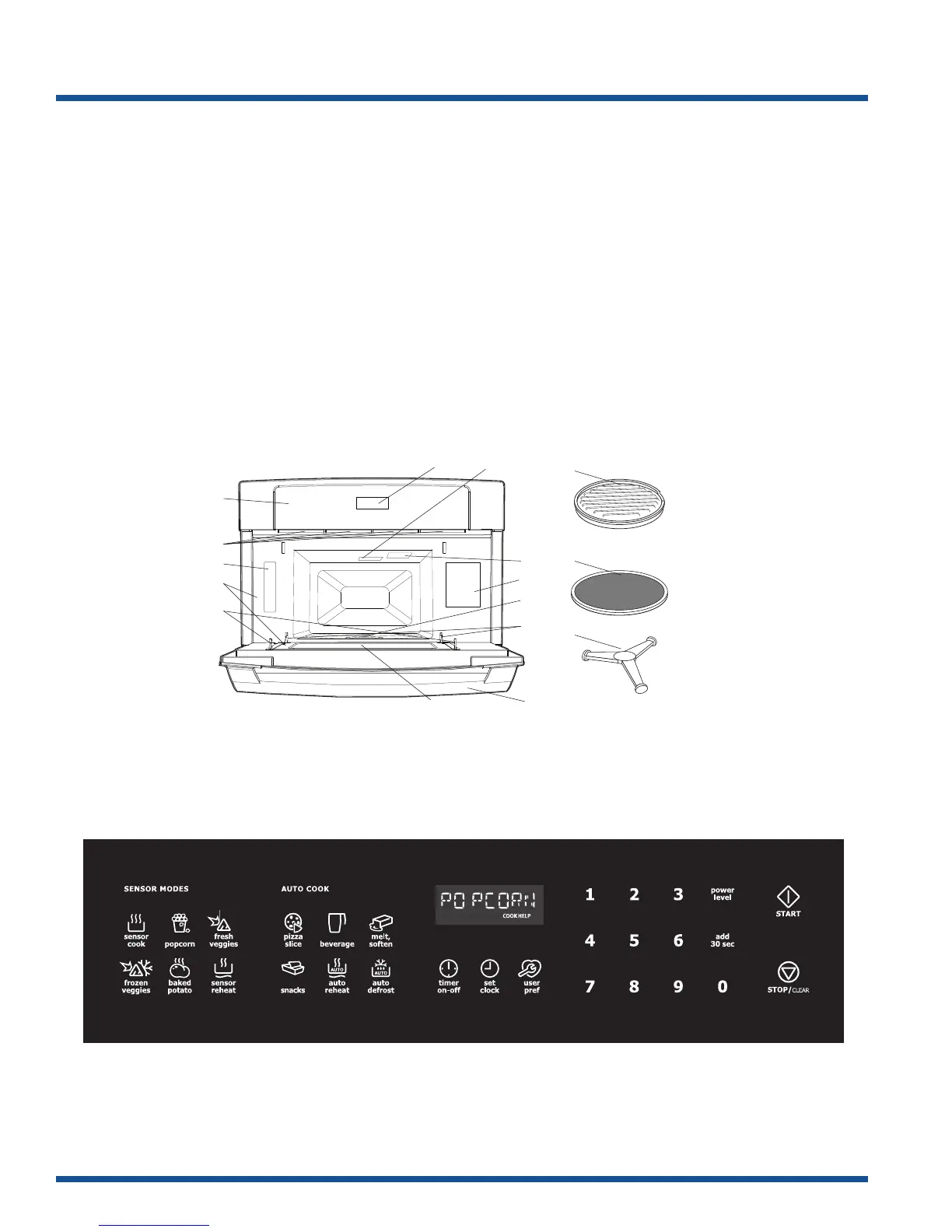

OVEN DIAGRAM
11
2
1
9
10
3
4
8
5
