Feature Overview

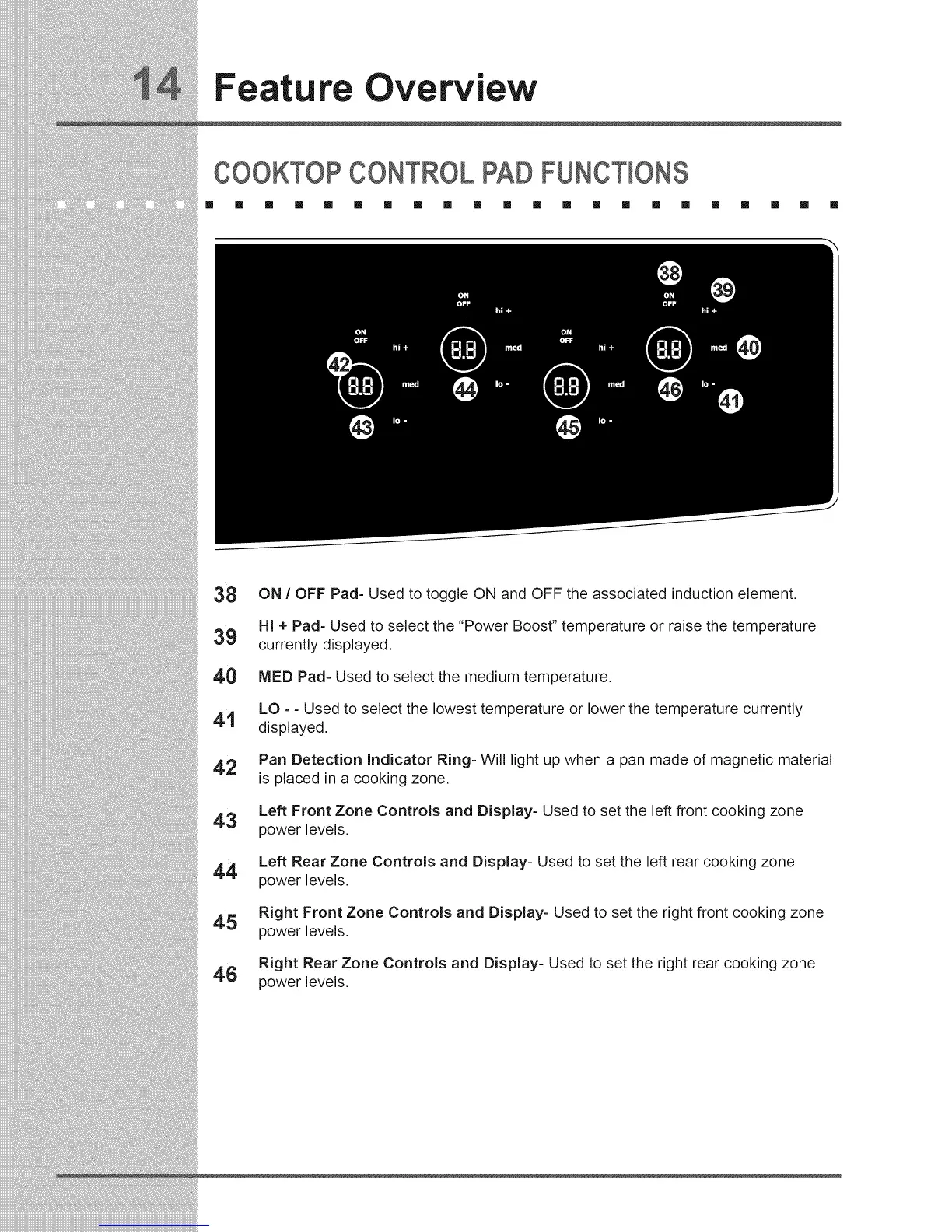

COOKTOP CONTROL PAD FUNCTIONS
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
38 ON / OFF Pad- Used to toggle ON and OFF the associated induction element.
HI + Pad- Used to select the "Power Boost" temperature or raise the temperature
39 currently displayed.
40 MED Pad- Used to select the medium temperature.
LO - - Used to select the lowest temperature or lower the temperature currently
41 displayed.
42 Pan Detection Indicator Ring- Will light up when a pan made of magnetic material
is placed in a cooking zone.
Left Front Zone Controls and Display- Used to set the left front cooking zone
43 power levels.
Left Rear Zone Controls and Display- Used to set the left rear cooking zone
44
power levels.
Right Front Zone Controls and Display- Used to set the right front cooking zone
45 power levels.
Right Rear Zone Controls and Display- Used to set the right rear cooking zone
46 power levels.
