Electrolux EWFLS70J - Installed Washer Dimensions

6
Installation Requirements
38.00”
(96.52cm)
53.00”
(134.62cm)
50.6” (128.53cm)*
to clear open door
31.50” (80.01cm)*
to front of closed door
water supply
connection
on rear of unit ¹
drain hose
on rear of unit ²
power
cord
on rear
of unit ³
freestand washer
on floor
floor line
floor line
washer mounted on
optional pedestal
27.00”
(68.58cm)
* To obtain these minimal depth dimensions, dryer must either be vented straight back or with a quick-turn 90° elbow.
Connection of water inlet hose on Steam Models adds 3/4 in. (2 cm) to installation depth.
¹ Hot and cold inlet hose length approximately 48.5 inches (123cm)
² Drain hose length approximately 59 inches (150cm).
³ Power supply cord length approximately 60 inches (152.5cm).

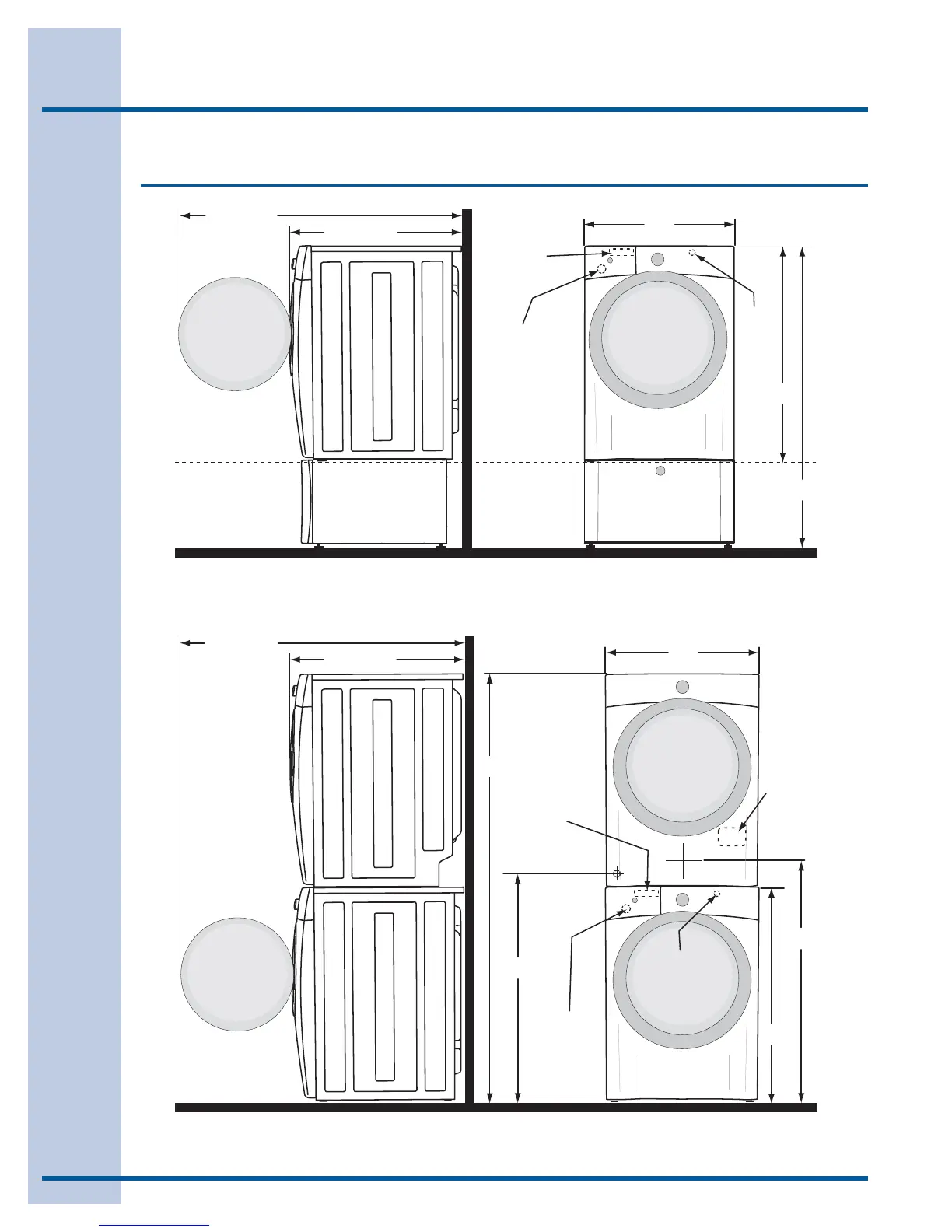

Installed washer dimensions
75.75”
(192.5cm)
41.00”
(105cm)
39.00”
(99cm)
gas supply
pipe on rear
of gas unit
50.6” (128.5cm)*
to clear open door
31.50” (80cm)*
to front of closed door
centerline
height for
rear vent
* To obtain these minimal depth dimensions, dryer must either be vented straight back or with a quick-turn 90° elbow.
Connection of water inlet hose on Steam Models adds 3/4 in. (2 cm) to installation depth.
¹ Hot and cold inlet hose length approximately 48.5 inches (123cm)
² Drain hose length approximately 59 inches (150cm).
³ Power supply cord length approximately 60 inches (152.5cm).
electrical
supply on
rear of
dryer
27.00”
(68.5cm)
38.00”
(96.5cm)
water supply
connection
on rear of
washer ¹
drain hose
on rear of
washer ²
power cord
on rear of
washer ³
