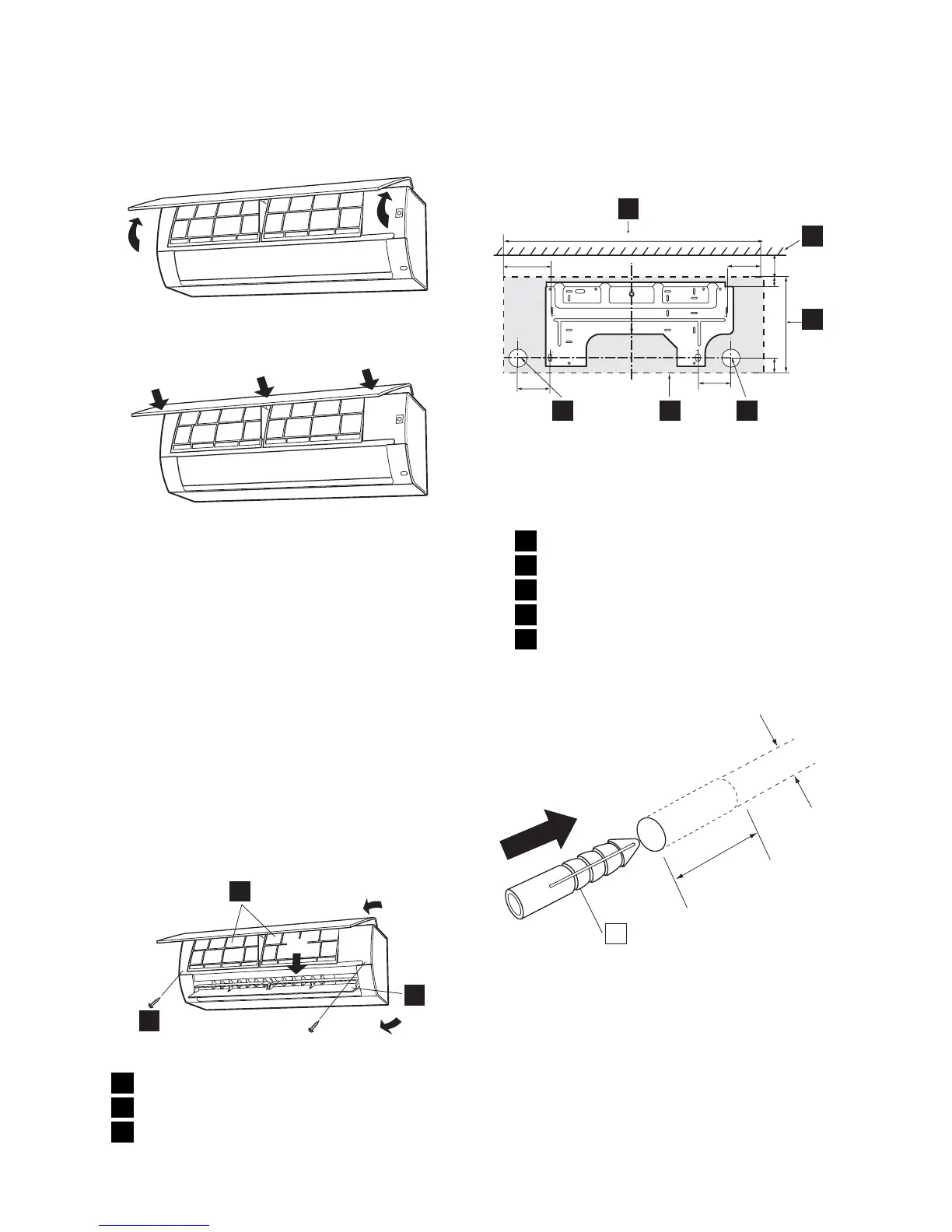

Opening/closing open panel
To open, hold the left and right bottom cor-
ners of the panel and lift it up.
To close, press-fit the arrow-marked points.
Detaching the front panel
For servicing, for example, detach the front
panel in the following steps. Be sure to dis-
connect the power cord from the wall outlet
or turn off the circuit breaker.
1. Remove the air filter.
2. Unscrew the 2 screws of the front panel.
3. Open the vertical adjustment louver by
hand.
4. Remove the front panel.
– Slightly open the lower part of the front
panel, and extract the 5 hooks along
the upper surface for disassembly.
5. To set the panel back into position,
press-fit it at the bottom first and then
press its top.
1
2
3
1
2
3
4
1 Screw
2 Vertical adjustment louver
3 Air filter
Placing the mounting plate and making
a tube hole
Important! Fix the mounting plate
horizontally.
872
108
A
131
J
181
115
I
F
E
D
J
E
A
F
I
D
292
45
30
1 2 3
4
5
5
1. Referring to the figure above, mark the
location for the wall plugs and the tube
hole.
Length unit: mm
1 Center of wall hole: Leftward piping.
2 Outline of indoor unit
3 Center of wall hole: Backward piping
4 Ceiling
5 unit size
2. Drill diameter 6.5mm, depth 32mm holes
and fit the wall plug.
32 mm
6,5 mm
2
3. Secure mounting plate and check the
stiffness. Refer to figure at right for fixing
hole locations on mounting plate. Fix
mounting plate to wall at 7 points. Rec-
ommended fixing holes are marked in
circle around the hole.
