1 Taping

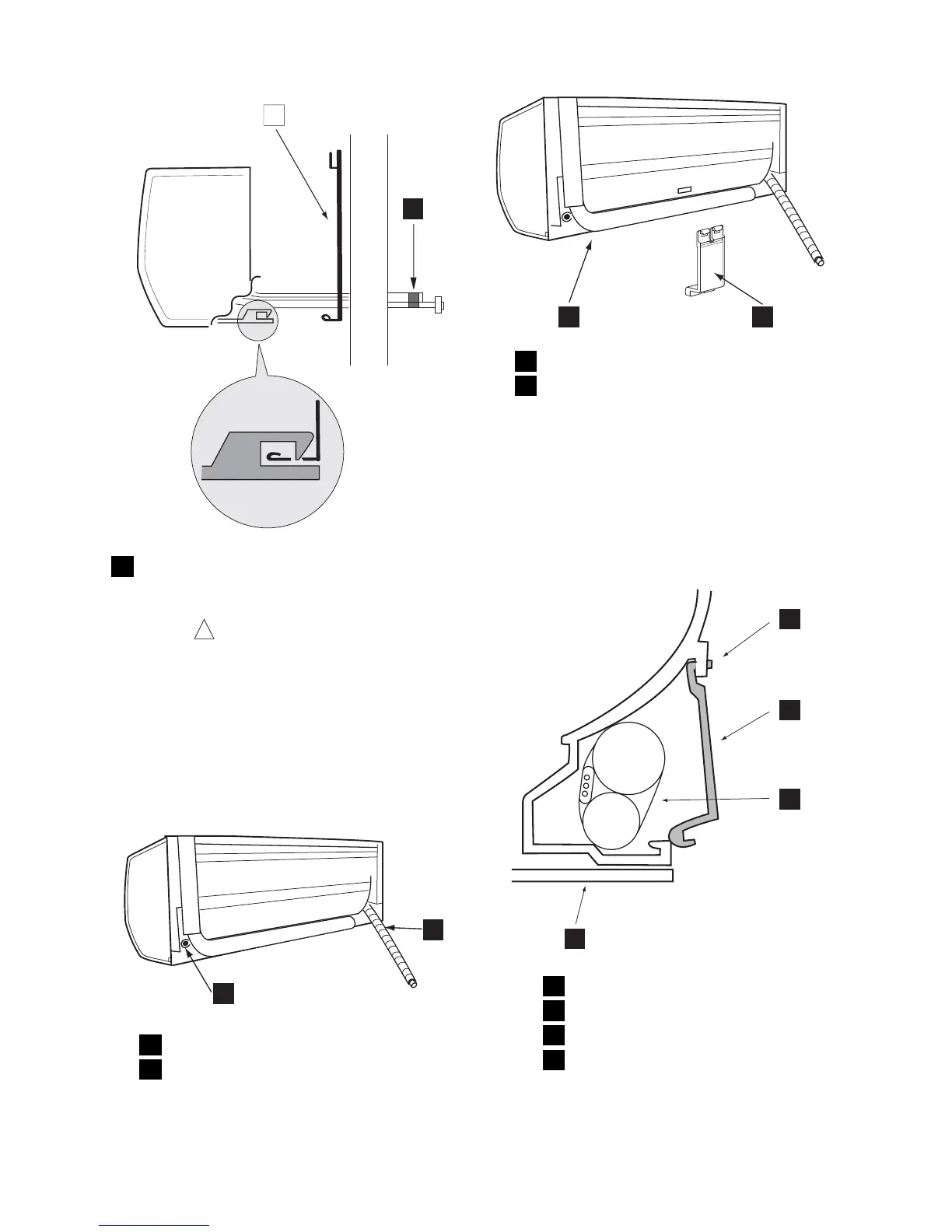

Detaching the unit from the mounting
plate
Push the “
“ marks at the bottom of the in-
door unit and pull the bottom of the unit.
When the hooks are released from the
mounting plate, support the bottom of the
unit and lift the unit upwards.
Horizontal Piping
1. Reverse the positions of the drain hose
and drain cap. Refer to Notes on drain
hose.
1
2
1 Drain cap
2 Drain hose
2. Connect the pipes and coil tape around
the pipes and electrical cable.
21
1 Unit
2 Piping holder
3. Store the pipes within the back cavity of
the unit, and secure the pipes by attach-
ing the piping holder. (Refer to steps a)
and b) as shown below.)
a) Insert the top of the piping holder into
the square opening.
1
2
3
4
1 Unit
2 Tape
3 Piping holder
4 Insert
b) Hook the bottom of piping holder to
the unit.
electrolux 7
