2
13

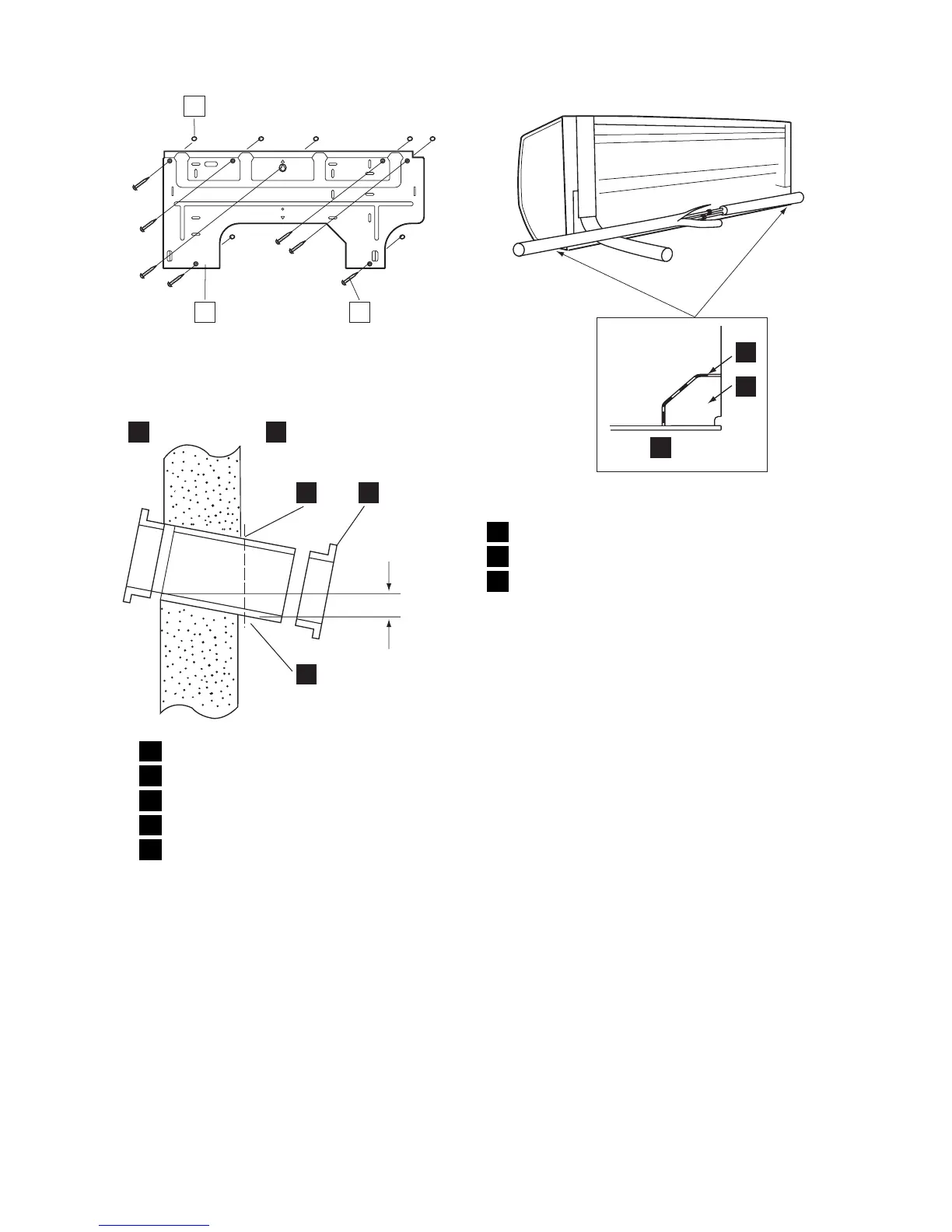

4. Drill a piping hole with 70mm diameter
concrete drill or a hole saw with a 5mm
down ward slant to the outside.
5 mm
1 2
3
5
4
1 Indoor
2 Outdoor
3 Cut with a saw
4 Cap (Downward to outdoor)
5 Sleeve
5. Set the sleeve and caps.
Setting up the indoor unit
Piping route
For directions 1 and 3, cut out the specific
zone without leaving any sharp edge.
(Keep the cut-out plate for possible future
use.)
1
2
3
1
3
2
1 Cut the plate along notch
2 Cut-out
3 Notch
Mounting the indoor unit
If the wall is 250 mm or thicker, connect the
pipes first.
1. For rear exit piping, pass the auxiliary pipe
and the drain hose through the piping
hole, and hook the unit onto the mounting
plate.
2. Push the unit and apply the bottom hook-
ing points to the mounting plate's sup-
port. (Take this step after cabling be-
tween the indoor and outdoor units.)
3. Pull the bottom of the unit to check that
the unit is fixed in place.
6 electrolux
