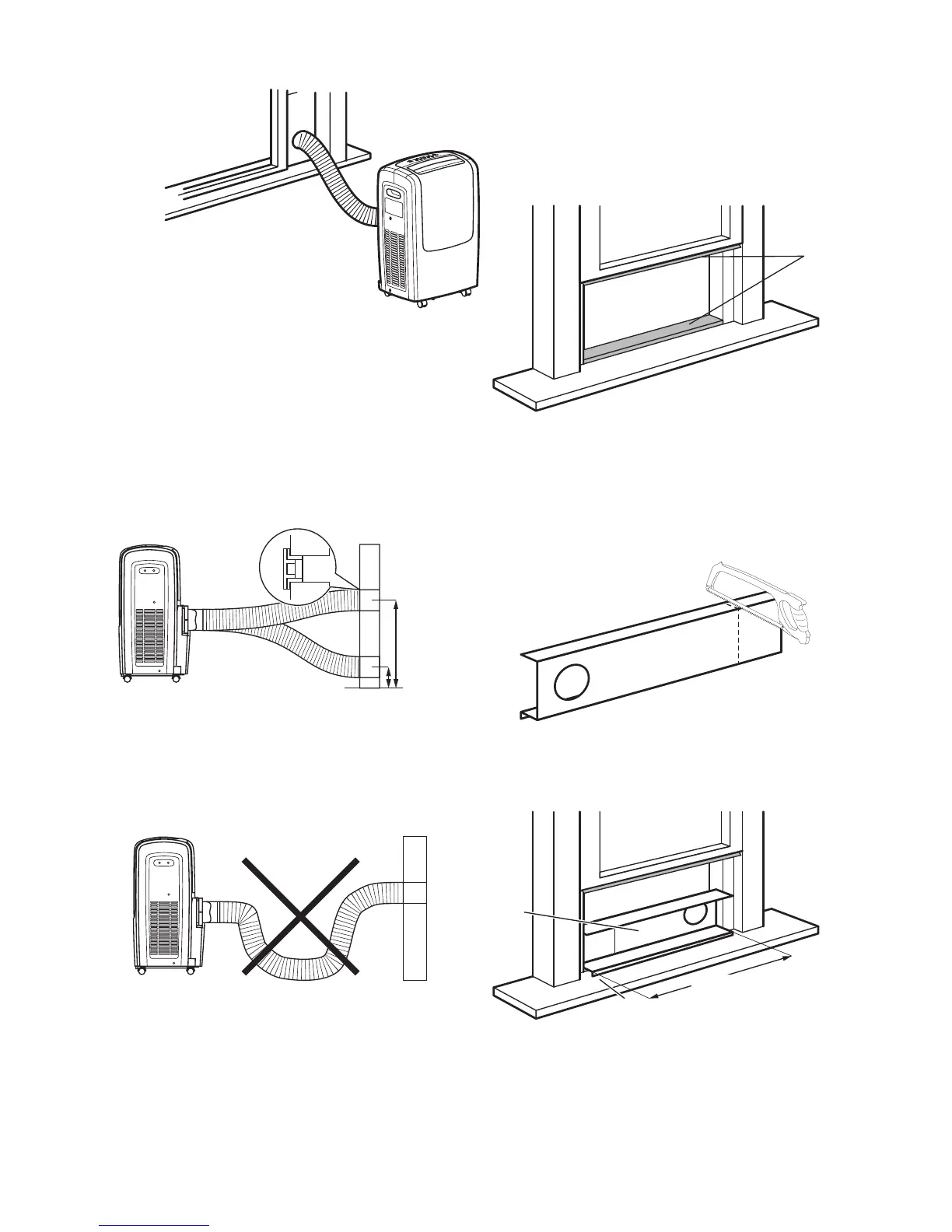

WALL DISCHARGE
Mount wall adaptor directly over correctly
installed duct to outside. (This usually in-
cludes aluminium wall ducting and an out-
side cover. See your hardware specialist for
correct installation.)
Use wall pluges and screws to secure. At-
tach hose duct to wall adaptor.
max 48”
min 12”
The hose can be extended from its original
length of 38,1 cm up to 139,7 cm, but it is
the best to keep the length to minimum re-
quired. Also make sure that the hose does
not have any sharp bends or sags.
INSTALLATION IN A DOUBLE-HUNG
SASH WINDOW
1. Cut the foam seals - adhesive type (A)
to the proper lengths and attach them
to the window and stool.
A
2. Attach the window slider kit to the win-
dow stool. Adjust the length of the win-
dow slider kit according to the width of
window. Cut the adjustable window
slider kit if the width of window is less
than 67,5 cm.
3. Open the window sash and place the
window slider kit (B) on the window
stool (C).
675-1230
B
C
electrolux 7
