Service
Manual
9406
Control transrormer
On the primary side of the control transformer there
are four terminals for 208, 220, 240 and 480 volt, and
a neutral terminal. There are two secondary windings,
one of which has a centre tap. The secondary
voltages are 11-14 volt and 2 x 12-16 volt. The

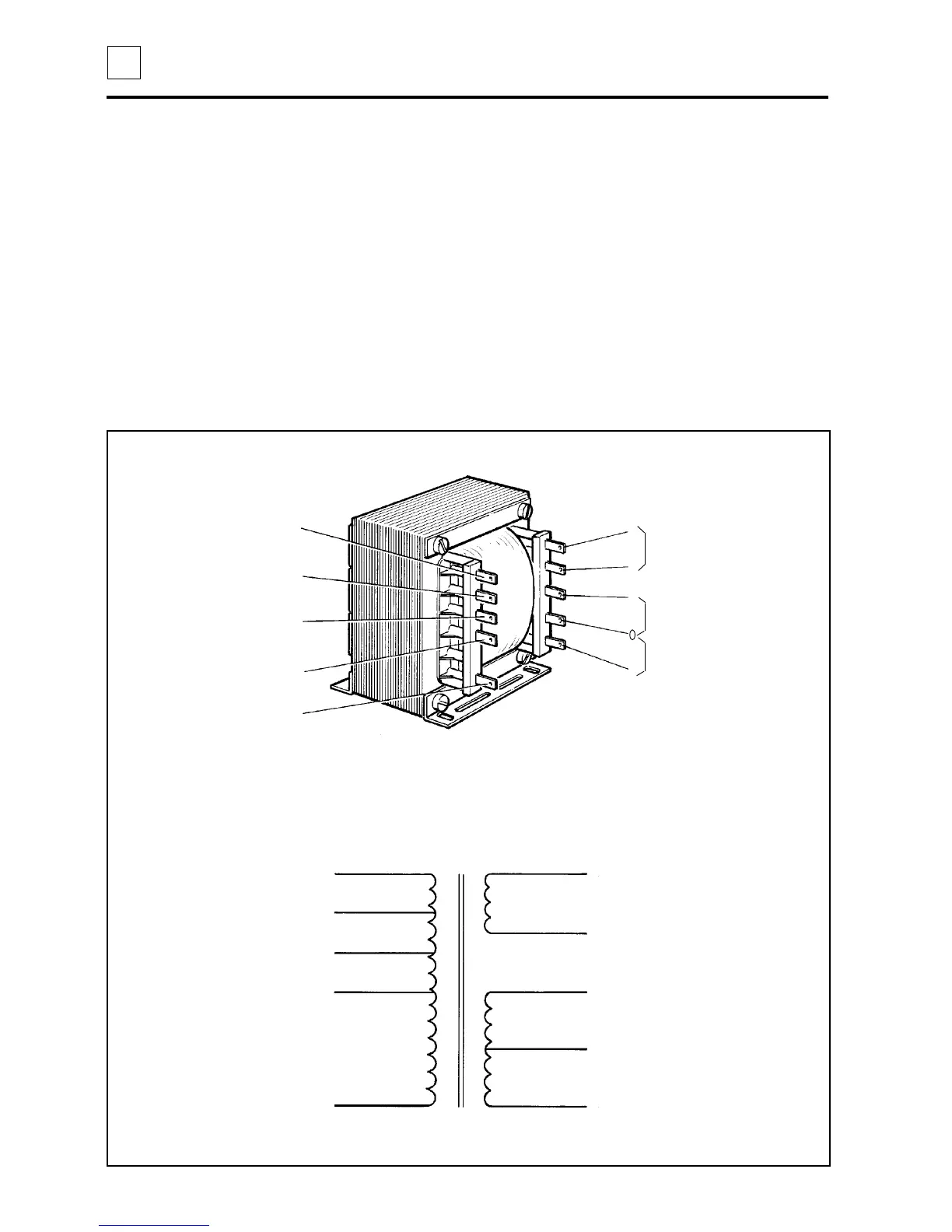

diagram of the transformer is given below. On the
secondary side there are references to the second
board terminal numbers for the control voltages.
23
6
1105
12-16 V
12-16 V
11-14 V
0 V
208 V
220 V
240 V
X5/4
480 V
11-14 V
X5/5
X5/3
X5/1
X5/2
12-16 V
0
12-16 V
480 V
240 V
220 V
208 V
0 V
23. Programmer
