6. Maintenance
Check of the detaching cords or pressure roller

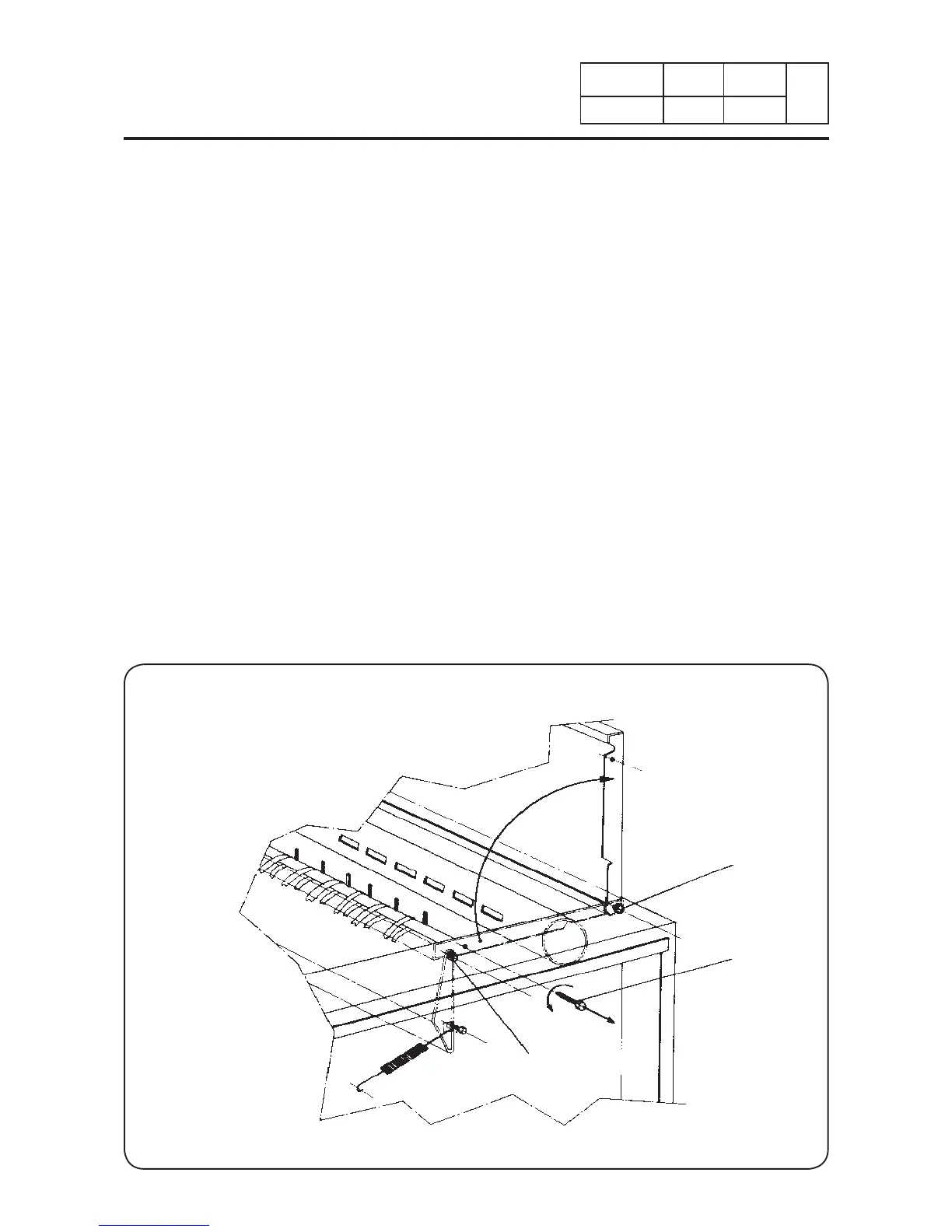

It is necessary to lift up the upper casing of the machine.
Proceed as follows :
Stop the machine.
Dismantle the side casing with the key.
Do not touch the screws (A) which serve as a link with the casing, a screw in each
caisson.
Unscrew and remove the scews (B). Careful : do not touch the screws (C) which are
used for the joint of the fi nger protection device.
Now you can lift up the upper casing in order to access to the detaching cords.
After the intervention, hinge the upper casing down, reset and tighten the screws, then reas-
semble the side casings.
•
•
•
•
