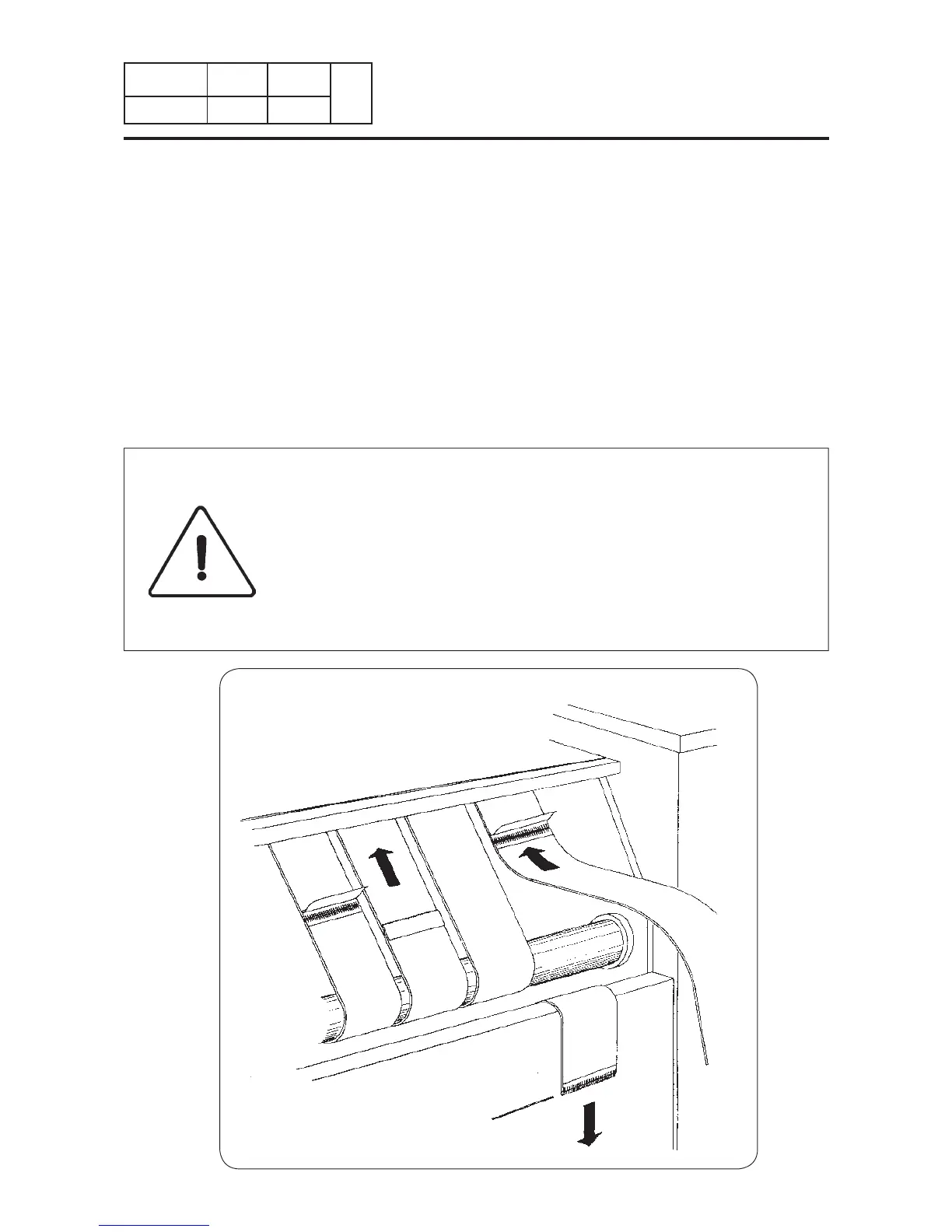

Replacing ironing bands
• Remove the feed tray to obtain easy access to the ironing bands.
• Remove staples from the two ends of the bands to be replaced and staple the end of the
old band with the end of the new band.
• Rotate the cylinder using the handle.
• Unstaple the ends of the old and the new band, and staple the two ends of the new band
together.
• Do the same for the other bands.
• Replace the feed tray.
CAUTION
The tension of the ironing bands was adjusted in the factory with the
machine hot.
Never retension the bands.
Their tension must be as low as possible (just enough to drive them)
since excessive tension will cause fast wear of these bands.
Remember these comments if you need to make an adjustment or a
replacement.
