CCoommppoonneenntt TTeeaarrddoowwnn
4-17
GGrriinnddeerr AAsssseemmbbllyy BBrreeaakkddoowwnn
To remove the components of the grinder assembly
(See Figure 4-36):
1. Follow steps 1-6 above.
2. Turn the blade support counterclockwise and
remove from grinder assembly.
3. Using a flat-bladed screwdriver, extract screws
securing the top grinder blade to underside of the
blade support.
4. Extract screws securing the lower grinder blade to
the top of lower blade support.
5. Using an 11mm socket, extract the left hand thread
brass nut from lower blade support. A small tool,
such as a flat-bladed screwdriver will be needed to
stop the motor shaft from turning while extracting
the brass nut. Slide the lower blade support off
motor shaft.
6. Using a 2.5mm allen head wrench extract screw
securing the coffee slide to grinder assembly.
7. Using a phillips head screwdriver, extract the
screws securing grinder motor to grinder mounting
bracket.

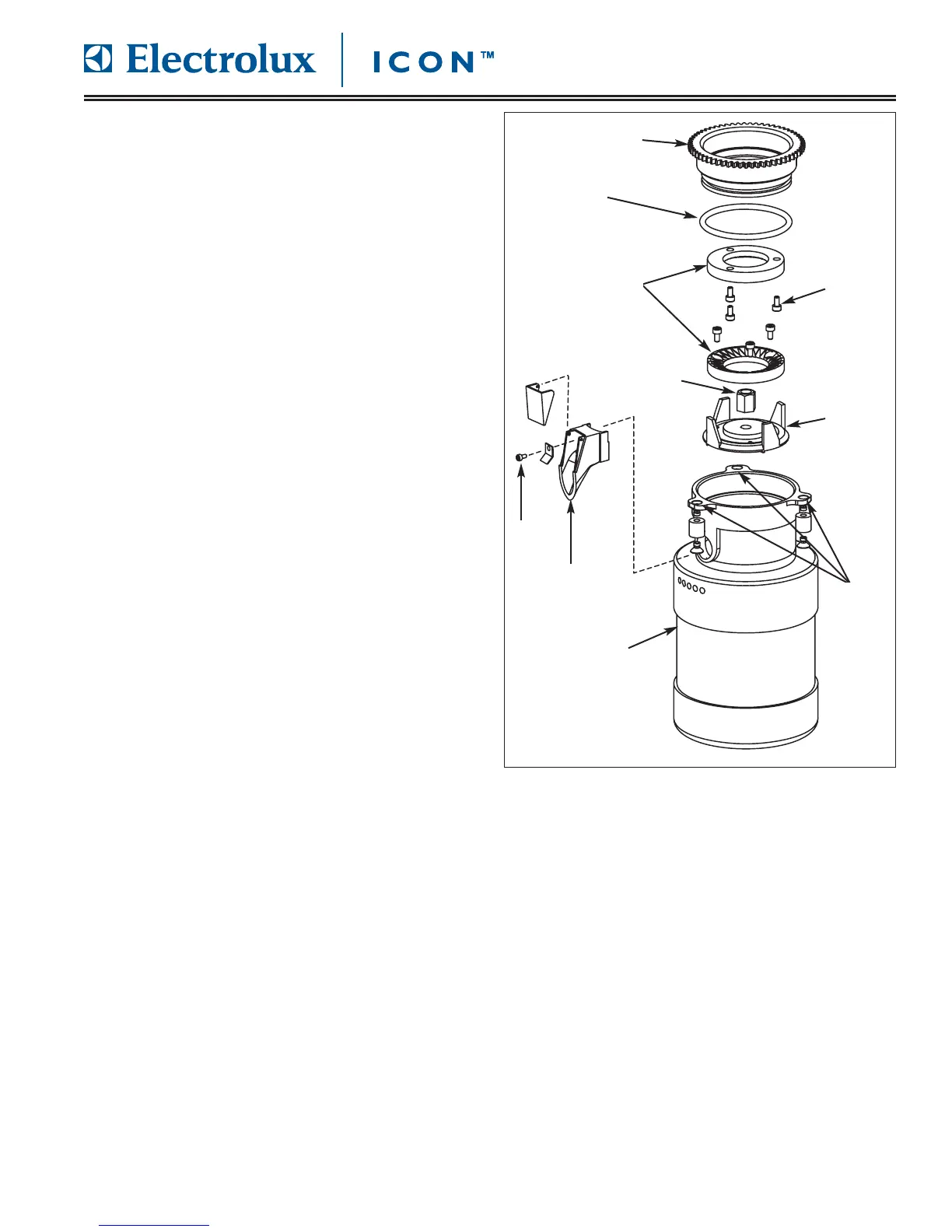

FFiigguurree 44--3366.. GGrriinnddeerr AAsssseemmbbllyy BBrreeaakkddoowwnn
Blade Support
O-ring
Brass Nut
Lower
Blade
Support
Screw
Screws
3 per
Grinder
Blade
Coffee
Slide
Grinder Motor
Grinder Blade
Mounting
Bracket
Screws
To Next Page
