Hydraulic Installation
The hose is provided with a filter that
prevents the entry of dirt that may come
through the water supply lines.
Do not connect the hot water hose (hot
water label) to the cold water faucet of
your residence.
IMPORTANT
Drain hose

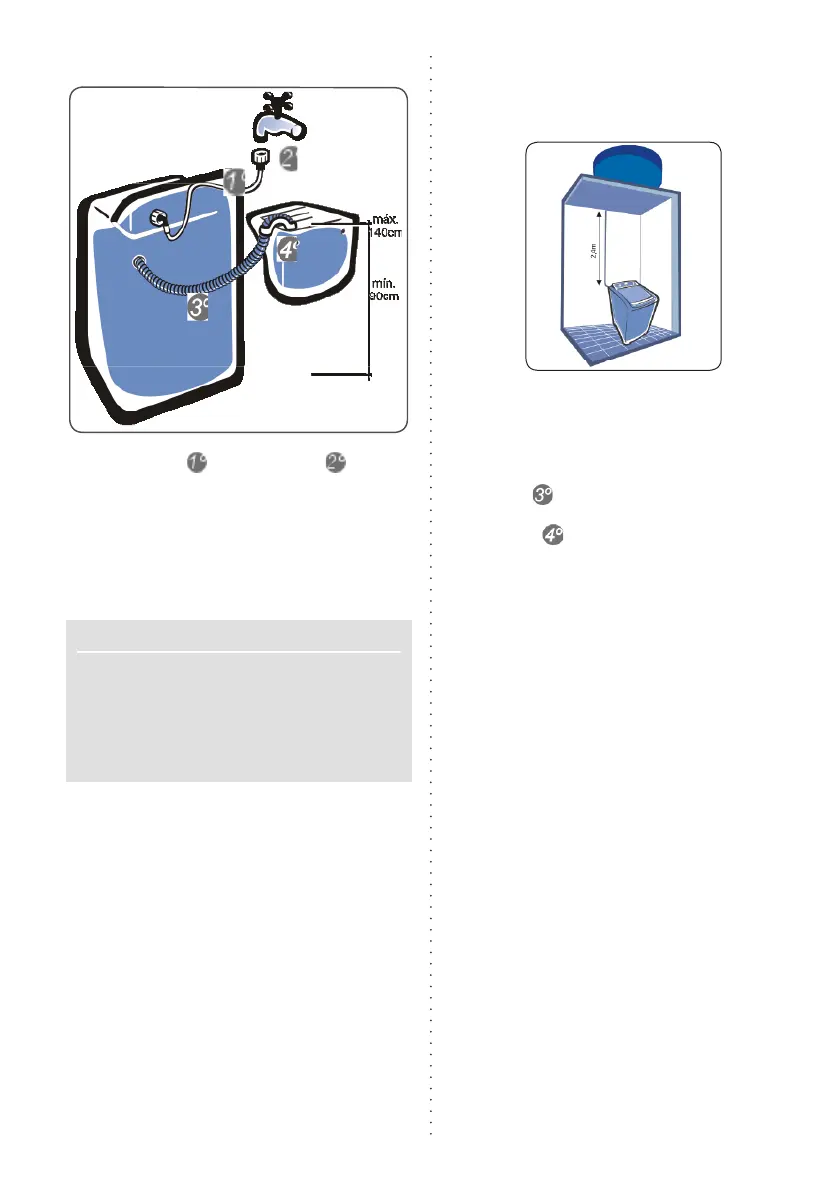

Place the hose in the drain outlet or at the edge of the
laundry sink with a maximum height of 140 cm
and a minimum of 90 cm for the better operation of
your product.
Place the hose in the tube in a maximum height of 20
cm in the drain outlet.
When putting the hose on the edge of the laundry sink,
make sure the hose end is not submerged in the water
tank, because the water can return to the inside of the
washing machine
.
Never attach the drain hose to another hose
to increase the length. It may damage the
internal system of water outlet.
In some locations it is possible the water supplied is
dirty. In this case, install a lter in the faucet to avoid
stains on clothes.
This lter can be bought at the Electrolux Service Center.
Water Inlet hose
Attach the end of the hose that comes loose on the
faucet, so that it is fully threaded.
Open the faucet and check for leaks.
It is required to use a faucet at a water inlet with
thread 3/4”.
The use of low quality faucet will damage the hose
of your washing machine causing water leakages.
Water pressure
To ensure a proper lling pressure, there must be a
minimum height of 2.4 m between the base of the
waterbox and the washing machine inlet.
Note: The inlet water pressure should be between
0.02 and 0.8 MPa. If the pressure is higher, use a
pressure reducer. Do not use hot water with tem-
perature higher than 50 °C.
