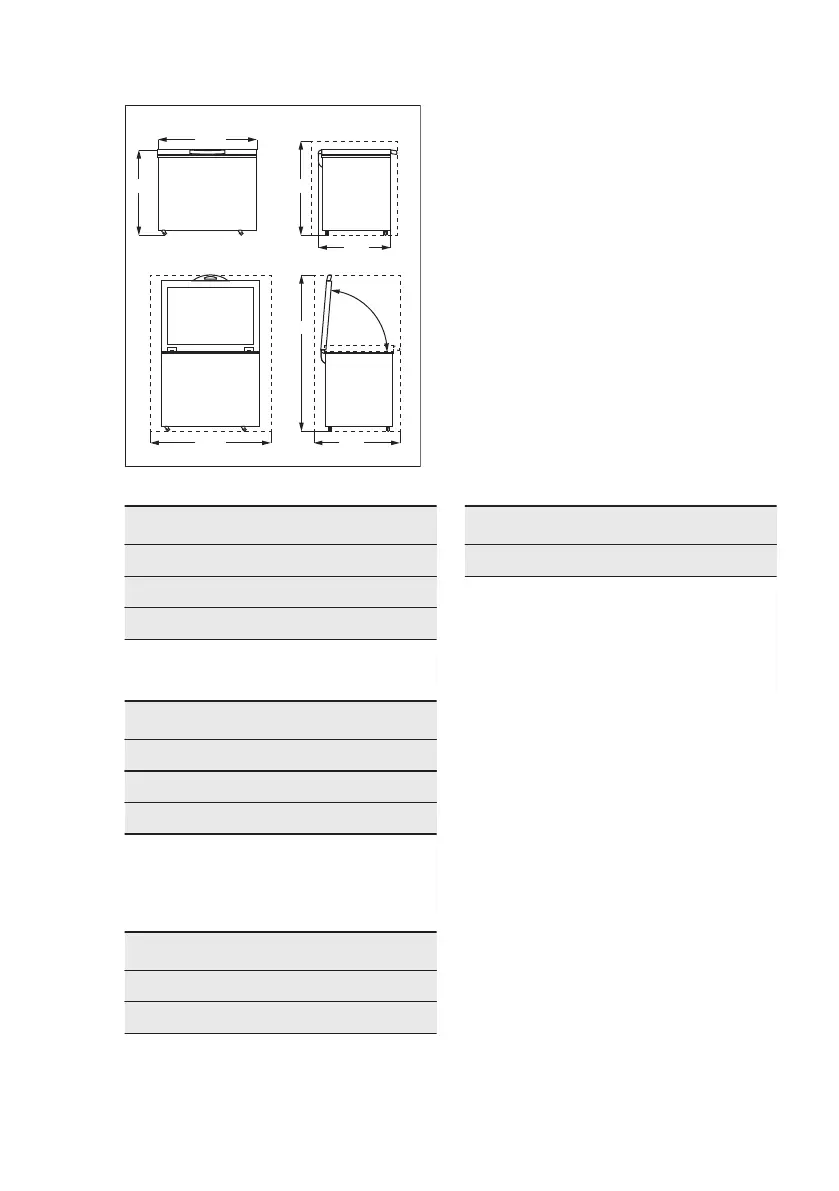

3.1 Dimensions
H1 H2
85°
W2 D2
D1
H3
W1
Overall dimensions
1)
H1 mm 845
W1 mm 905
D1 mm 545
1)
the width, height and depth of the appli‐
ance without the handle and feet
Space required in use
1)
H2 mm 945
W2 mm 1105
D2 mm 710
1)
the height, width and depth of the appli‐
ance including the handle, plus the space
necessary for free circulation of the cooling
air
Overall space required in use
1)
H3 mm 1397
W2 mm 1105
Overall space required in use
1)
D2 mm 710
1)
the height, width and depth of the appli‐
ance including the handle, plus the space
necessary for free circulation of the cooling
air, plus the space necessary to allow door
opening to the minimum angle permitting
removal of all internal equipment
3.2 Location
The appliance should be installed well
away from any sources of heat, such as
radiators, boilers, direct sunlight, etc.
• Place the appliance in a horizontal
position on a solid surface.
• Make sure that the appliance stands
level.
This can be achieved by two
adjustable feet at the bottom on the
left side of the appliance. Unscrew the
feet anticlockwise to set them higher.
• To achieve the best performance, do
not place the appliance below
overhanging wall units.
• Make sure the air can circulate freely
around the appliance.
If, due to different installation, proper
ventilation requirements are not
respected, the appliance will function
