3. INSTALLATION
WARNING!
Refer to Safety chapters.
3.1 Before the installation
Before you install the hob, write down the
information below from the rating plate. The
rating plate is on the bottom of the hob.
Model .......................................
PNC .........................................
Serial number ...........................
3.2 Built-in hobs
Only use the built-in hobs after you assemble
the hob into correct built-in units and work
surfaces that align to the standards.
3.3 Connection cable
• The hob is supplied with a connection
cable.
• To replace the damaged mains cable, use
the cable type: H05V2V2-F which
withstands a temperature of 90 °C or
higher. Speak to your local Service
Centre.
3.4 Attaching the seal - On-top
installation
1. Clean the worktop around the cut out
area.
2. Attach the supplied 2x6mm seal stripe to
the lower edge of the hob, along the
outer edge of the glass ceramic. Do not
stretch it. Make sure that the ends of the
seal stripe are located in the middle of
one side of the hob.
3. Add some millimetres to the length when
you cut the seal stripe.
4. Join the two ends of the seal stripe
together.

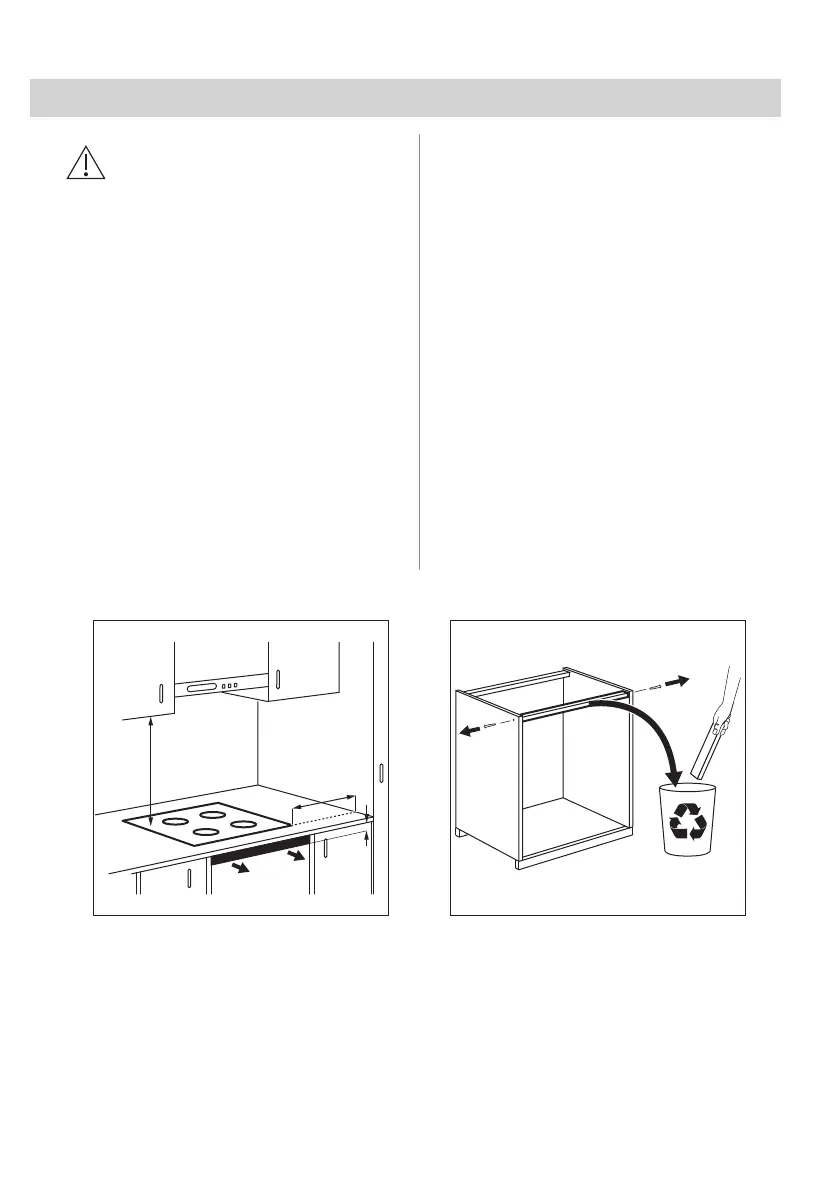

3.5 Assembly
min.
50mm
min.
500mm
min.
2mm
ENGLISH 7

Electrolux LIT30230C Specifications

General

Built-in hood	No
Hob type	Zone induction hob
Frame type	Frameless
Product color	Black
Hob width size	29 cm
Top surface type	Tempered glass
Appliance placement	Built-in
Cooking zone 1 shape	Round
Cooking zone 3 boost	2500 W
Cooking zone 3 power	1400 W
Cooking zone 4 boost	3600 W
Cooking zone 4 power	2300 W
Cooking zone 3 diameter	145 mm
Cooking zone 3 position	Central rear
Cooking zone 4 diameter	210 mm
Cooking zone 4 position	Central front
Number of cooking zones	2 zone(s)
Cooking zone 1 power source	Electric
Number of gas cooking zones	0 zone(s)
Number of simultaneously used cooking zones	2
On/off switch	Yes
AC input voltage	220-240 V
AC input frequency	50-60 Hz
Connected load (gas)	- W
Connected load (electric)	3650 W
Timer type	Digital
Control type	Touch
Control position	Top front
Certification	CE

Weight and Dimensions

Depth	520 mm
Width	290 mm
Height	44 mm
Weight	5700 g
Cord length	1.1 m
Installation compartment depth	490 mm
Installation compartment width	270 mm
