Electrolux LIT604 User Manual

• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
3. INSTALLATION
WARNING!
Refer to Safety chapters.
3.1 Before the installation
Before you install the hob, write down the
information below from the rating plate. The
rating plate is on the bottom of the hob.
Serial number ...........................
3.2 Built-in hobs
Only use the built-in hobs after you assemble
the hob into correct built-in units and work
surfaces that align to the standards.
3.3 Connection cable
• For a single phase or two phase
connection, use the cable type: H03V2V2-
F or H05BB-F which withstands a
temperature of 90 °C or higher.
• To replace the damaged mains cable, use
the cable: H03V2V2-F or H05BB-F which
withstands a temperature of 90 °C or
higher. Contact an Authorised Service
Centre. The connection cable may only be
replaced by a qualified electrician.

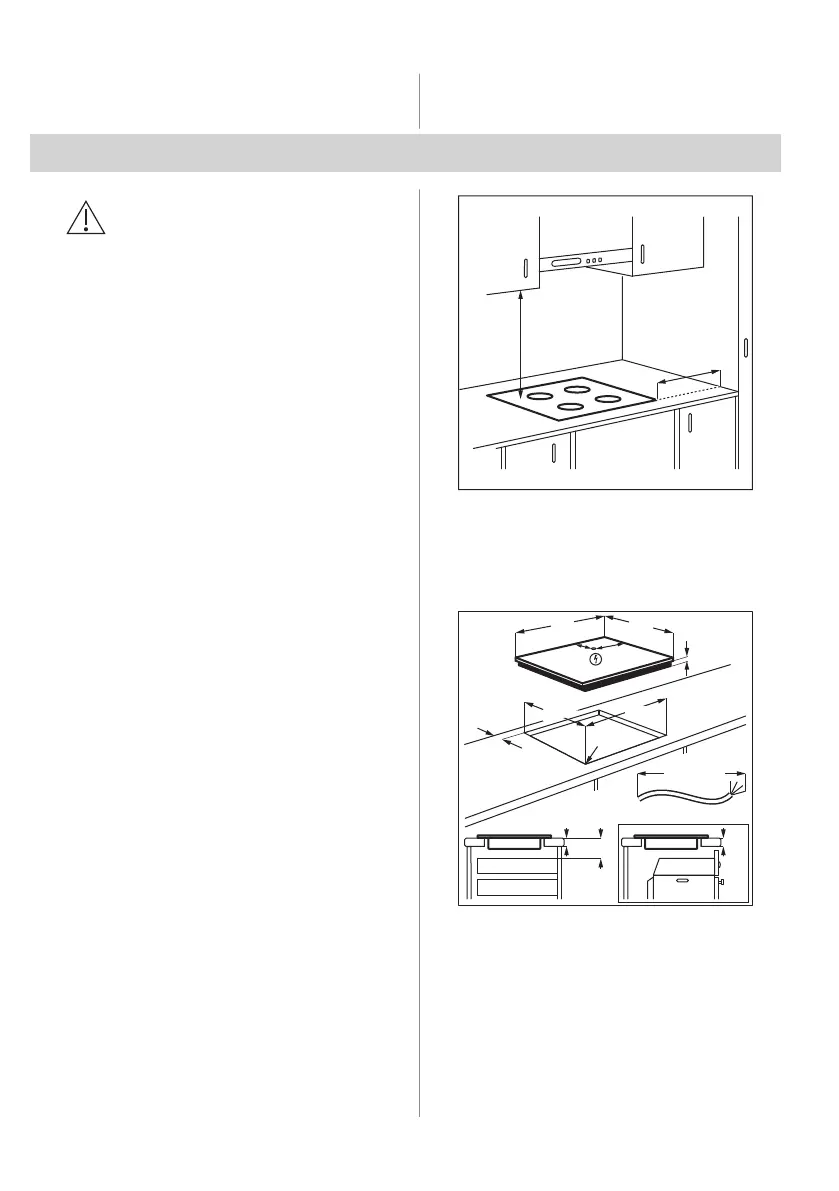

3.4 Assembly
If you install the hob under a hood, please
see the installation instructions of the hood
for the minimum distance between the
appliances.
min.
50mm
min.
500mm
If the appliance is installed above a drawer,
the hob ventilation can warm up the items
stored in the drawer during the cooking
process.
Combination with standard oven
max. R5
520
44
min. 55
590
490
+1
560
+1
260
60
min.
12
min.
55
min.
28
min. 1500
ENGLISH 7
