air, plus the space necessary to allow door
opening to the minimum angle permitting
removal of all internal equipment
3.2 Location
To ensure appliance's best functionality, you
should not install the appliance in a place with
direct sunlight. Do not install the appliance
close to radiators or cookers, ovens, or hobs,
unless otherwise specified in the installation
instructions.
Make sure that air can circulate freely around
the back of the cabinet.
This appliance should be installed in a dry,
well ventilated indoor position.
This appliance is intended to be used at
ambient temperature ranging from 10°C to
43°C.
The correct operation of the appliance
can only be guaranteed within the
specified temperature range.
If you have any doubts regarding where
to install the appliance, please turn to the
vendor, to our customer service or to the
nearest Authorised Service Centre.
It must be possible to disconnect the
appliance from the mains power supply.
The plug must therefore be easily
accessible after installation.
3.3 Electrical Connection
CAUTION!
Any electrical work required to install this
appliance should be carried out by a
qualified electrician or competent person.
WARNING!
This appliance must be earthed.
The manufacturer declines any liability
should these safety measures not be
observed.

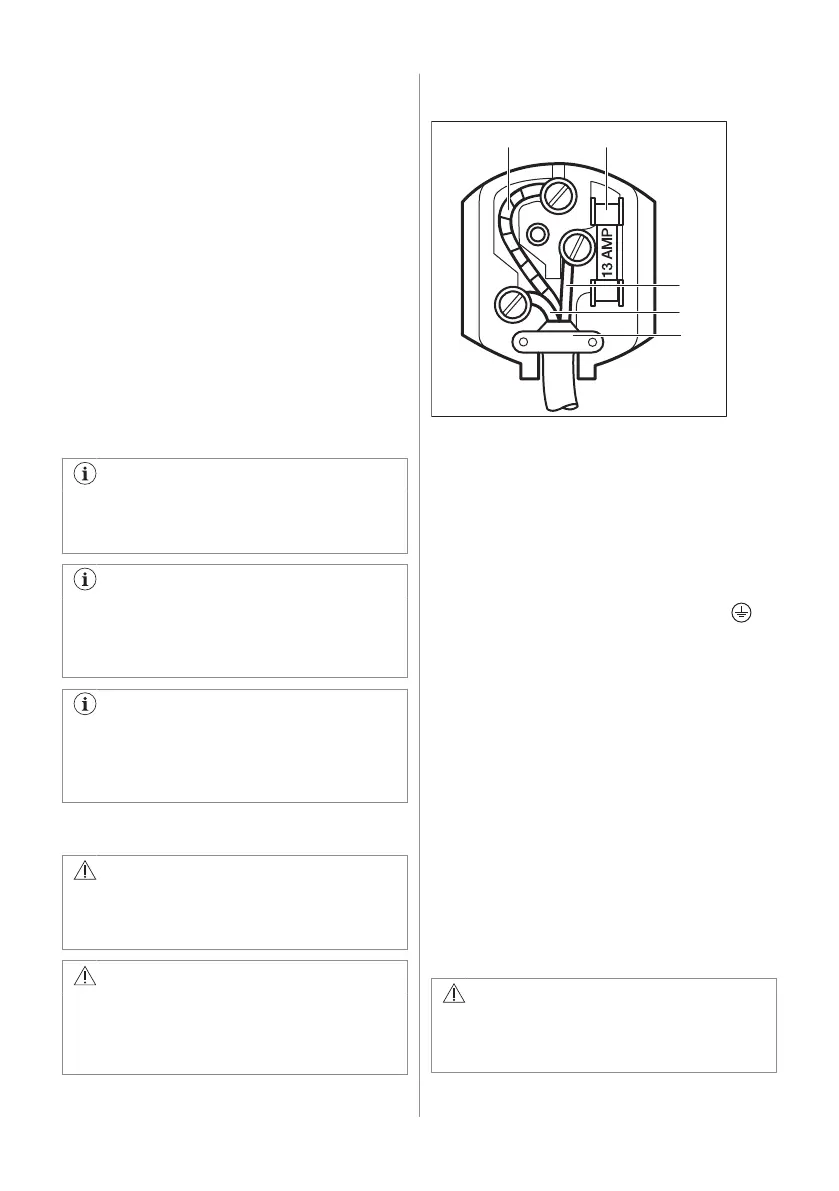

The wires in the mains lead are coloured in
accordance with the following code:
A B
C
D
E
• A - green and yellow: Earth
• C - brown: Live
• D - blue: Neutral
As the colours of the wires in the mains lead
of this appliance may not correspond with the
coloured markings identifying the terminals in
your plug, proceed as follows:
1. Connect the wire coloured green and
yellow to the terminal marked either with
the letter “E“ or by the earth symbol
or
coloured green and yellow.
2. Connect the wire coloured blue to the
terminal either marked with the letter
“N“ or coloured black.
3. Connect the wire coloured brown to the
terminal either marked with the “L“ or
coloured red.
4. Check that no cut, or stray strands of wire
is present and the cord clamp (E) is
secure over the outer sheath.
Make sure the electricity supply voltage is
the same as that indicated on the
appliance rating plate.
5. Switch on the appliance.
The appliance is supplied with a 13 amp fuse
(B). In the event of having to change the fuse
in the plug supplied, a 13 amp ASTA
approved (BS 1362) fuse must be used.
WARNING!
A cut off plug inserted into a 13 amp
socket is a serious safety (shock) hazard.
Ensure that it is disposed of safely.
8 ENGLISH

Electrolux LNS5LE18S Specifications

General

Lamp type	LED
Fridge net capacity	198 L
Humidifier function	Yes
Super Cool function	-
Fridge door balconies	4
Number of vegetable drawers	2
Fridge number of shelves/baskets	5
Cord length	2.4 m
Connected load	100 W
AC input voltage	230 - 240 V
AC input frequency	50 Hz
Energy efficiency scale	A to G
Annual energy consumption	219 kWh
Energy efficiency index (EEI)	100
Icemaker	No
Noise level	34 dB
Climate class	SN-T
Total net capacity	271 L
Minimum operating temperature	10 °C
Star rating	4*
Freezer position	Bottom-placed
Freezing capacity	3.3 kg/24h
Freezer net capacity	73 L
Freezer number of shelves/baskets	3
Storage time during power failure	- h
Door hinge	Right
Control type	Buttons
Product color	White
Shelves material	Glass
Appliance placement	Built-in
Package depth	600 mm
Package width	590 mm
Package height	1840 mm
Package weight	58000 g

Weight and Dimensions

Depth	549 mm
Width	546 mm
Height	1772 mm
Weight	56000 g
Depth with door open	1068 mm
Installation compartment depth	550 mm
Installation compartment width	560 mm
Installation compartment height	1773 mm
