Door reversal
9

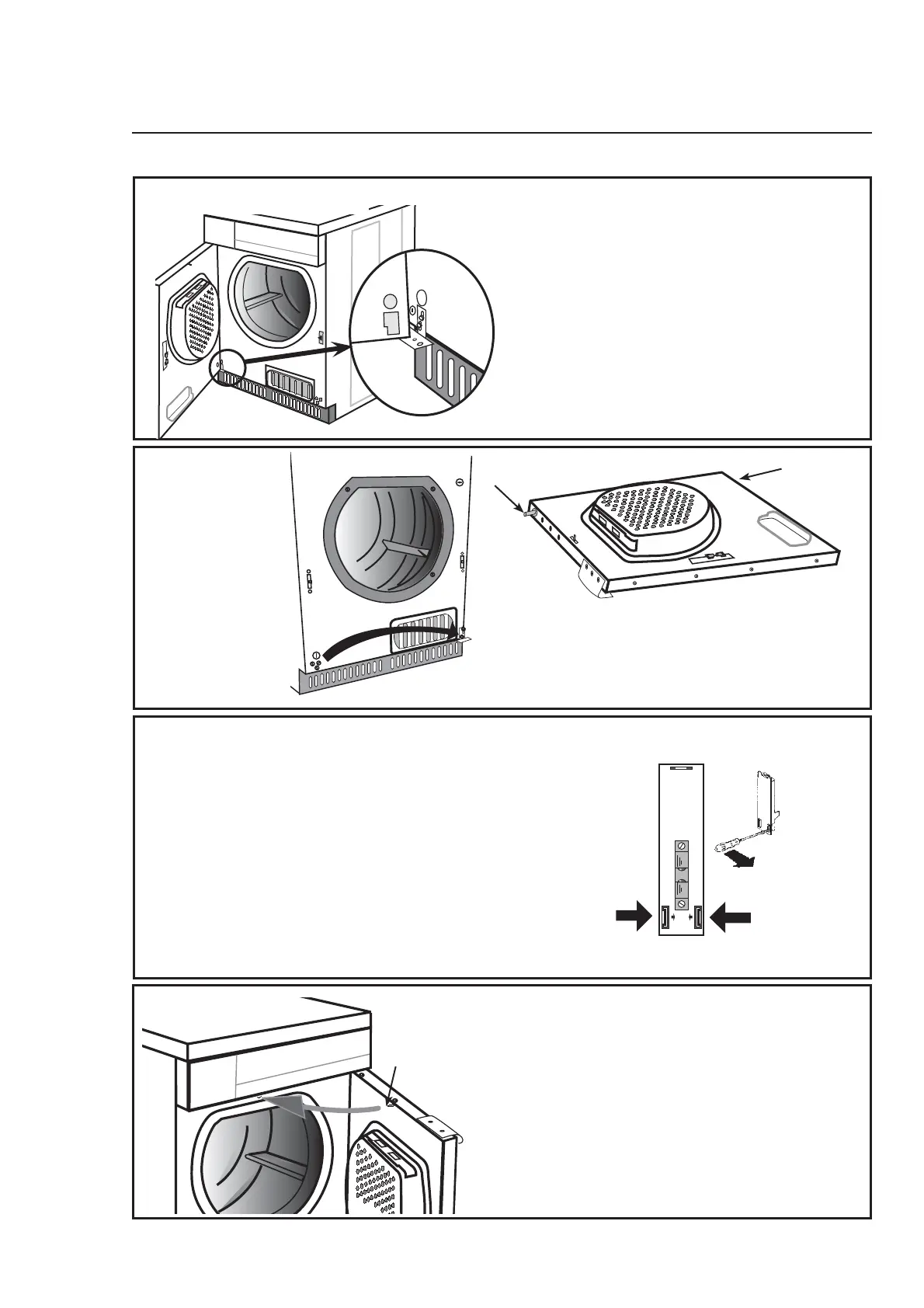

1. Disconnect the power supply to the dryer.
2. Loosen the hinge mounting and push it down to
allow the door to be lifted off. Unscrew the hinge
mounting.
NB! Hold the door securely while loosening the
screws.
12. Mount the door. Push the hinge mounting
upwards and tighten the screws.
13. Test the door (use washers to adjust the hinge if
necessary). Check that door pin (A) is aligned
with the microswitch aperture.
14. Connect the power to the dryer. Finally, check
that the dryer stops when the door is opened.
TOP
Upper pivot
TOP
Lower pivot
A
3. Unscrew the
cover screws at
the opposite
side and loosely
mount the hinge
mounting.
Screw in the
cover screws
where the hinge
was previously
mounted.
Door reversal
7. Mount the handle at the opposite side where the
plugs used to be.
8. Insert the plugs where the handle used to be.
9. Remove the bottom pivot to the other side.
10. Release the locking plates by loosening the barb
with a screwdriver.
11. Press out the locking plates, swap them over and
press into position.
4. Remove the three black plugs at the top of the
door.
5. Dismount the handle by loosening the three screws.
6. Remove the pivot at the top to the other side.
