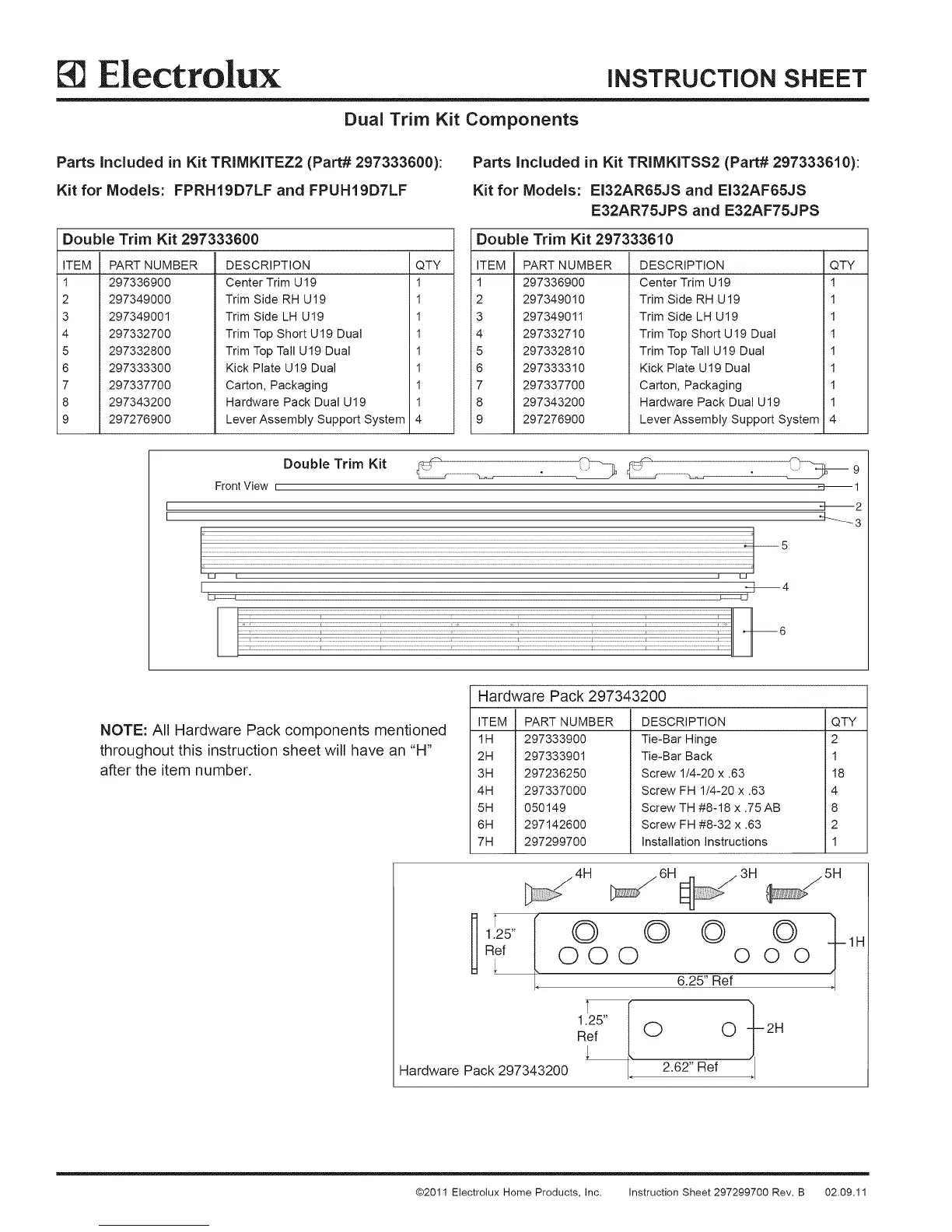

E|ectro|ux iNSTRUCTION SHEET
Dual Trim Kit Components
Parts Included in Kit TRIMKITEZ2 (Part# 297333600):
Kit for Models: FPRH19D7LF and FPUH19D7LF
Double Trim Kit 297333600
ITEM PART NUMBER
1 297336900
2 297349000
3 297349001
4 297332700
5 297332800
6 297333300
7 297337700
8 297343200
9 297276900
DESCRIPTION QTY
Center Trim U19 1
Trim Side RH U19 1
Trim Side LH U19 1
Trim Top Short U19 Dual 1
Trim Top Tall U19 Dual 1
Kick Plate U19 Dual 1
Carton, Packaging 1
Hardware Pack Dual U19 1
Lever Assembly Support System
Parts Included in Kit TRIMKITSS2 (Part# 297333610):
Kit for Models: EI32AR65JS and EI32AF65JS
E32AR75JPS and E32AF75JPS
Double Trim Kit 297333610
ITEM PART NUMBER
1 297336900
2 297349010
3 297349011
4 297332710
5 297332810
6 297333310
7 297337700
8 297343200
9 297276900
DESCRIPTION QTY
Center Trim U19 1
Trim Side RH U19 1
Trim Side LH U19 1
Trim Top Short U19 Dual 1
Trim Top Tall U19 Dual 1
Kick Plate U19 Dual 1
Carton, Packaging 1
Hardware Pack Dual U19 1
LeverAssembly Support System 4
Front View
Double Trim Kit
-tml
I
-_4
NOTE: All Hardware Pack components mentioned
throughout this instruction sheet will have an "H"
after the item number.
Hardware Pack 297343200
ITEM PART NUMBER
1H 297333900
2H 297333901
3H 297236250
4H 297337000
5H 050149
6H 297142600
7H 297299700
DESCRIPTION
Tie-Bar Hinge
Tie-Bar Back
Screw 1/4-20 x .63
Screw FH 1/4-20 x .63
Screw TH #8-18 x .75 AB
Screw FH #8-32 x .63
Installation Instructions
Ref |
Hardware Pack 297343200
6H 3H
© © ©
000 o
6.25" Ref
1.25"
Ref
QTY
2
1
18
4
8
2
1
5H
O0
0 0 ! 2H
2.62" Ref
1H
@2011 Etectrolux Home Products, Inc. Instruction Sheet 297299700 Rev. B 02.09.11
