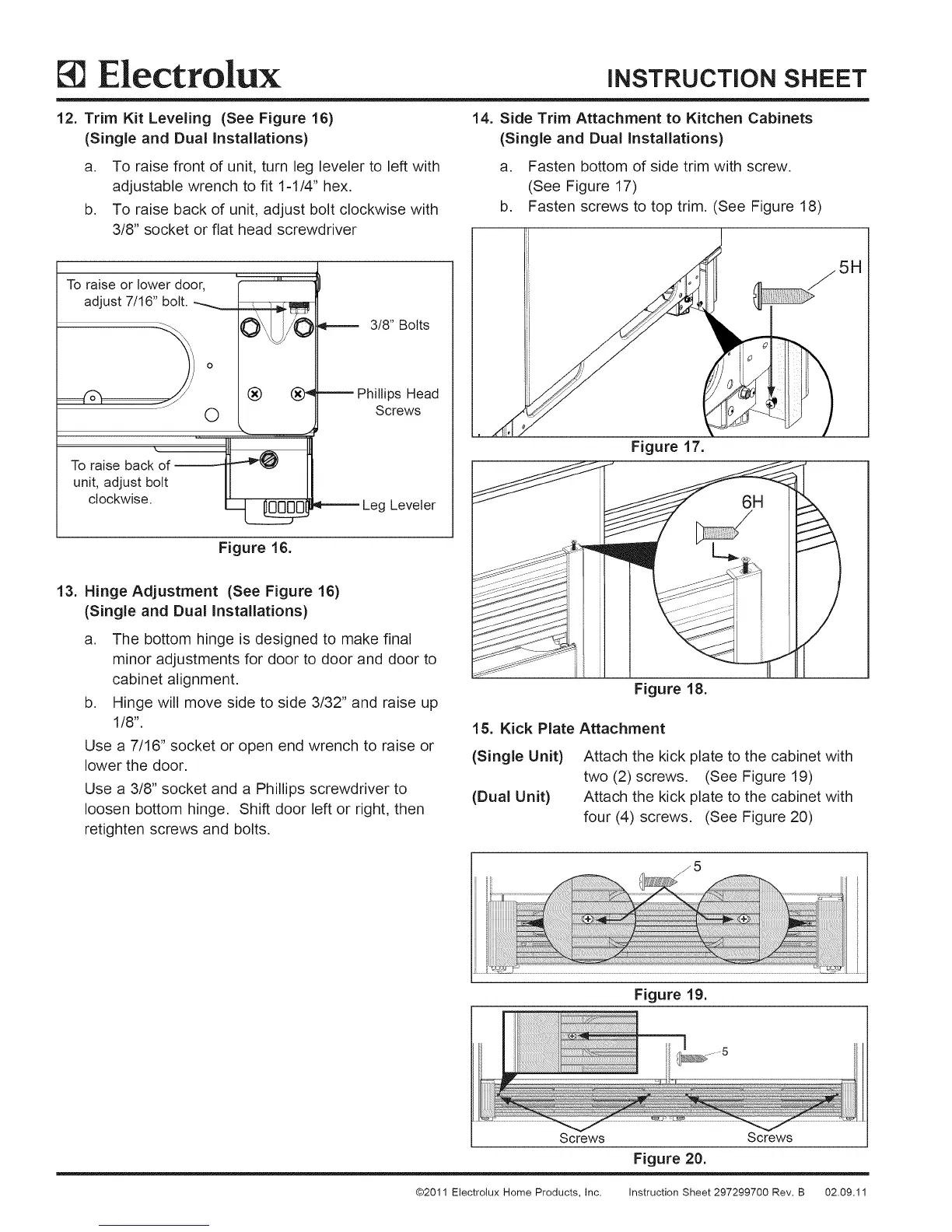

E|ectro|ux iNSTRUCTION SHEET
12. Trim Kit Leveling (See Figure 16)
(Single and Dual Installations)
a. To raise front of unit, turn leg leveler to left with
adjustable wrench to fit 1-1/4" hex.
b. To raise back of unit, adjust bolt clockwise with
3/8" socket or flat head screwdriver
14. Side Trim Attachment to Kitchen Cabinets
(Single and Dual Installations)
a. Fasten bottom of side trim with screw.
(See Figure 17)
b. Fasten screws to top trim. (See Figure 18)
i _ {11
To raise or lower door, [
adjust7/16" bolt. _ ,__}1
®
©
To raise back of _
unit, adjust bolt
clockwise.
3/8" Bolts
Phillips Head
Screws
Leg Leveler
Figure 16.
13. Hinge Adjustment (See Figure 16)
(Single and Dual Installations)
a. The bottom hinge is designed to make final
minor adjustments for door to door and door to
cabinet alignment.
b. Hinge will move side to side 3/32" and raise up
1/8".
Use a 7/16" socket or open end wrench to raise or
lower the door.
Use a 3/8" socket and a Phillips screwdriver to
loosen bottom hinge. Shift door left or right, then
retighten screws and bolts.
Figure 17.
Figure 18.
15. Kick Plate Attachment
(Single Unit)
(Dual Unit)
Attach the kick plate to the cabinet with
two (2) screws. (See Figure 19)
Attach the kick plate to the cabinet with
four (4) screws. (See Figure 20)
j5
Figure 19.
Screws Screws
Figure 20.
@2011 Etectrolux Home Products, Inc. Instruction Sheet 297299700 Rev. B 02.09.11
