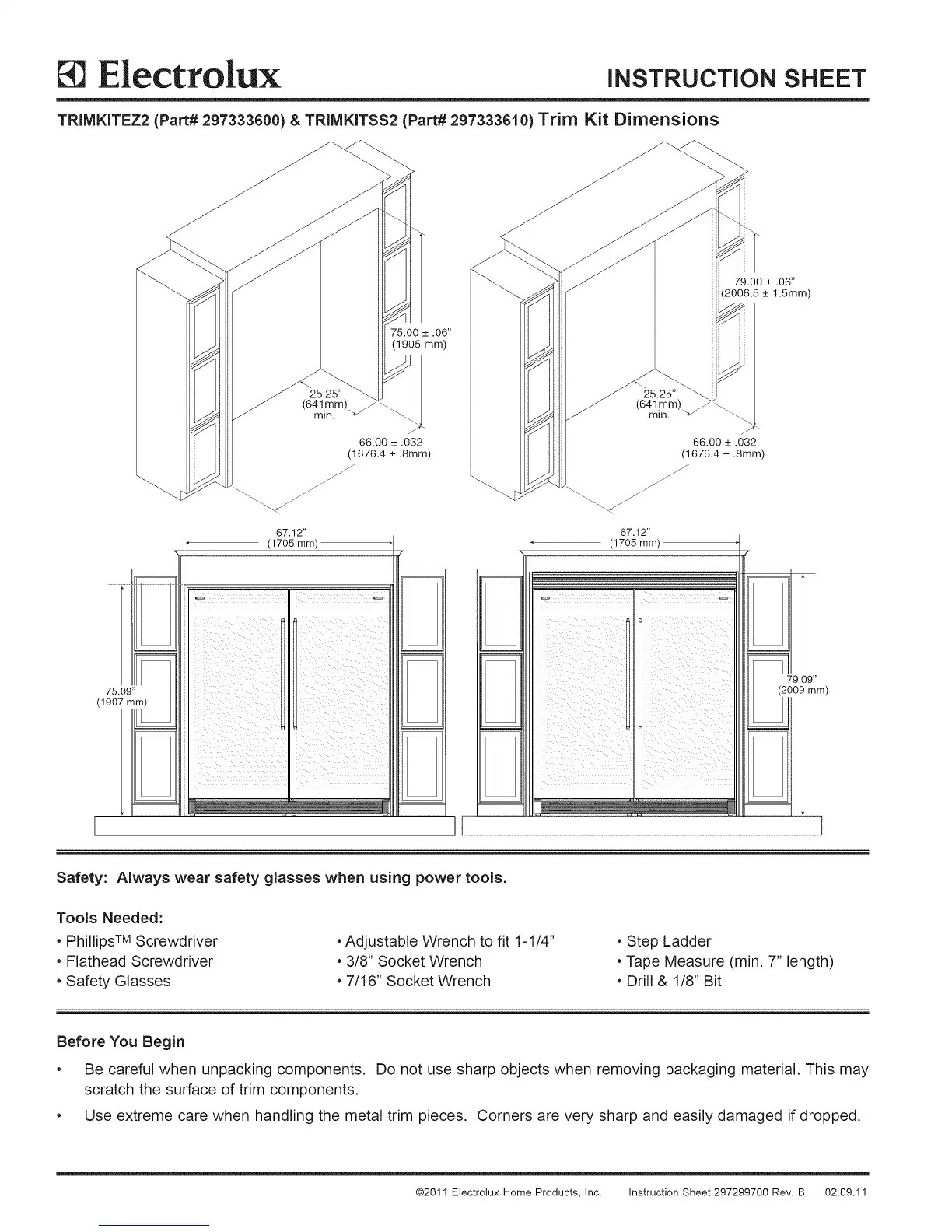

E|ectro|ux iNSTRUCTION SHEET
TRIMKITEZ2 (Part# 297333600) & TRIMKITSS2 (Part# 297333610)Trim Kit Dimensions
79.00 _4-.06"
_+1.5mm)
75.00 _+.06"
(1905 mm)
67.12"
(1705 mm)
(17! 0 _
l
67.12"
(1705 mm)
79.09"
(2009 ram)
Safety:
Tools Needed:
• Phillips TMScrewdriver
• Flathead Screwdriver
• Safety Glasses
Always wear safety glasses when using power tools.
• Adjustable Wrench to fit 1-1/4"
• 3/8" Socket Wrench
• 7/16" Socket Wrench
• Step Ladder
• Tape Measure (min. 7" length)
• Drill & 1/8" Bit
Before You Begin
• Be careful when unpacking components. Do not use sharp objects when removing packaging material. This may
scratch the surface of trim components.
• Use extreme care when handling the metal trim pieces, Corners are very sharp and easily damaged if dropped,
@2011 Etectrolux Home Products, Inc. Instruction Sheet 297299700 Rev. B 02.09.11
