Electrolux W3105H Installation Manual

8:2
438 9143-61/04
F11 F12
S40
X81
Y11
Y12
Y13
Y14
Y24
Y22
Y15
Y25
X51
X50
X40
X41
X43
X44
X45
X46
1
1
1
1
1
1
1
X72
1
1
X70
X53
X48
1
X80
7
7
X73
1
5233A
3
5233A
4
S40
X40
X41
1
1
1
1
1
X70
X80
Outputs (110-240V AC):
Only Exacta Control
X70 See Payment system
X72:1 0 V(common) (Door locked)
X72:2 L1 (Door locked)
X72:3 Liquid supply 1 (Prewash)
X72:4 Liquid supply 2 (Main wash)
X72:5 Liquid supply 3 (Softener)
X72:6 Liquid supply 4 (Mop chemicals)*
X72:7 Liquid supply 5 (Bleach)
* Only for program 2M11, 2M12
and 2M14.
X73:1 Heating
X73:2 Detergent box 2 (Y12)
X73:3 Cold water (Y15)
X73:4 Detergent box 2 (Y22)
X73:5 Hot water (Y25)
X73:6 Inverted drain
X73:7 Drain
Payment system
FlexSystem
X70:1 Price programming
X70:2 Price programming
X70:1 and X70:2 connection for price
programming switch.
X70:3 0 V (common)
X70:4 ±24V
X70:3 and X70:4 to be connected to FlexSystem.

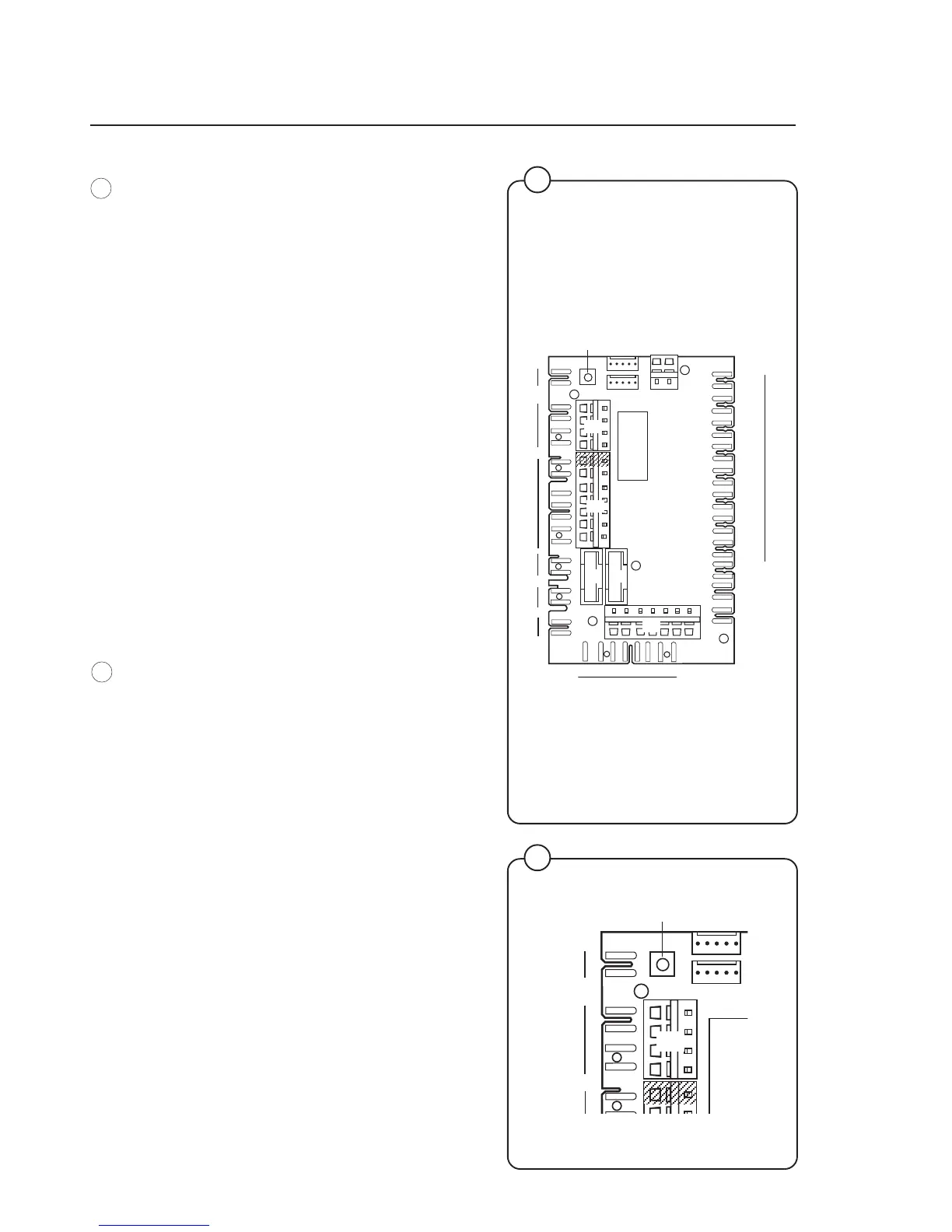

Fig.
