8:1
438 9143-61/04
5331
1
T1
T2
T3
L1
N
N
L2
L3
AB
6052
2
X72
X50 X51 Y35 Y25 Y24 Y15 Y13 Y12 Y11 Y14
X71 X70
X81
Installation

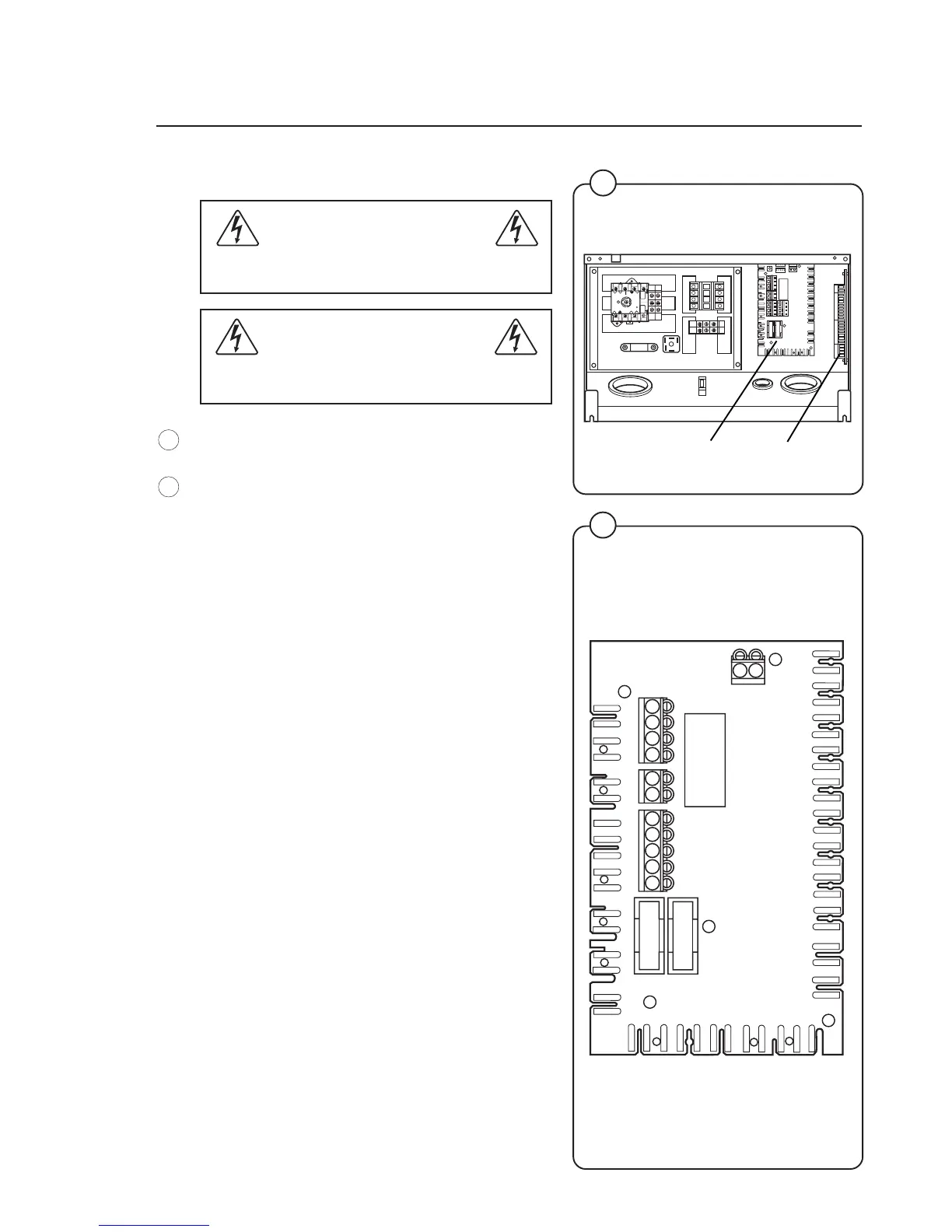

Fig.
1
Connection of external liquid supplies
Electrical installation must be carried out
by an authorized personnel!
All optional equipment connected must be
EMC-approved to EN 50081-1 or EN 50082-2.
Distribution card A can be used to control
external functions, output and input signals.
Outputs (110-240V AC):
Only Clarus Control
X71:1,2 Signal "Door locked, program on"
X72:1 0 V (common)
X72:2 Liquid supply 1
X72:3 Liquid supply 2
X72:4 Liquid supply 3
X72:5 Liquid supply 4
X73:1 Detergent box 1 (Y11)
X73:2 Detergent box 2 (Y12)
X73:3 Detergent box 3 (Y13)
X73:4 Detergent box 4 (Y14)
X73:5 Detergent box 2 (Y22)
Inputs:
X70:1,2 Paus/PC5
X70:3,4 Start/Stop
Fig.
2
Card A
