Electrolux W3105H Installation Manual

8:4
438 9143-61/04
7
8
X70:1
X70:2
X70:3
X70:4
5610
X70:1
X70:2
X70:3
X70:4

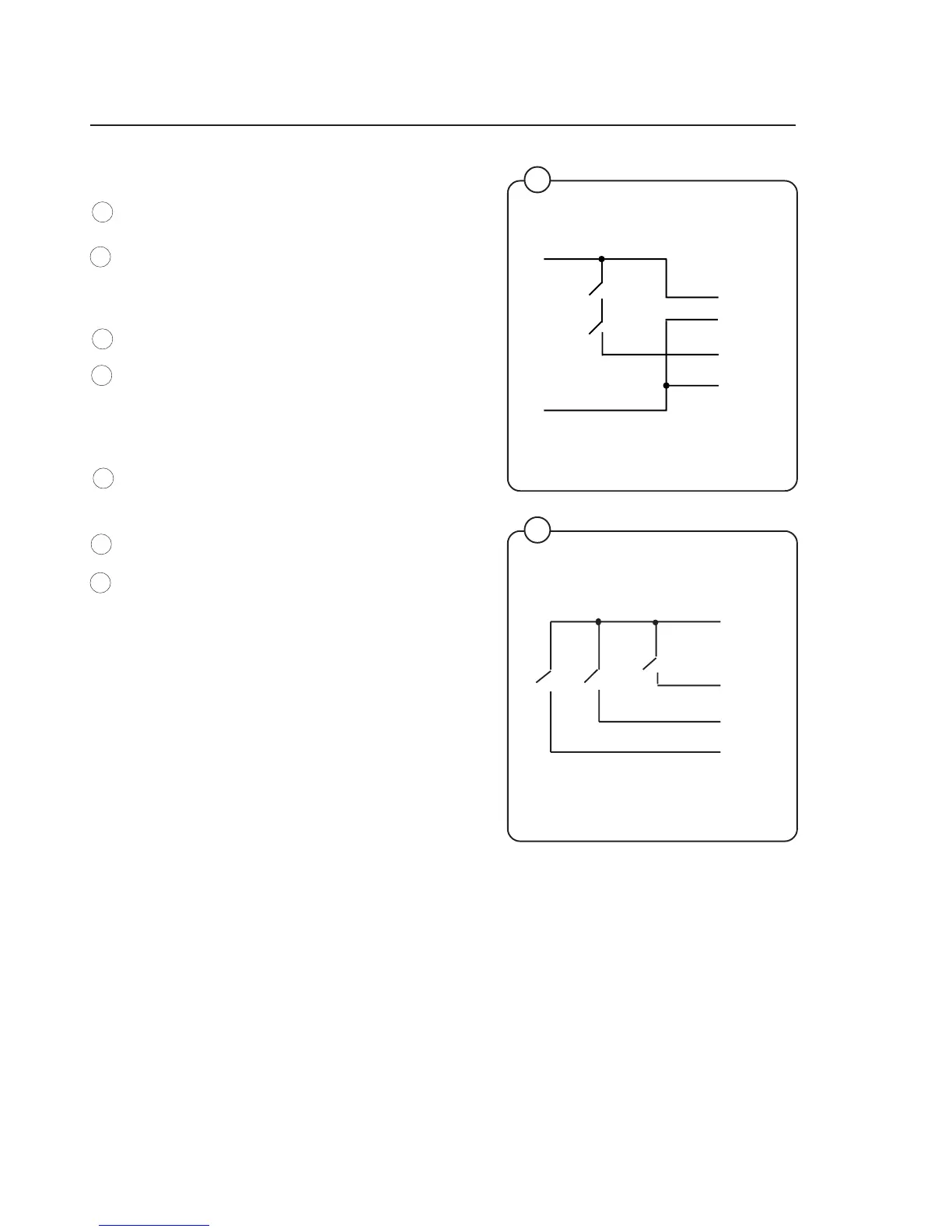

Installation
Electrolux Booking System
X70:1 L (230V), output
X70:2 N, output
X70:3 Booked, opto- input
X70:4 Booked, opto- input
Central Payment (France)/External start
X70:1 L (230V), output
X70:2 N, output
X70:3 Start, opto- input (120-230V)
X70:4 Start, opto- input
Price reduction
X70:1 Timer, opto- input (120-230V)
X70:2 Timer, opto- input
External coin-meter
X70:1 0V (common), output
X70:2 Coin 2
X70:3 Coin 1
X70:4 Price programming
Fig.
4
Fig.
7
Fig.
4
Fig.
4
Fig.
4
Fig.
8
Fig.
7
