9:2
438 9143-81/09
5334
2
5333
3AC
3N AC
3

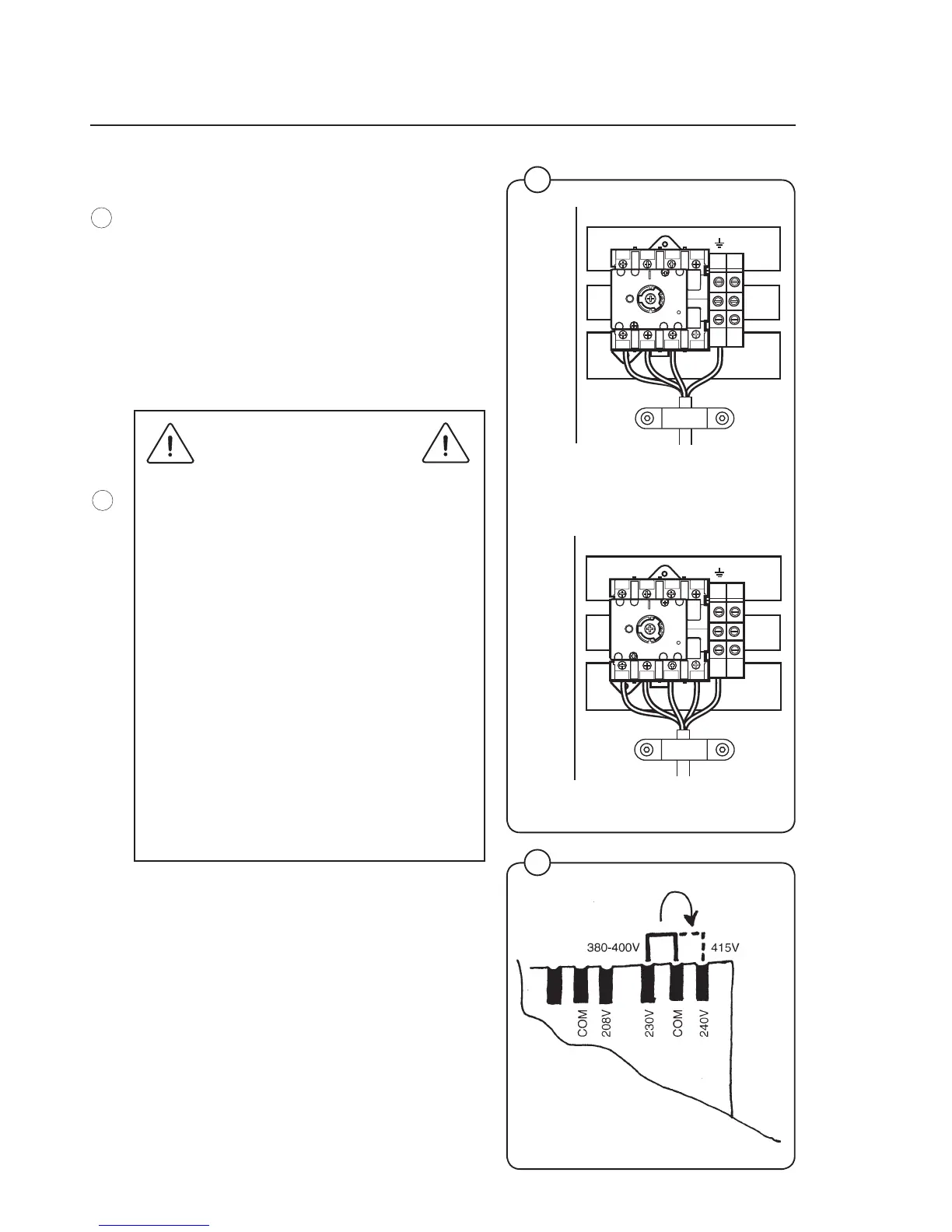

Three-phase connection:
Connect the earth, neutral and phase wires as
shown in example ”3AC” and ”3N AC” in the
figure.
When the installation is completed, check:
• that the drum is empty.
• that the machine operates by turning on the
mains switch, starting the machine and using
RAPID ADVANCE to reach the spin cycle (see
operations manual).
Fig.
2
Installation
IMPORTANT
Fig.
3
415V 3AC machines can be supplied with
380, 400 or 415V.
240V 1AC machines can be supplied with
220, 230 or 240V.
In the machine there is a transformer (not
on models with Classic control) placed in
the front control unit (under the top cover).
This transformer is preset for 240V which is
applicable for machines intended for 240V
1- or 3AC and 415V 3AC.
If your supply voltage is 220 or 230V, 1- or
3AC or 380 or 400V 3AC the jumper on the
transformer has to be moved to 230V-COM
instead of COM-240V.
If the jumper is not moved in the above
described cases there is a risk that the
machine will not work in installation sites
with undervoltage.
