DGS-TDS-N 05.2006 © Electrolux 19 168 650

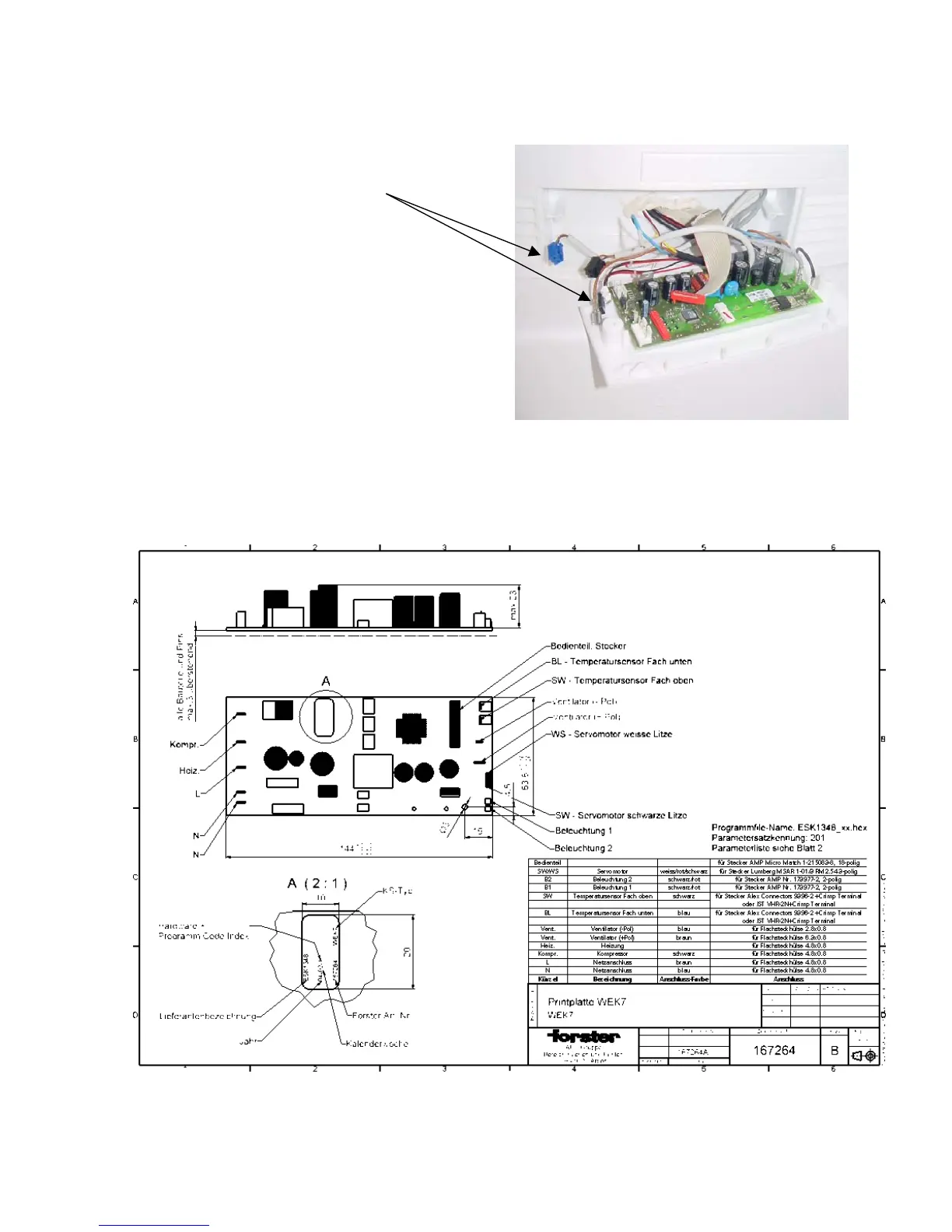

6.3.7 Removing the rear panel cover
1. Screw the electronics cover off
2. Remove all of the connectors
3. Electronics diagram
