DGS-TDS-N 05.2006 © Electrolux 20 168 650
4. Remove the sealing compound
5. Remove the protective covers

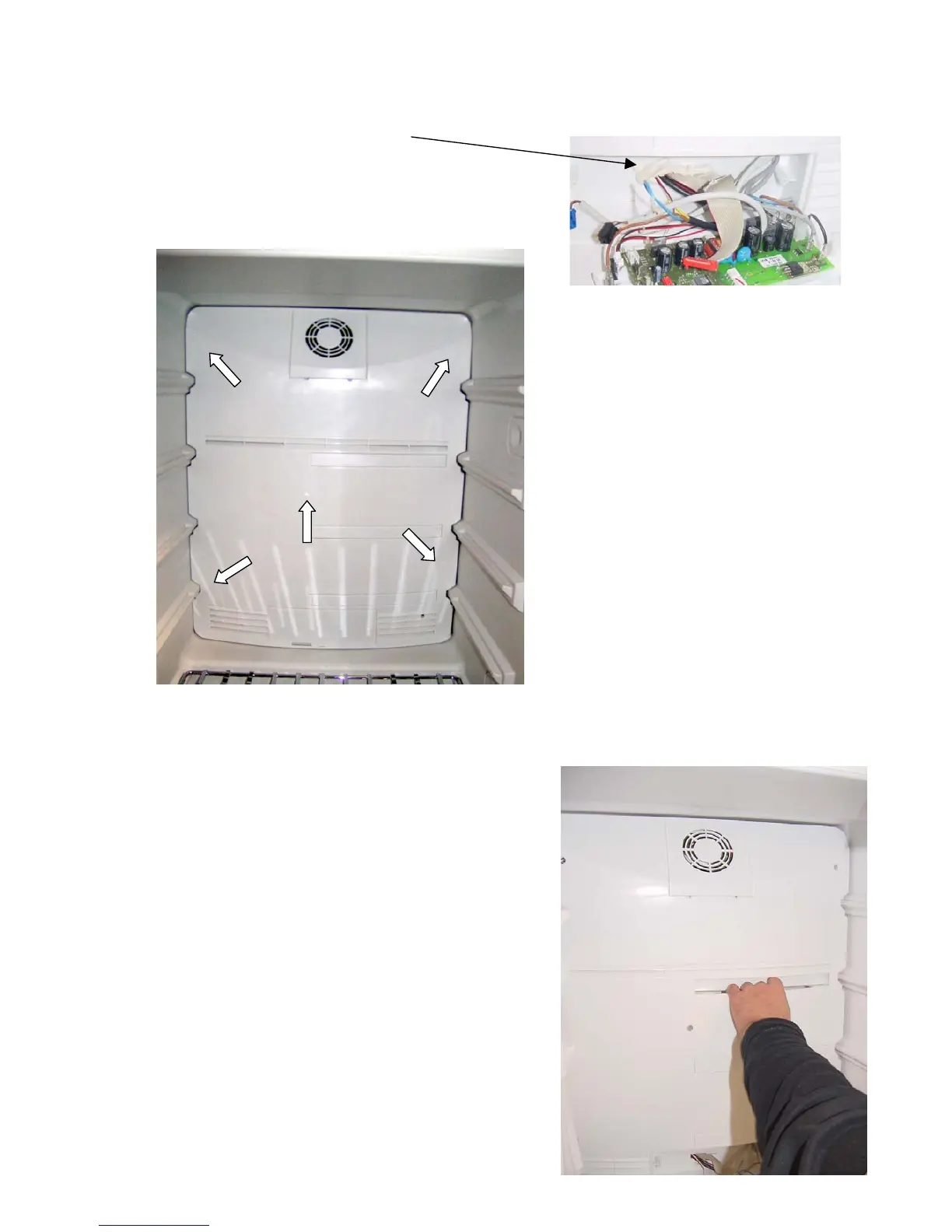

6. Loosen all 5 screws
7. Take hold of the rear panel through the slide opening and pull it towards you. Thereby
ensure that the cables do not get caught.
8. When replacing, insert the cable through the cable
opening. Initially insert the centre screw in the rear
panel. Finally seal the cable opening with sealing
compound.
