3. PLASTIC COMPONENTS

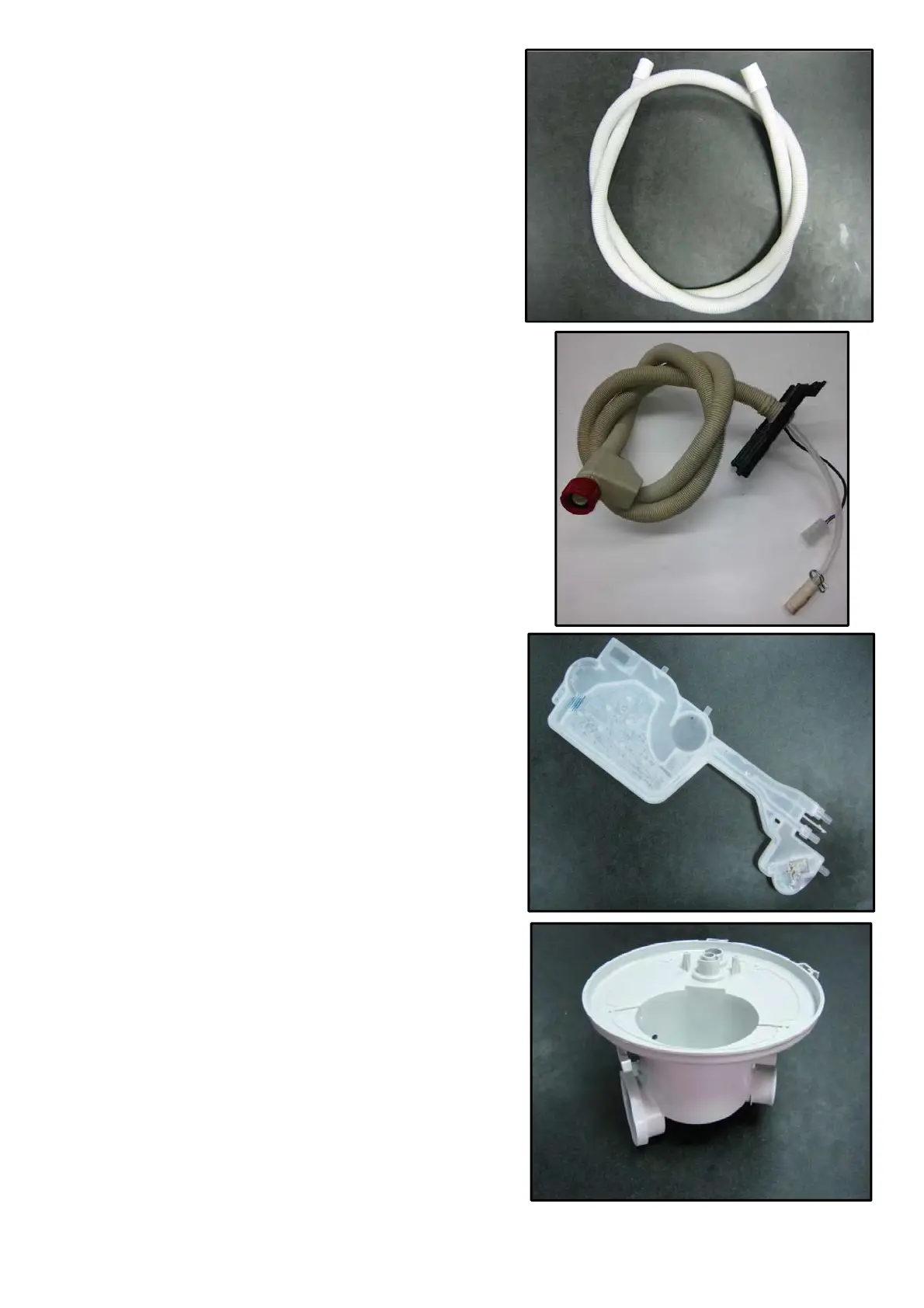

3.1 Drain Hose
Drain hose maximum height : 110cm
Drain hose minimum height : 50cm
Drain Hose maximum length : 400cm
3.2 Hose Inlet Valve Safety
Fitting that has a straight cuff with safety inlet
solenoid assembled to tap outlet.
Fitting with 90º cuff assembles to water inlet valve
and adjust to suit assembly direction.
3.3 Air Break
Measures water that comes into the dishwasher
and gives data to electronic card
3.4 SUMP
Sump a reservoir that connects water in tub,
circulation pump, drain pump and heater casing.
