Page 23

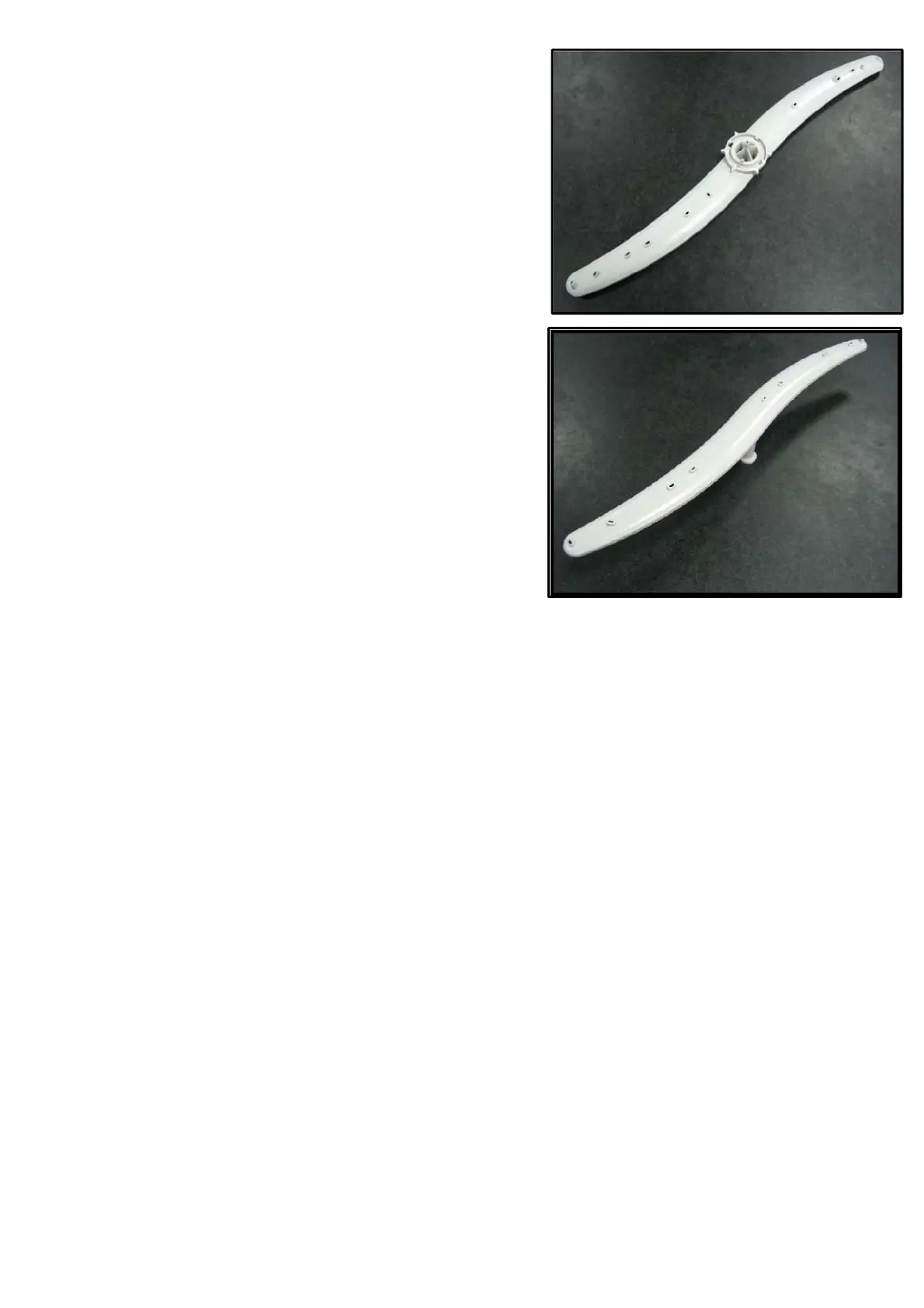

3.8 SPRAY ARM BASKET TOP COMPLETE
It distributes water from the channel upper spray arm
feed onto dirty dishes in the upper basket.
3.9 LOWER SPRAY
ARM
It distributes water from support spray arm lower to
dirty dishes in the lower
basket.
