Page 26

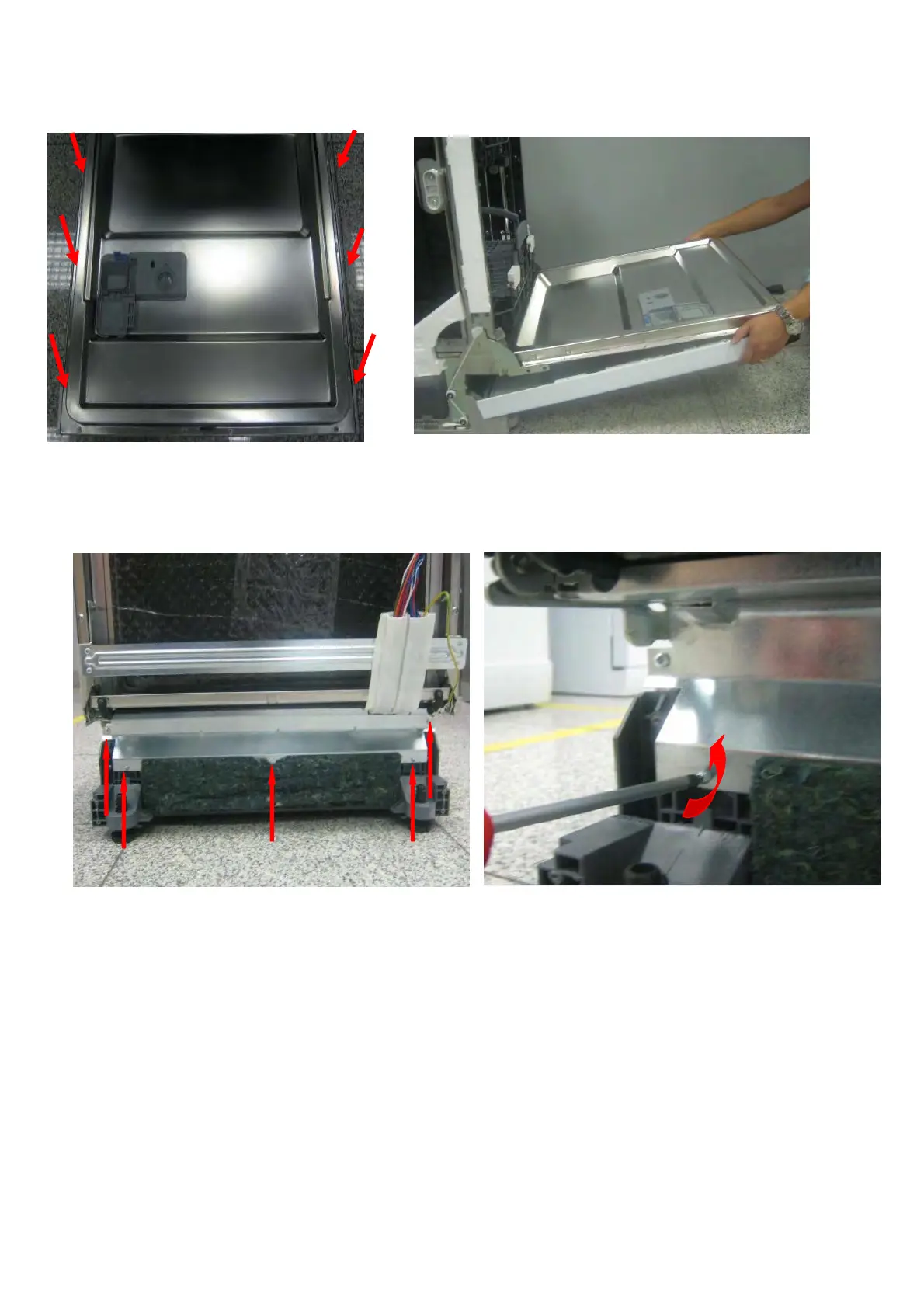

4.4 Front Panel
a) Remove six screws that fix the front panel.
b) Pull down the front panel as it shown in the Picture
4.5 Kick Plate (Sheet Metal)
a) Remove top plate, plastic kick plate and side panels
b) Remove two screws that fix the kick plate sheet iron
c) Pull it down as shown in the picture
