Page 28

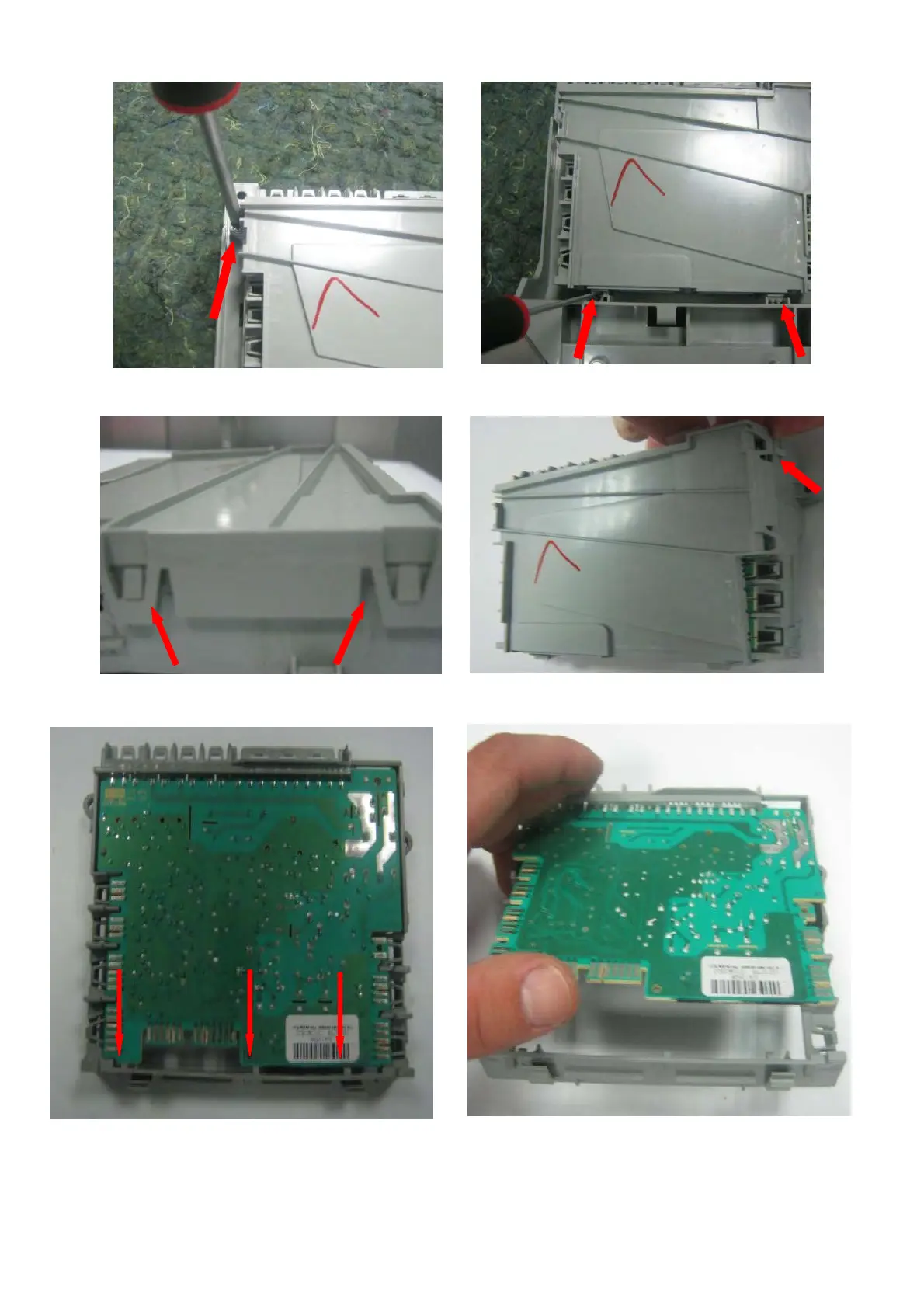

b) Remove PCB box cover with pulling its plastic hinges
c) Remove the wire that is between rotary switch and electronic card
d) Remove the PCBfrom PCB box by removing PCB box’s plastic hinges
