Page 8
1. ELECTRICAL COMPONENTS, TERMS AND ABBREVIATIONS
1.1 Wash Pump
95 ± 6.65
from the Main P.C.B. Connector
KN2.3 – KN2 (Primary Winding)
126 ± 8.8
from the component
(Secondary Winding)
1.2 Drain Pump:
143 ± 10
from the Main P.C.B. Connectors KN2.2 – KN2.4 (Hanyu)
210 ± 12.6 (Hanning)

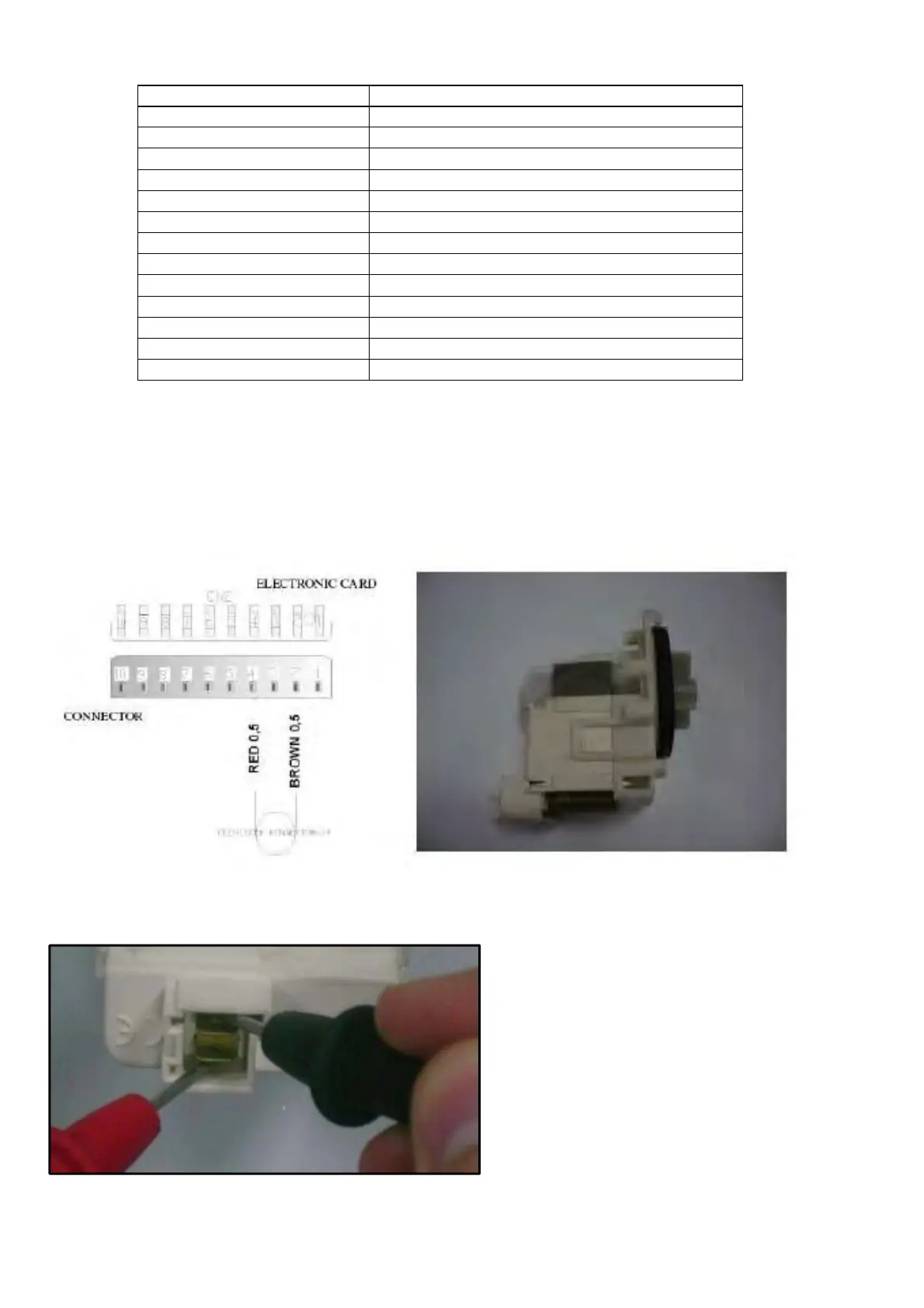

The above sketch shows the connectors of the drain pump and on the electronic card. Apply
the p
robes of the tester onto the relative connectors as shown.
From the component:
Apply the p
robes of the tester onto the relative connectors as shown.
ABBREVIATION COMPONENT
FM
FLOWMETER
SET
NTC SENSÖR
I
V
INLET VALVE
FS
FLO
A
TSWITCH
DP
DRAIN PUMP
PS
PRESSURE SWITCH
DS
DOOR SWITCH
DE
DISPENSER
HE
HEATER
CP
WASH MOTOR
C
CAPACITOR
RV
REGENERATION VALVE
SF
THERMAL OVERLOAD
