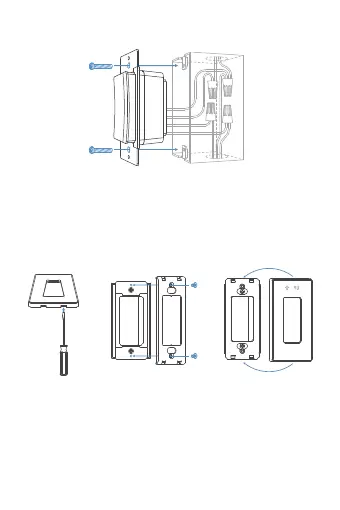

Form all wires carefully into wall box, and mount switch with
mounting screws supplied.
Push a flat-head screwdriver into the slot at the bottom of the
faceplate. Gently pry apart the two pieces.
Use the short screws to mount the fixing plate.
Push faceplate onto the fixing plate and snap it into place.
FINISH WIRING
MOUNT WALL PLATE
