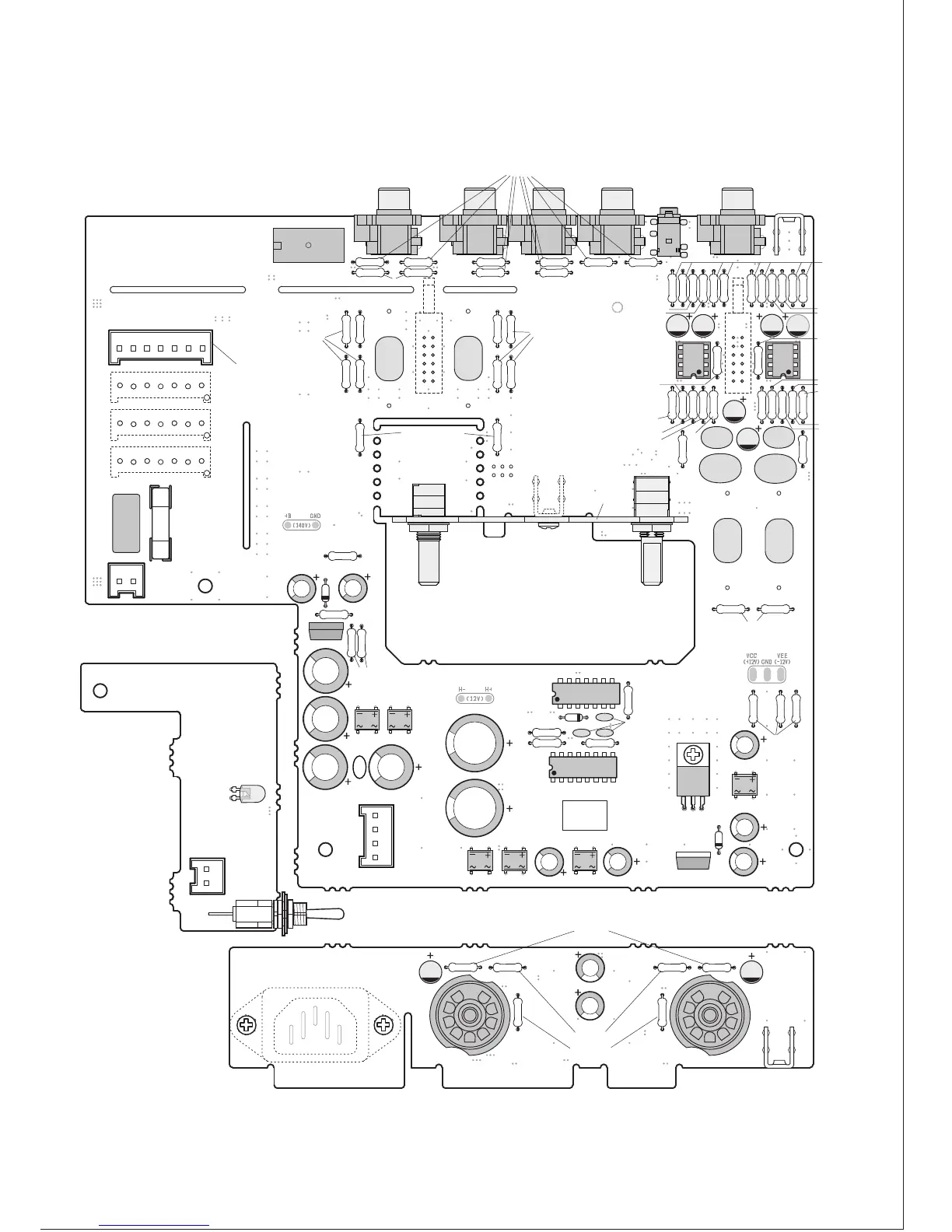

●Complete PCB
* Compare your PCB with the PCB image below. Check for any unsoldered leads or pins, or any components with insufficient
solder, bridged solder joints between leads/pins or components, and components that may not be fully seated on the PCB.
Check the setting directions of the parts, especially electrolytic capacitors, diodes, IC, FET, etc.
R59 2.2Ω
R60 2.2Ω
R66 2.2Ω
RED-RED-GLD-GLD
R62 3.3MΩ
ORN-ORN-GRN-GLD
R5 100Ω
R6 100Ω
R25 100Ω
R26 100Ω
R53 100Ω R54 100Ω
R7 390Ω R8 390Ω
R21 390Ω
R22 390Ω
R13 10kΩ
R14 10kΩ
R23 10kΩ
R24 10kΩ
R56 470kΩR58 10kΩ
R27 470kΩ R28 470kΩ
R29 470kΩ
R30 470kΩ
R32 470kΩ
R34 470kΩ
R33 470kΩ
R31 470kΩ
R35 470kΩ
R36 470kΩ
R41 470kΩ
R42 470kΩ
R51 470kΩ
R52 470kΩ
R55 3.3MΩ
R57 470kΩ
R63 470kΩ
R64 470kΩ
R19 3.3kΩ
R20 3.3kΩ
R15 33kΩ R16 33kΩ
R1 100kΩ
R2 100kΩ R3 100kΩ R4 100kΩ
R9 100kΩ
R10 100kΩ
R11 100kΩ R12 100kΩ
R17 100kΩ
R18 100kΩ
R37 100kΩ
R38 100kΩ
R43 100kΩ
R44 100kΩ
R45 100kΩ
R46 100kΩ
R65 100kΩ
ZD1
A
K
ZD2
A
K
ZD3
A
K
D1D2
D3
D4
D5
D6
SW1
(SIDE-B)
IC1
IC2
2068DD 2068DD
IC3 40106B
IC4 4040B
（
or 4584B)
SW3
(SIDE-B)
IC5
LM2940CT
-12
FUSE 0.5A
CN1
CN6
CN2 (100V)
CN3 (115V)
CN4 (200V)
CN5 (230V)
V1
V2
R39 3.3kΩ
R40 3.3kΩR49 33kΩ R50 33kΩ
R47 100kΩ R48 100kΩ
TM1
TM2
(SIDE-B)
JACK5
C25
220μF
C26
220μF
C24
220μF
C23
220μF
R61 15Ω
C22
220μF
C28
2200μF
C27
2200μF
C29
100μF
C30
100μF
C32
100μF
C31
100μF
C33
10μF
C34
10μF
C17
10μF
C18
10μF
C14
120μF
C13
120μF
C10
C9
120μF
C1
C2
C8
C7
120μF 120μF 120μF 120μF
C11
0.47μF
(474)
C12
0.47μF
(474)
C15
0.47μF
(474)
C16
0.47μF
(474)
C5
0.1μF
(104)
C6
0.1μF
(104)
C3
0.033μF
(333)
C4
0.033μF
(333)
C19
C20
C21
0.022μF
(223)
RY
IC6
FET
02N60Z
C35
Spark killer
(RE1201)
LED
A
K
CN7
SW4
PTC
VR
SW2
BRN-BLK-BLK-ORN-BRN
YEL-VIO-BLK-ORN-BRN
ORN-ORN-GRN-GLD
BRN-BLK-BLK-RED-BRN
YEL-VIO-BLK-ORN-BRN
YEL-VIO-BLK-ORN-BRN
YEL-VIO-BLK-ORN-BRN
BRN-BLK-BLK-BLK-BRN
ORN-WHT-BLK-BLK-BRN
ORN-ORN-BLK-BRN-BRN
BRN-BLK-BLK-ORN-BRN
ORN-ORN-BLK-RED-BRN
BRN-BLK-BLK-ORN-BRN
ORN-WHT-BLK-BLK-BRN
BRN-BLK-BLK-BLK-BRN
YEL-VIO-BLK-ORN-BRN
BRN-BLK-BLK-BLK-BRN
BRN-BLK-BLK-ORN-BRN
BRN-BLK-BLK-ORN-BRN
YEL-VIO-BLK-ORN-BRN
YEL-VIO-BLK-ORN-BRN
YEL-VIO-BLK-ORN-BRN
UNI
T
-5
BRN-BLK-BLK-ORN-BRN
ORN-ORN-BLK-RED-BRN
ORN-ORN-BLK-BRN-BRN
JACK1
JACK2
JACK3
JACK4
JACK6
TM3
CN8 AC inlet(SIDE-B)
LM2990T-12
UNIT-2
UNIT-1
UNIT-4
* This is when the product is
used in 100V environment.
The connector should be set
to either CN2,CN3, CN4, or
CN5 depending on your
voltage environment.
120μF
BRN-BLK-BLK-ORN-BRN
ORN-ORN-BLK-BRN-BRN
ORN-WHT-BLK-BLK-BRN
BRN-BLK-BLK-BLK-BRN
ORN-WHT-BLK-BLK-BRN
BRN-BLK-BLK-RED-BRN
BRN-BLK-BLK-RED-BRN
BRN-BLK-BLK-BLK-BRN
ORN-ORN-BLK-RED-BRN
BRN-BLK-BLK-RED-BRN
BRN-BLK-BLK-RED-BRN
