Operating and assembly instructions RD
9016306 06.22/17
EN

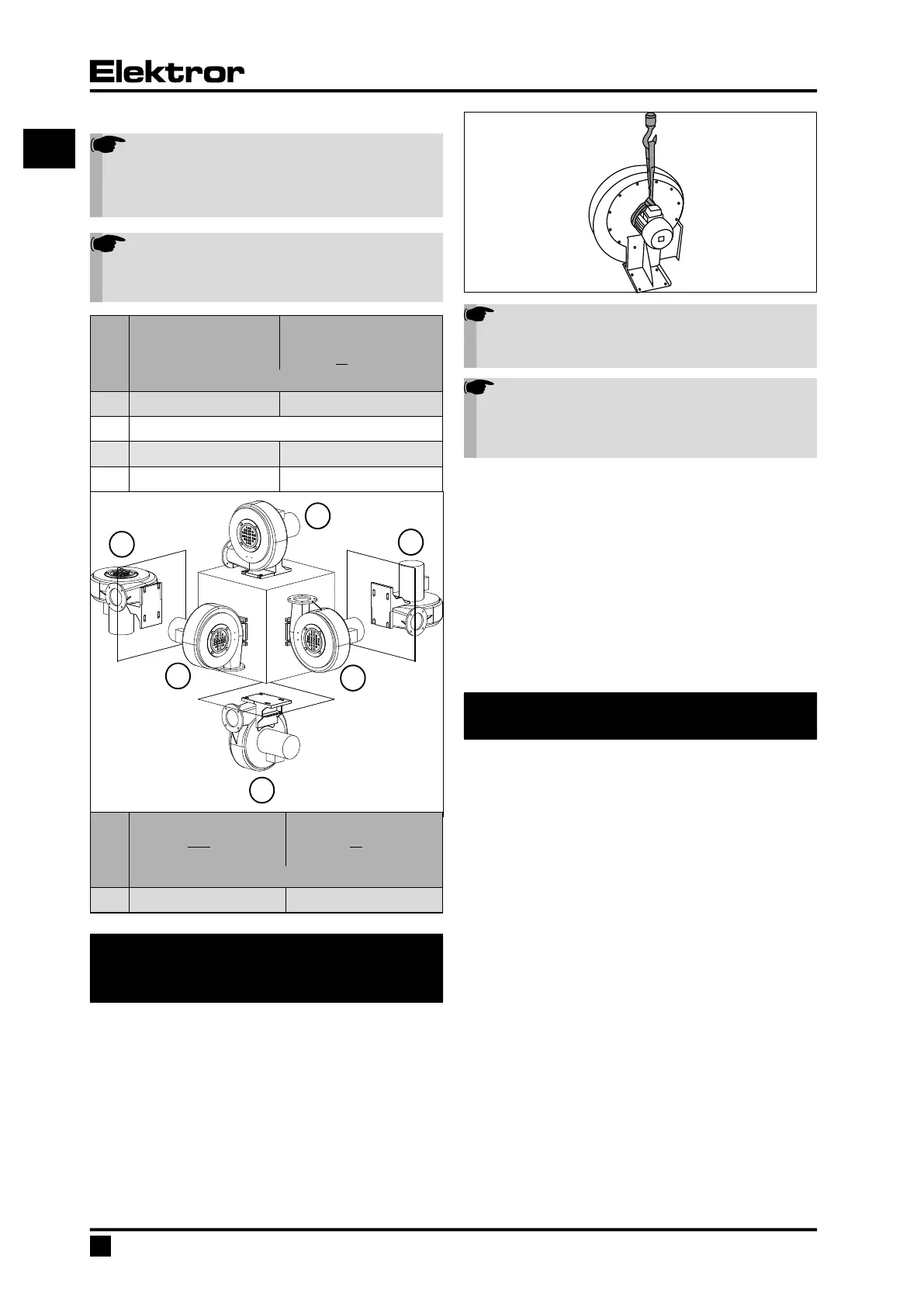

1.12 Allowed mounting positions
Note!
Fastening to the fan is only permitted via a fi xed
connection!
Do not use expansion joints as a fi xed connec-
tion!
Note!
Installation positions with a vertical drive shaft
halve the life of the ball bearings.
See „5.1 Ball Bearings“ for more information.
Pos.
Mounting only foot /
console
Mounting foot / console
with mounting on the pres-
sure or suction side
up to and including
1 RD 5 / RE 5 RD 72
2 no limitation
3 RD 5 / RE 5 RD 72
4-6 RD 5 / RE 5 RD 5 / RE 5
3
1
4
6
5
2
Pos.
without foot
pressure and suction side
mounting
without foot
pressure or suction side
mounting
up to and including
1-6 RD 65 RD 5 / RE 5
2 INFORMATION ON TRANSPORT,
HANDLNG AND STORAGE OF THE
MACHINE
2.1 Transportation and handling
• Prior to installation and putting into service, check all parts
for transit damage. A damaged blower is a potential safety
hazard and, therefore, should not be put into service.
• Do not store the blower unprotected in the open
(protect against moisture).
• Attach hoist securely. Only use hoists and load
suspension devices with suffi cient load-carrying capacity.
Secure the route of transportation.
Note!
The eye bolt on the motor must not be used to lift
the entire blower. This is used if the motor needs
to be (dis-)assembled.
Note!
On devices with in-built frequency converters
(FUK devices):
The frequency converter must never be used to
lift the device or as a climbing aid!
2.2 Storage
• Ensure that the air intake connection and pressure connec-
tion are closed.
• Store the blower
-> in its original packaging if possible
-> in a closed room
-> in a dry, dust-free and vibration-free area.
• Storage temperature range from -20°C to +60°C
• After a storage period of 6 months, the blower bearings
and/or motor bearings should be checked before they are
mounted in the blower.
• Devices may be stored for a maximum of 2 years.
3 INFORMATION ON COMMISSIONING
THE MACHINE
3.1 Basic information
• Prior to the fi rst start-up and before any other start-up, the
proper operating status of the unit must be inspected. Units
that, for example, are found to be defective upon delivery
or during installation, must be examined by qualifi ed techni-
cians.
• Installation, assembly and operation must only be performed
by properly trained and qualifi ed specialists. Operation fol-
lowing incorrect installation, maintenance or unapproved
replacement of components constitutes non-designated use
and renders the warranty void. The resultant risk shall be
borne solely by the customer or owner.
3.2 Installation and assembly
• Protect the blower from the weather and install it in a hori-
zontal position, see also 1.1. For outdoor use, protection
from the weather must generally be provided that fulfi ls
the requirements listed in 1.1 Intended Use and protects
the blower from the infl uences of the weather.
• Avoid vibrational and impact loads during operation.
Permissible vibrational load on blower: refer to ISO 14694,
BV-3.
