NOTE:

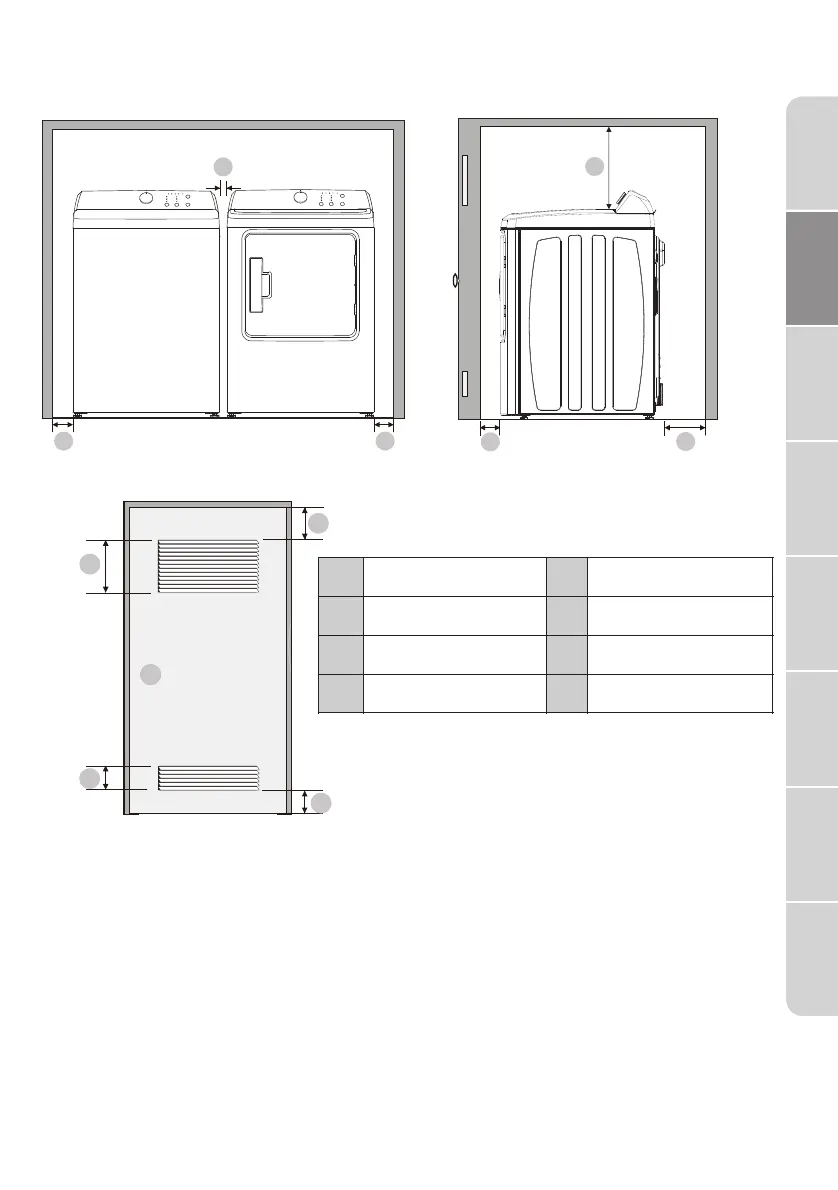

The front of the closet must have two unobstructed air openings for a
combined minimum total area of 72 sq.in. (465 sq.cm) with a minimum
clearance of 3 in. (76 mm) at the top and bottom. A slatted door with
equivalent space clearance is acceptable.
I
J
K
L
G
H
E 1 in. (25 mm) F 24 in. (610 mm)
G 2 in. (51 mm) H 5 in. (127 mm)
2 2
J 48 in. (31000 mm )
2 2
K 24 in. (15500 mm )
L 3 in. (76 mm)
I 3 in. (76 mm)
E
E
E
F
