Element ELCFW326 - TV Installation Drawings; Power, Antenna, AV, and Component Connections

8
Power Cord Connection

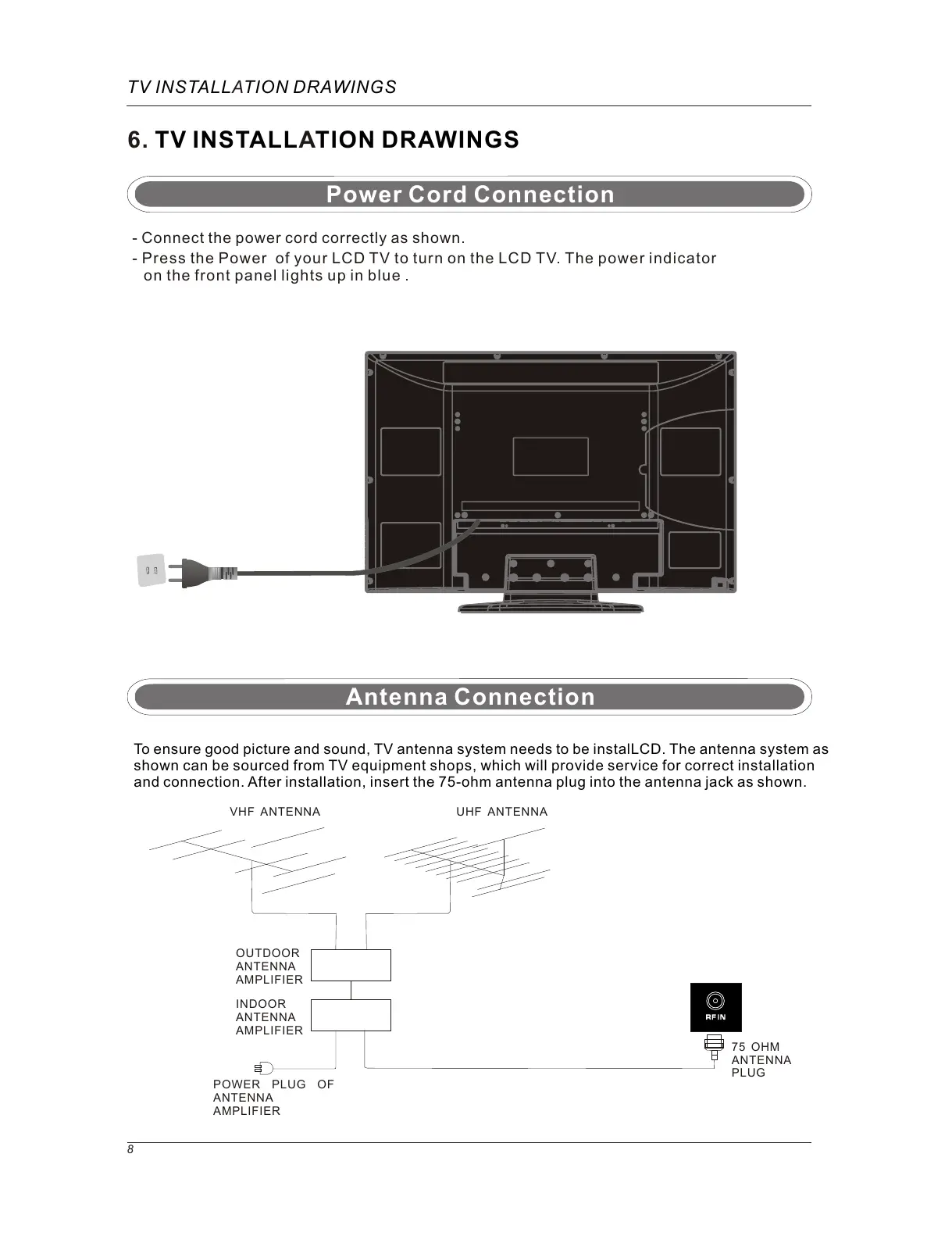

6. ATV INSTALL TION DRAWINGS
To ensure good picture and sound, TV antenna system needs to be instalLCD. The antenna system as
shown can be sourced from TV equipment shops, which will provide service for correct installation
and connection. After installation, insert the 75-ohm antenna plug into the antenna jack as shown.
Antenna Connection
75 OHM
ANTENNA
PLUG
POWER PLUG OF
ANTENNA
AMPLIFIER
OUTDOOR
ANTENNA
AMPLIFIER
VHF ANTENNA UHF ANTENNA
INDOOR
ANTENNA
AMPLIFIER
- Connect the power cord correctly as shown.
- Press the Power of your LCD TV to turn on the LCD TV. The power indicator
on the front panel lights up in blue .
TV INSTALL TION DRAWINGSA
