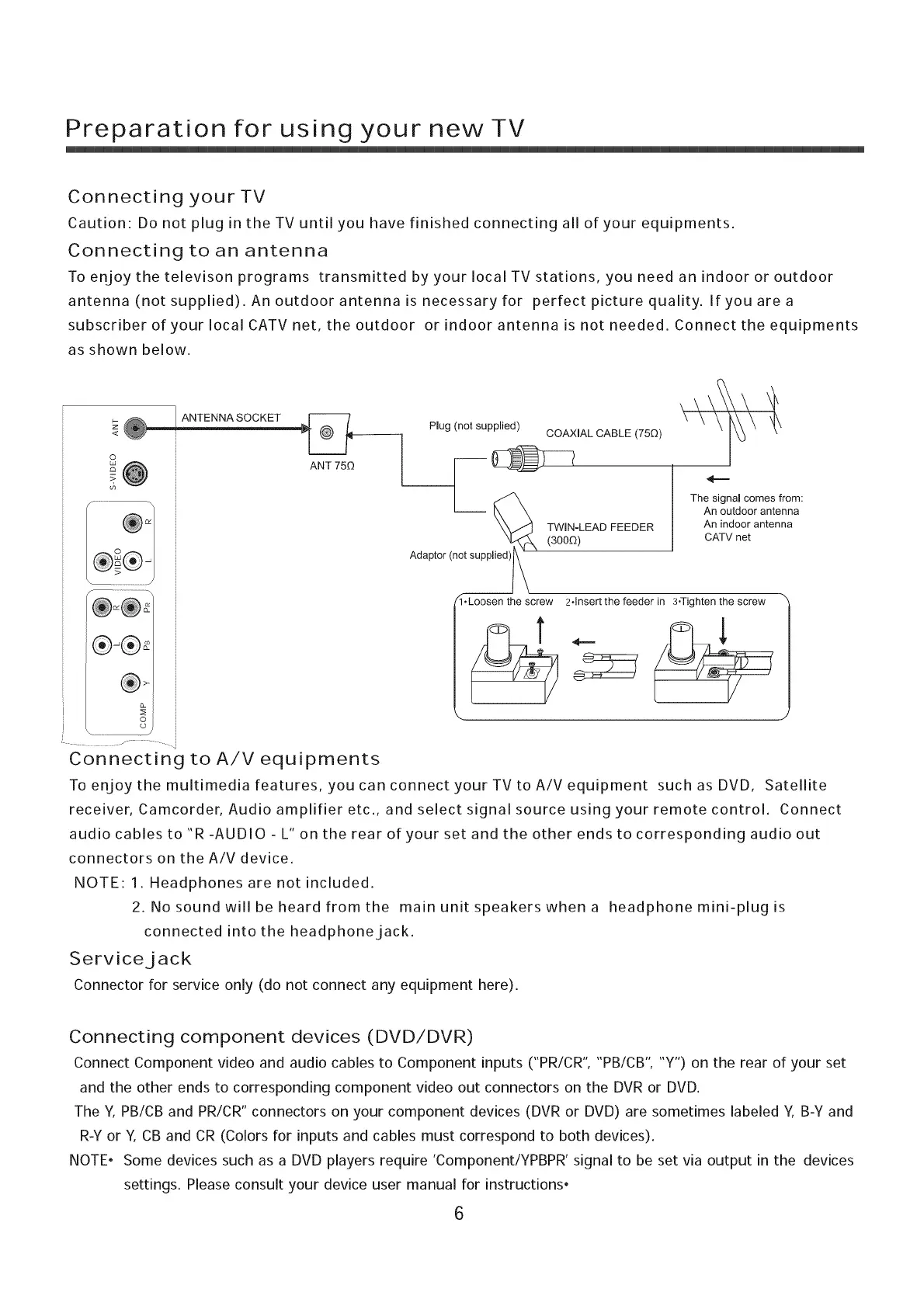

Preparation for using your new TV
Connecting your TV
Caution: Do not plug in the TV until you have finished connecting all of your equipments.
Connecting to an antenna
To enjoy the televison programs transmitted by your local TV stations, you need an indoor or outdoor
antenna (not supplied). An outdoor antenna is necessary for perfect picture quality. Ifyouarea
subscriber of your IocalCATVnet, theoutdoor or indoor antenna is not needed. Connect the equipments
as shown below.
<
©
ANT 750
®-
8
............. J ...... .
Connecting to A/V equipments
Plug (not supplied)
COAXIAL CABLE (75Q)
The signal comes from:
An outdoor antenna
TWIN-LEAD FEEDER An indoor antenna
"_X. (300D) CATV net
Adaptor (n_ \
1.Loosen the screw 2.Insert the feeder in 3oTighten the screw _
To enjoy the multimedia features, you can connect your TV to A/V equipment such asDVD, Satellite
receiver, camc_rder' Audio amplifier etc.' and select signal source using your remote control. Connect
audio cables to "R -AUDIO - L" on the rear of your set and the other ends to corresponding audio out
connectors on the A/V device.
NOTE: 1. Headphones are not included.
2. No sound will be heard from the main unit speakers whena headphone mini-plug is
connected into the headphone jack.
Service jack
Connector for service only (do not connect any equipment here).
Connecting component devices (DVD/DVR)
Connect Component video and audio cables to Component inputs ("PR/CR", "PB/CB", "Y") on the rear of your set
and the other ends to corresponding component video out connectors on the DVR or DVD.
The Y, PB/CB and PR/CR" connectors on your component devices (DVR or DVD) are sometimes labeled Y, B-Y and
R-Y or Y,CB and CR (Colors for inputs and cables must correspond to both devices).
NOTE. Some devices such as a DVD players require 'Component/YPBPR' signal to be set via output in the devices
settings. Please consult your device user manual for instructions.
6
