Element FLX-3210 - Connecting a Video Camera or Game Console

L
R
VIDEO1 IN
VIDEO
Right Side
ENGLISH
21
Chapter 2 Installing the LCD TV
A
B
HDMI IN
AUDIO
LR
LR LR
LR
L
R
LR
LR
AUDIO
VGA IN
VIDEO2 IN
VIDEO AUDIO
S-VIDEO IN
S-VIDEO AUDIO
YPbPr1 IN
AUDIO OUT
STEREO
DIGITAL
OPTICAL
COAXIAL
Air/Cable
VHF/UHF IN
HDTV/TV
YPbPr AUDIO
YPbPr2 IN
YPbPr AUDIO
Rear of TV
or
AUDIO Cable
S-VIDEO Cable
AV Cable

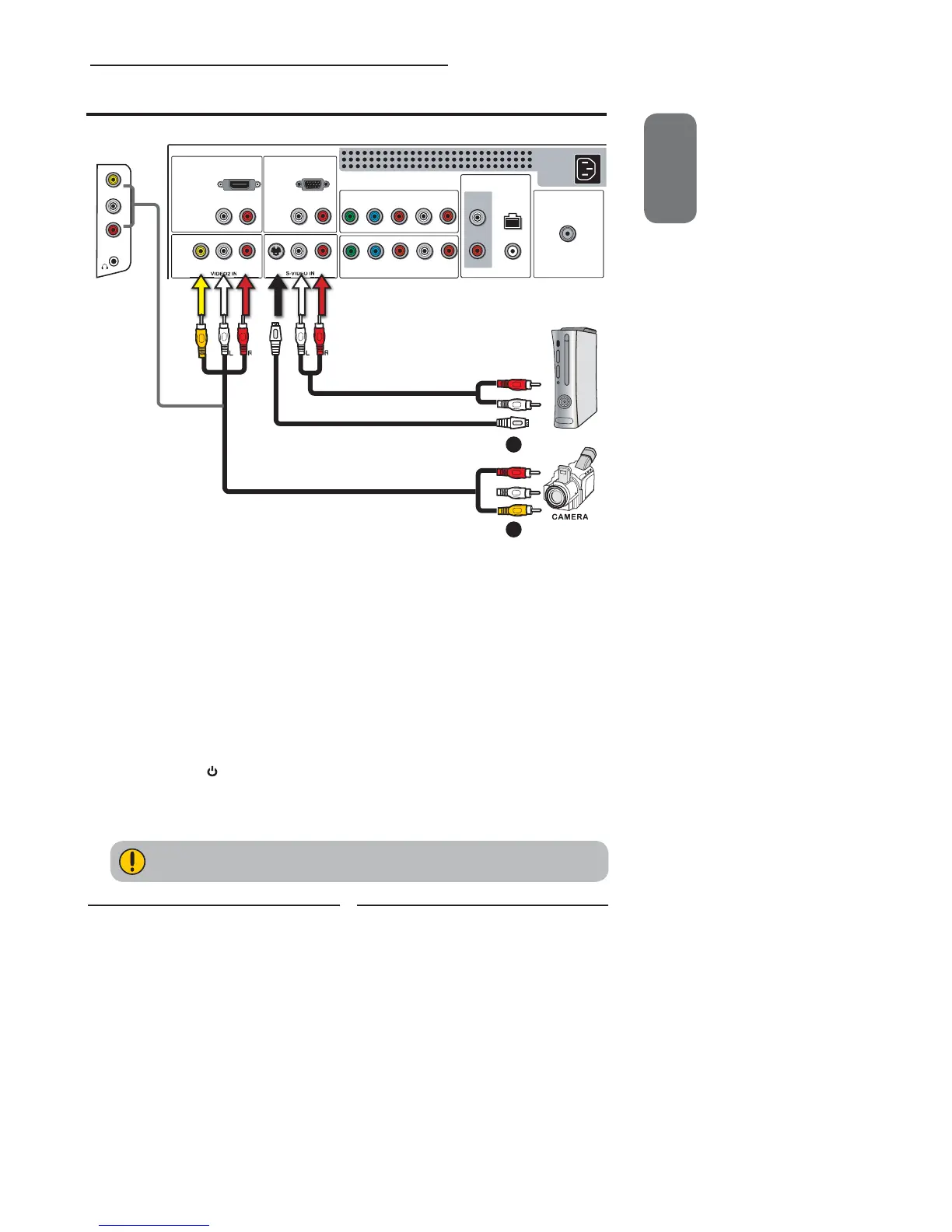

Connecting a Video Camera or Game console
GAME CONSOLE
 METHOD A:
Use a composite cable to connect the video camera’s or game console’s composite
video/audio jacks to the LCD TV’s VIDEO2 IN jacks or VIDEO1 IN jacks.
METHOD B:
Use an audio cable to connect the video camera’s or game console’s audio output
jacks to the LCD TV’s audio inputs. Use an S-Video cable to connect the video
camera’s or game console’s s-video output jack to the LCD TV’s S-VIDEO IN input
jack.
 Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
 Press the button on the remote to turn on the LCD TV.
 To watch a video vis camera or game console, press the Input button on the remote to
select VIDEO2/VIDEO1( METHOD A), or VIDEO3 (METHOD B).
Not all cameras have the ability to connect to a TV. Please check your video camera
user guide for compatibility.
