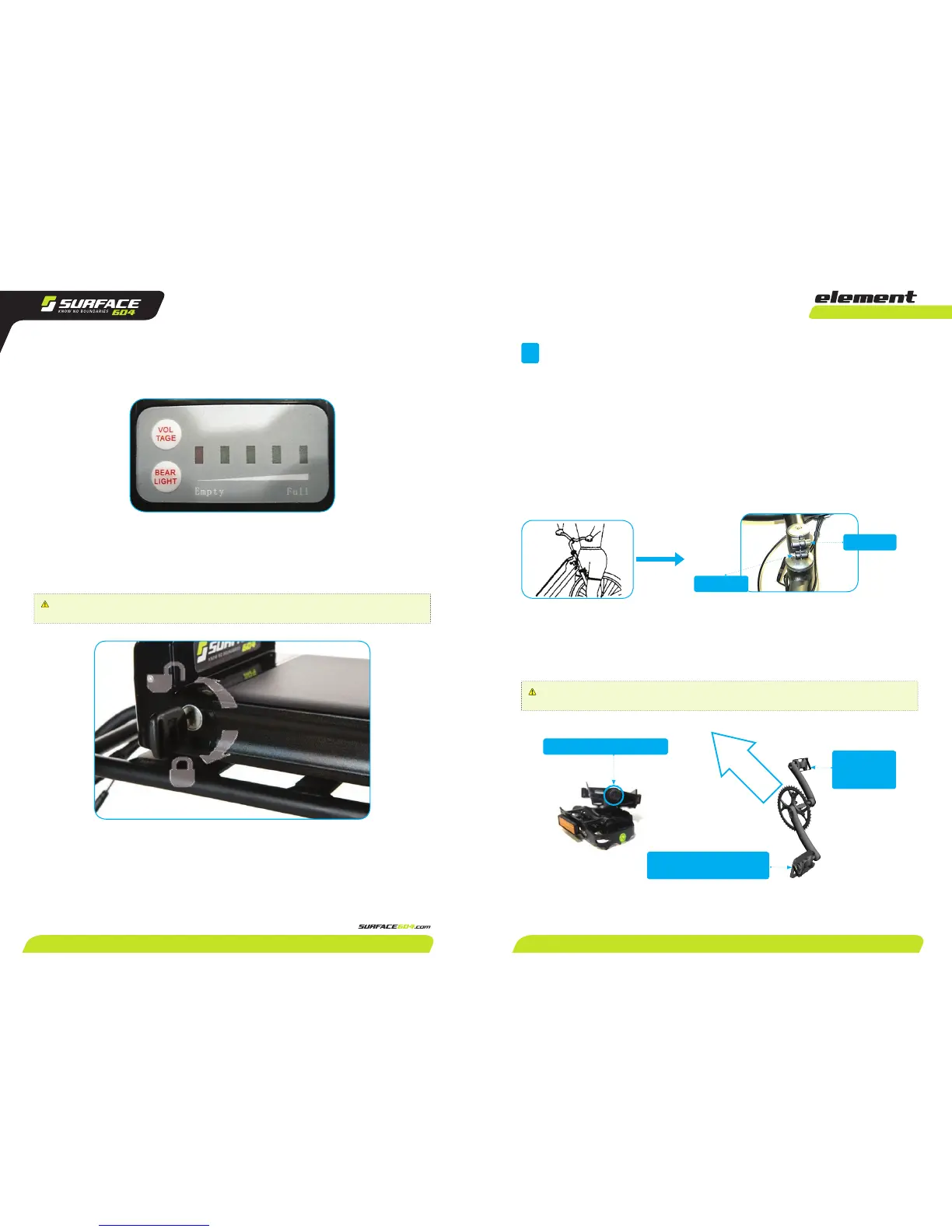

2.4.4. Battery display:
In order to check battery level – press battery level indicator button. Led lights will indicate battery capacity.
In order to turn rear light ON – press rear light button. Rear light has 3 positions, ON, FLASHING, OFF. To switch between
the positions keep pressing the button until you get the desired position.
2.4.5 Battery lock:
Surface 604 battery has locking mechanism to prevent theft.
To lock the battery - insert the key into the lock and turn it clockwise – battery is locked.
To unlock the battery – insert the key into the lock and turn it counter-clockwise – battery is unlocked.
NOTE:
Use steps above also to remove the battery for charging it independently from the bike.
1.4.6 Brake cut out switch
Electric bicycle has a brake power cut out switch that is located inside each brake lever. When you apply the brakes, a
signal is sent to the controller to cut the power to the motor. You cannot throttle electric bicycle if the brake cut out
switch is engaged (brake lever squeezed).
3
ASSEMBLY:
3.1. Tools requirement:
1. Hex (allen) keys: 5mm, 6mm,
2. 15 mm wrench
3. Screwdriver
Only minimal assembly is required for your new SURFACE604. You will be required to do the following:
3.2. Handlebar alignment and tightness:
Remove the bike from the crate and place it on a flat surface.
Straighten the handlebar and tighten stem bolts using 5mm hex key.
Stem bolt
Stem bolt
3.3. Pedals:
Attach the pedals by screwing them on to the crank.Note, there are Left and Right pedals. Left pedal is attached to the
left side crank by screwing it counter-clockwise. Right pedal is attached to the right side crank by screwing it clockwise.
NOTE:
Correct side stamped on the pedal edge
Pedal side stamp location
Right pedal
Tighten
Clockwise
Left pedal
Tighten counter-clockwise
FRONT
To Next Page
