Element4 Sky - Log Arrangements

26
INSTALLER INFORMATION
Log Arrangements SKY

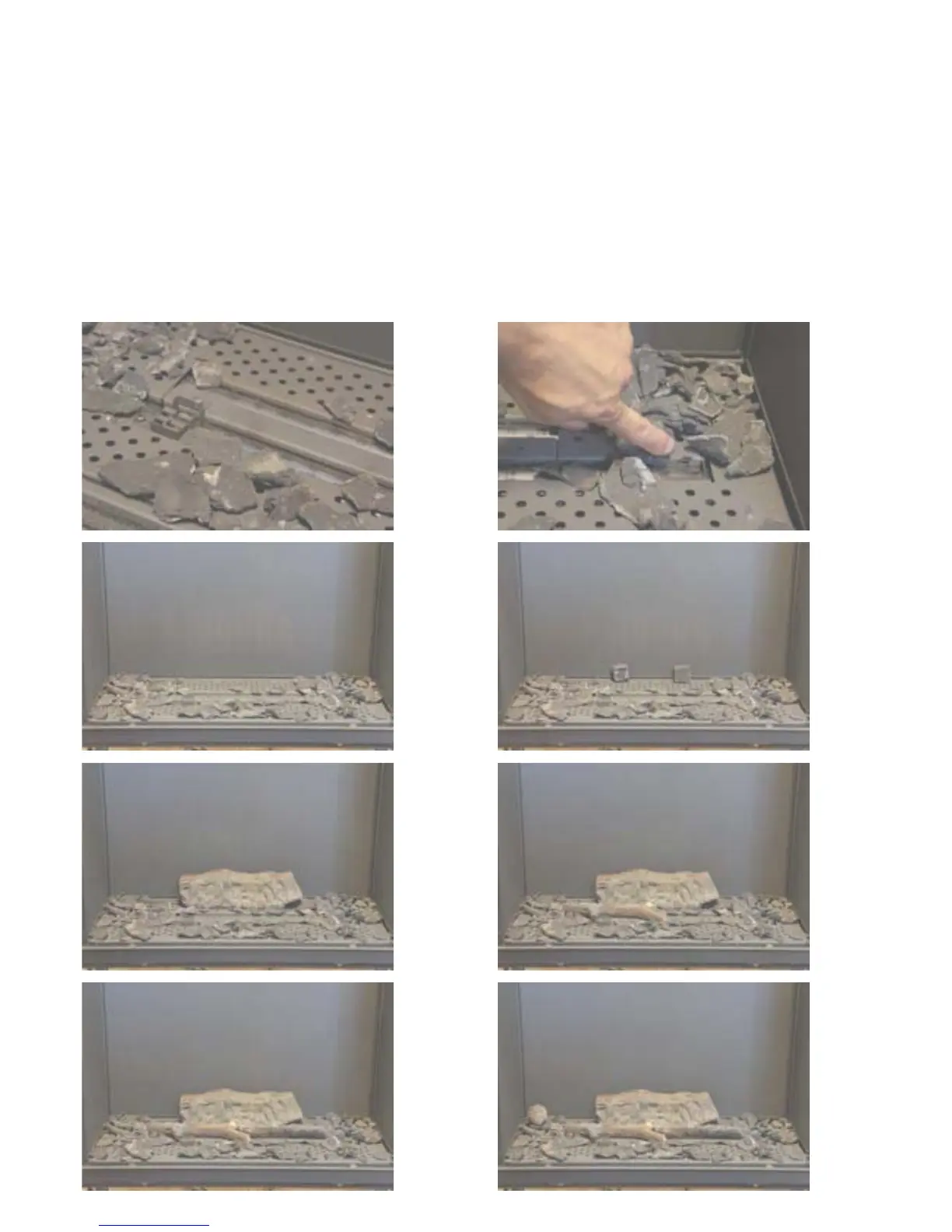

Only the ceramics supplied with this appliance are to be used. The ceramics must be laid only as shown
on this page. Replacement parts are available from your dealer, but should only be installed by a qualied
installation engineer. Ensure that the grate is sitting rmly in the base of the re box, with the long slot in
the centre of the Grate aligning with the centre slots on the Burner. The Pilot ame must be visible through
the grate and the cut-out in the Pilot Shield.
1
3
5
7
2
4
6
8
