28
INSTALLER INFORMATION

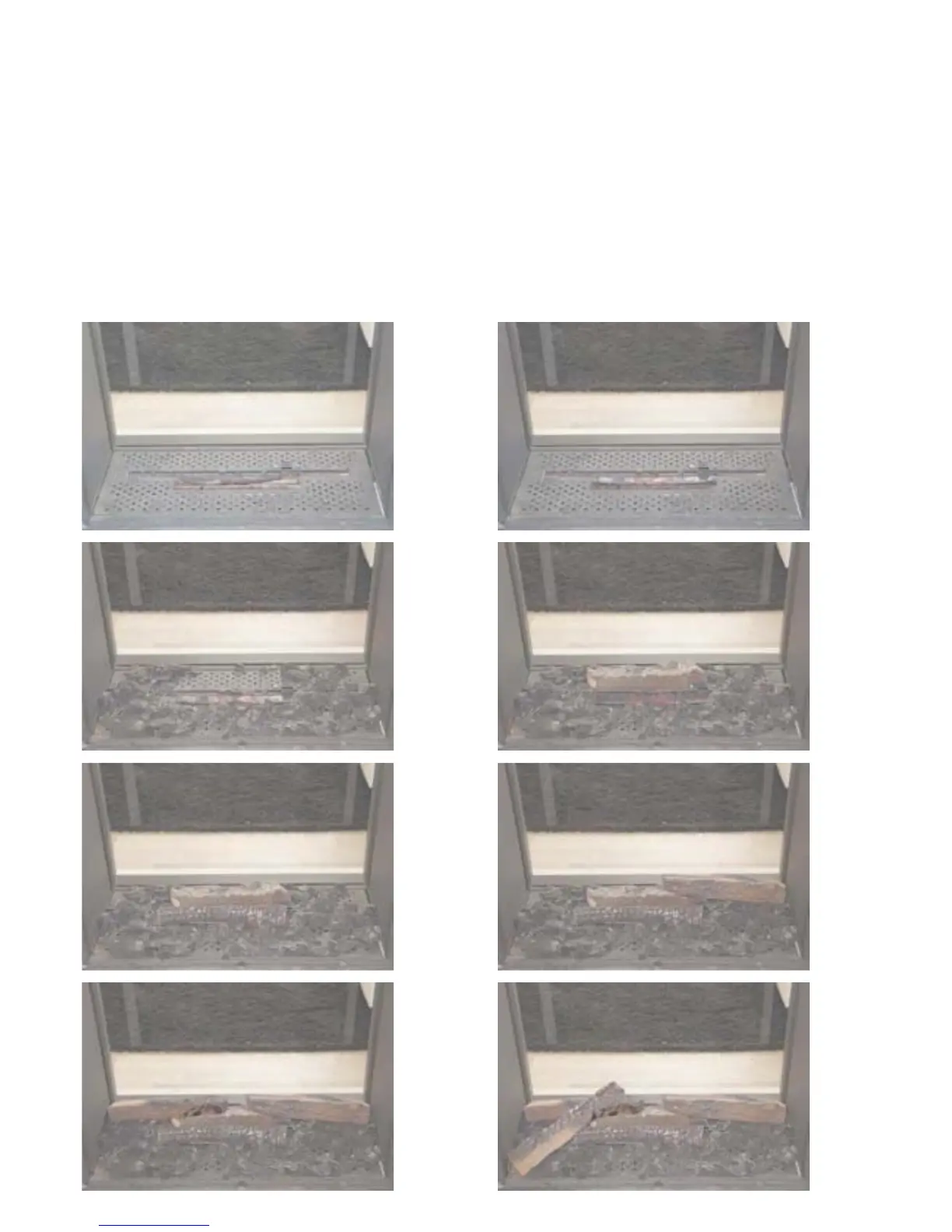

Log Arrangements Sky-T
Only the ceramics supplied with this appliance are to be used . The ceramics must be laid only as
shown on this page. Replacement parts are available from your dealer, but should only be installed
by a qualied installation engineer. Ensure that the grate is sitting rmly in the base of the re box,
with the long slot in the centre of the Grate aligning with the centre slots on the Burner. The Pilot
ame must be visible through the grate and the cut-out in de Pilot Shield.
1
3
5
7
2
4
6
8
