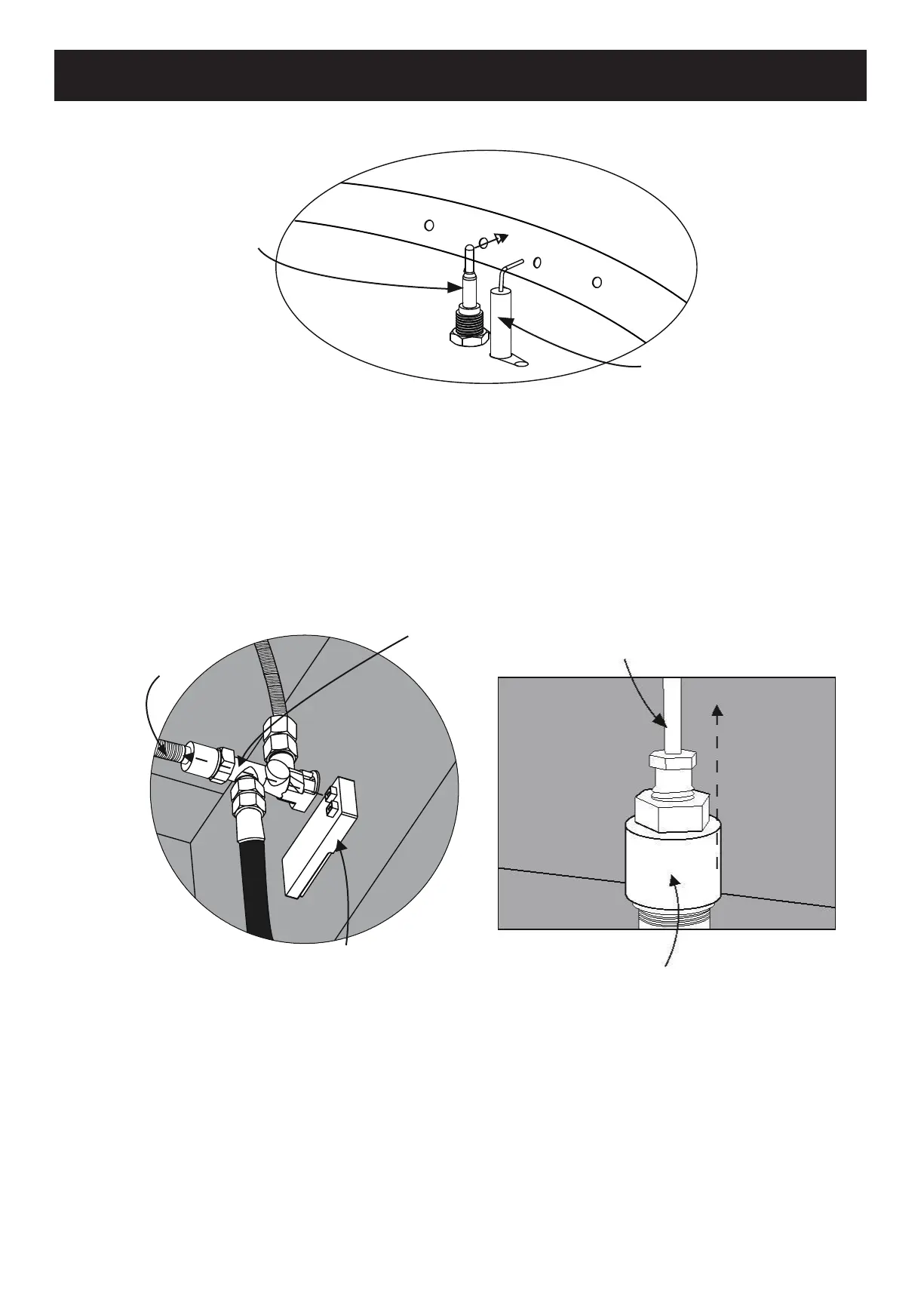

GAS COMPONENT CONNECTION CHECKS
Thermocouple
Igniter Pin
3. Make sure that the igniter pin and thermocouple are correctly positioned.
- The igniter pin should be pointed straight to the thermocouple.
- The thermocouple should be positioned 5mm away from the burner tube.
16 / 20
Thermocouple Wire
Valve
Wire should
be in line
with valve
Valve
Igniter Box
4. Make sure that the thermocouple wire is correctly positioned. The thermocouple
wire should be in line with the valve.
Thermocouple
Wire
5mm /
0.196”
To Next Page
