Assembly
It is important that you read the entire manual to become familiar with the product BEFORE you assemble and
use the cargo carrier. Before assembling and operating the cargo carrier, be sure that you have all parts de-
scribed in the parts list and assembly diagram.

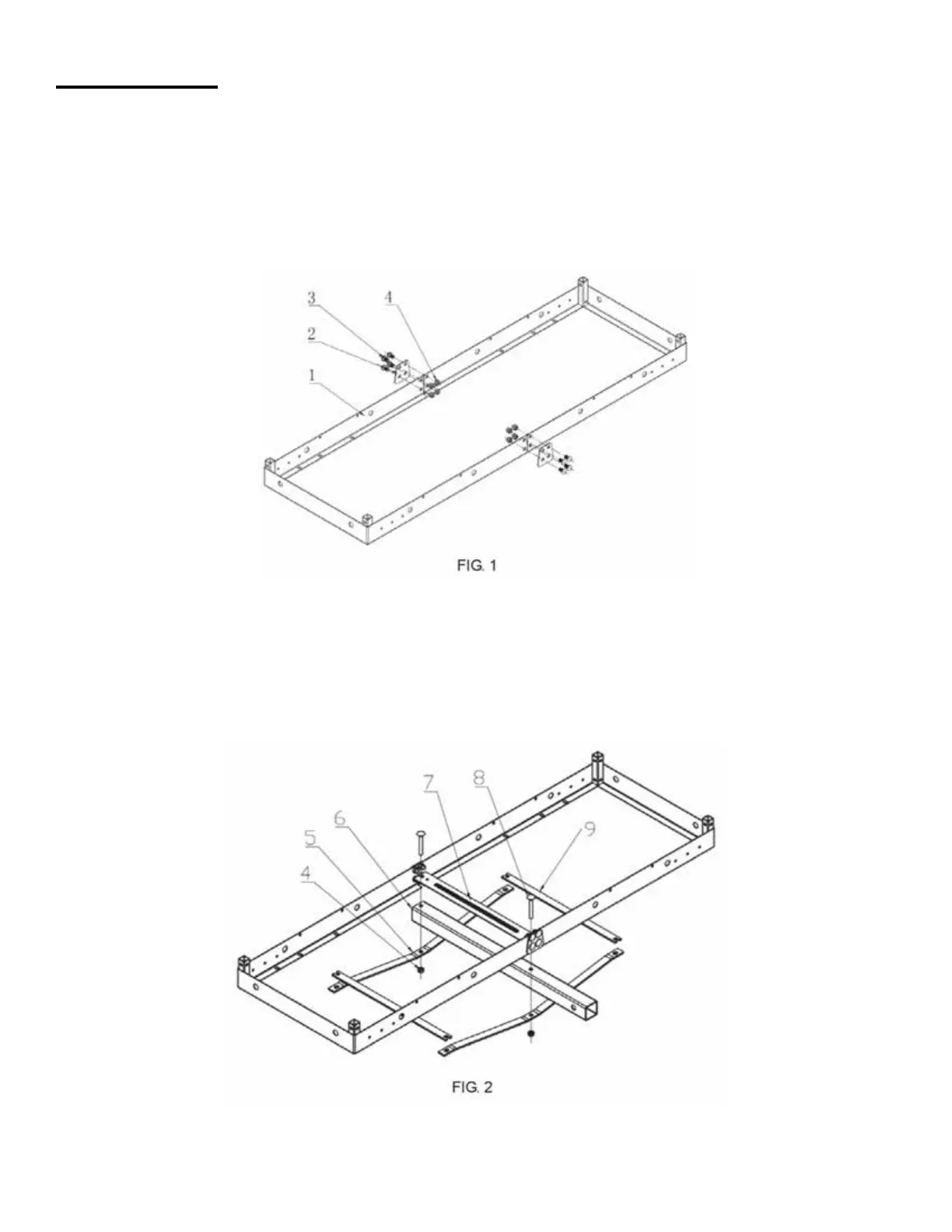

Step 1. Connect the two supporting frames (1) with the connecting piece (2). Line up the corresponding square
holes and secure with four M10x20 carriage bolts (3) and four M10 lock nuts (4). Repeat with the other con-
necting piece (2) on the other side. Do not tighten completely yet. See Fig. 1.
Step 2. Place the tie plate (7) on the middle of the assembled supporting frame (1), then place the frame (1)
over the tube assembly (6) and two support braces (5). Secure using two M10x75 bolts and two M10 lock nuts
(4). Do not tighten completely yet. See Fig. 2.
