ELEVATE CC-1223 - Step 3: Secure Support Braces and Stiffeners; Step 4: Align and Tighten Frame; Step 5: Install Side Fences

Page 4Rev. 031720
1-888-651-3431

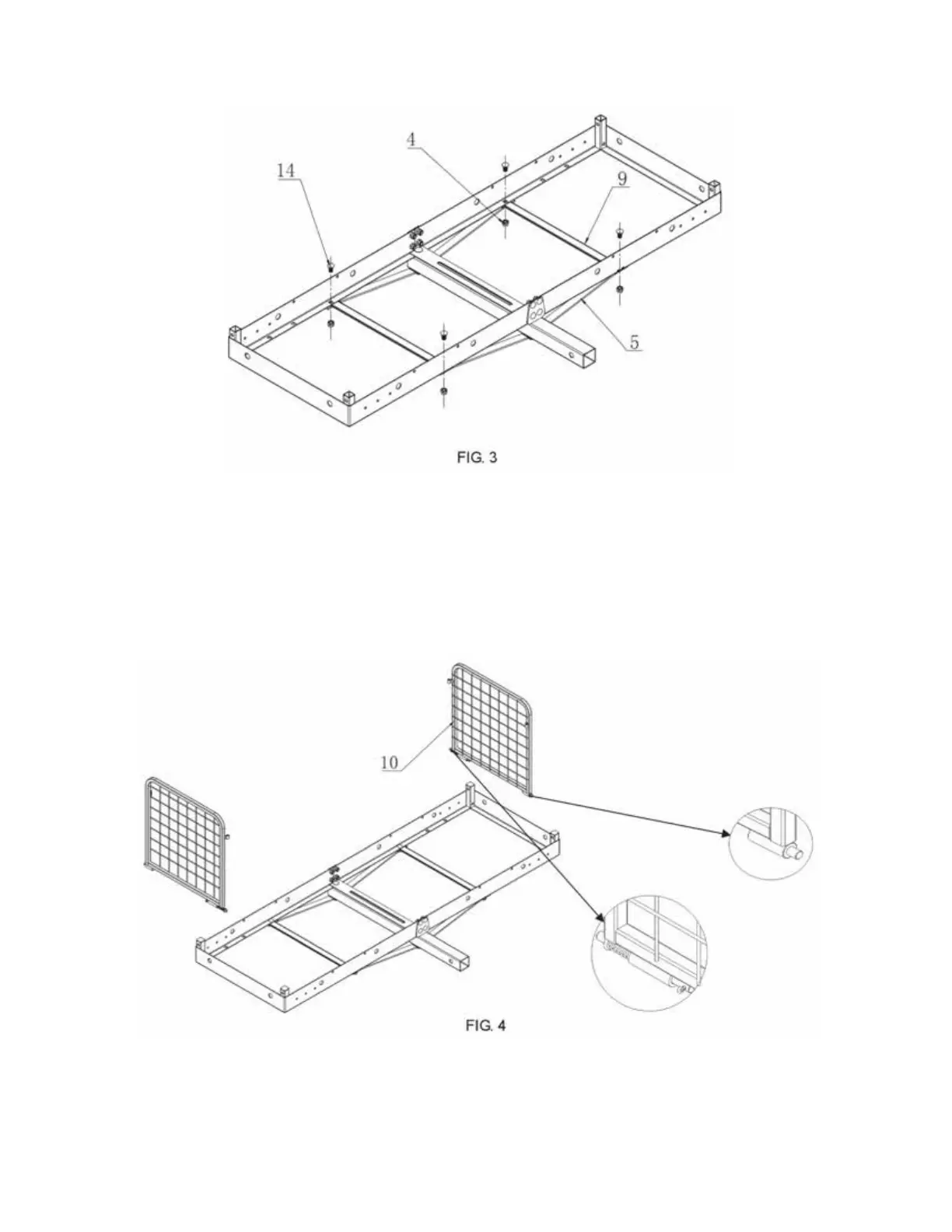

Step 3. Secure both sides of the two support braces (5) and the two sti󰀨eners (9) to the frame (1) with four
M10x25 carriage bolts (14) and four M10 lock nuts (4). Do not tighten completely yet. See Fig. 3.
Step 4. Check that the two frame sides align horizontally, then tighten all bolts and nuts.
Step 5. Insert the cylindrical pin with spring on the bottom of the side fences (10) into the side hole on the cor-
ner xtures of the supporting frames (1). For ease of assembly, place with the fencing inside. See Fig. 4.
