ELEVATE HCCA-2249 - Diagram and Parts List

Page 3Rev. 060120
1-888-651-3431

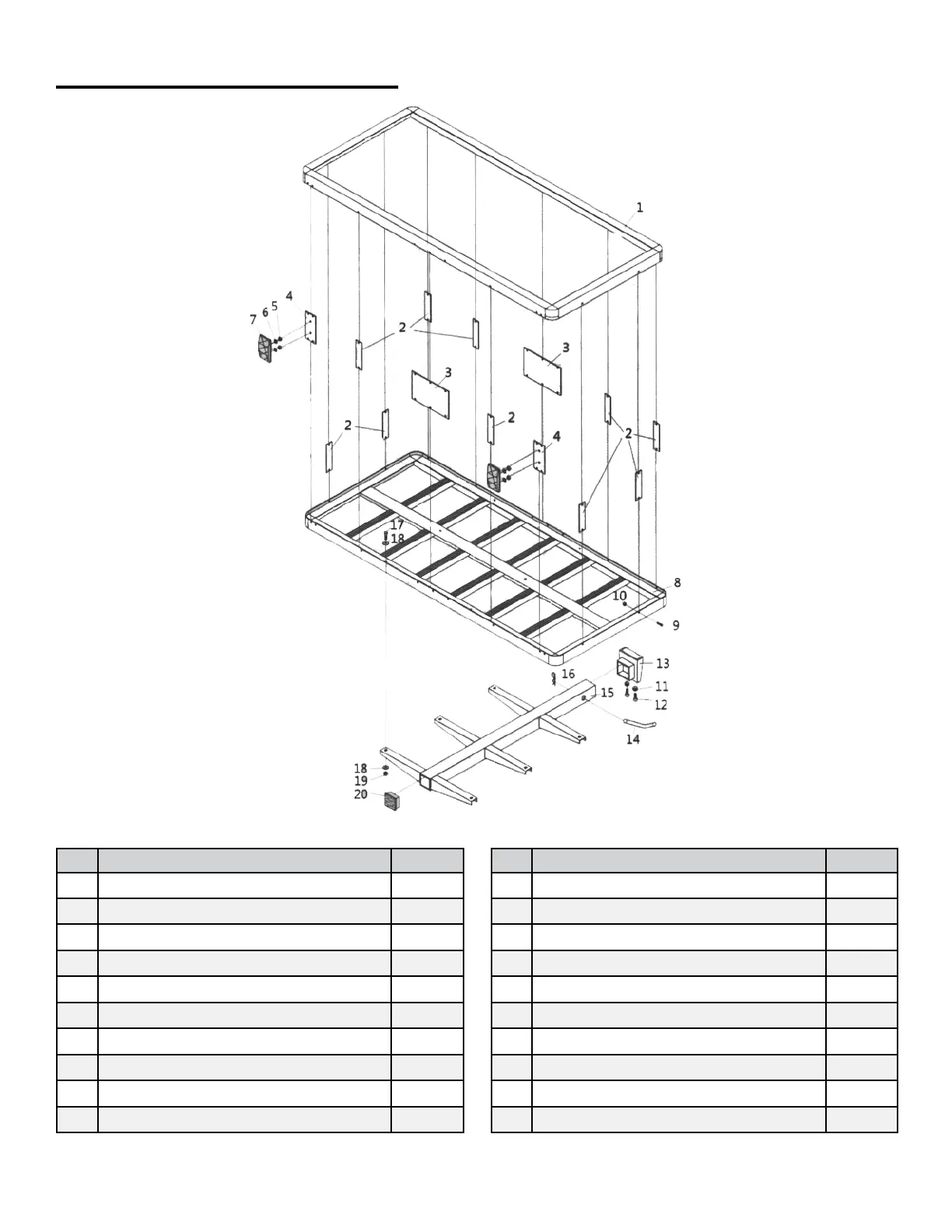

Diagram & Parts List
Part Description Quantity
1 Top Carrier Frame 1
2 Small Connect Plate 10
3 Middle Connect Plate 2
4 Reector Plate 2
5 Nut M5 4
6 Spring Washer 5 4
7 Reector 2
8 Carrier Frame 1
9 Bolt M5x12 40
10 Lock Nut M5 40
Part Description Quantity
11 Bolt M10x45 2
12 Nut M10 2
13 Anti-Tilt Bracket 1
14 Hitch Pin 1
15 Hitch Connect Frame 1
16 Safety Pin 1
17 Bolt M6x45 6
18 Big Washer 6 12
19 Lock Nut M6 6
20 End Cap 1
