Control and Functions

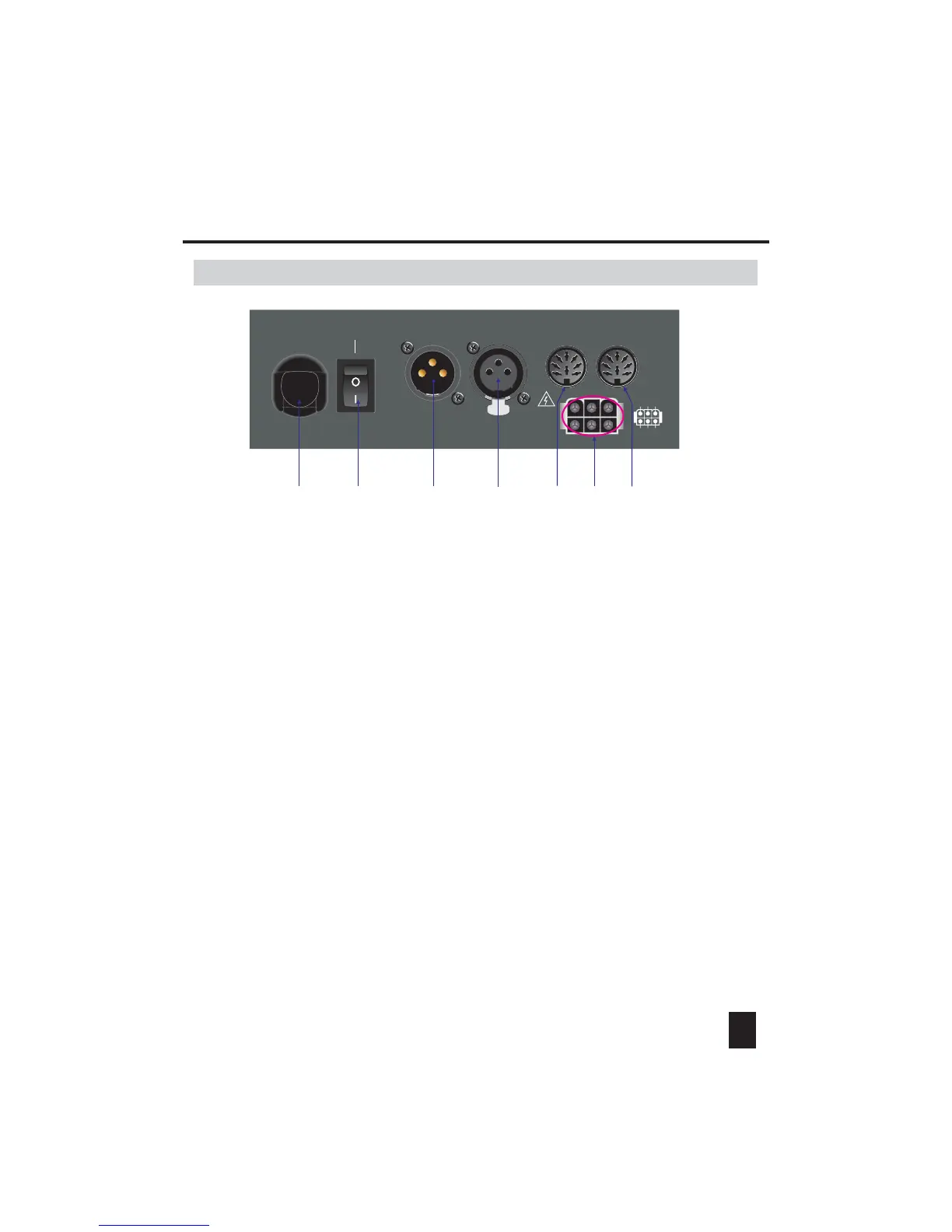

2. Side View
14. Ropelight connector:
8. Power input:
Used to connect with the rope lights.
AC 120V~ 50-60Hz, 15A Max.
9. Power switch:
10. DMX IN:
To turn on or turn off the main power.
To input DMX signal via this connector.
4
11. DMX OUT:
To output DMX signal via this connector.
12. Analog In:
13. Analog Through:
To input analog signal via this connector.
To send out analog signal through this connector.
POWER INPUT:
AC 120V~ 50-60Hz,
15A Max.
Made in PRC
DMX OUT
DMX IN
POWER ANALOG IN
ROPELIGHT
CONNECTOR
ANALOG
THROUGH
High Voltage, Don't Touch !
24
N
1
3
N
Fuses : F6A 250V 5x20mm (Load) x4
F1A 250V 5x20mm (Electronic)
3
3
3
2
2
2
1
1
1
PUSH
PUSH
PUSH
1
1
1
2
2
2
3
3
3
10
8
9
11 12
14
13
