Elite Screens AEON series User Manual

Rev.04/17/2017 DR www.elitescreens.com 2

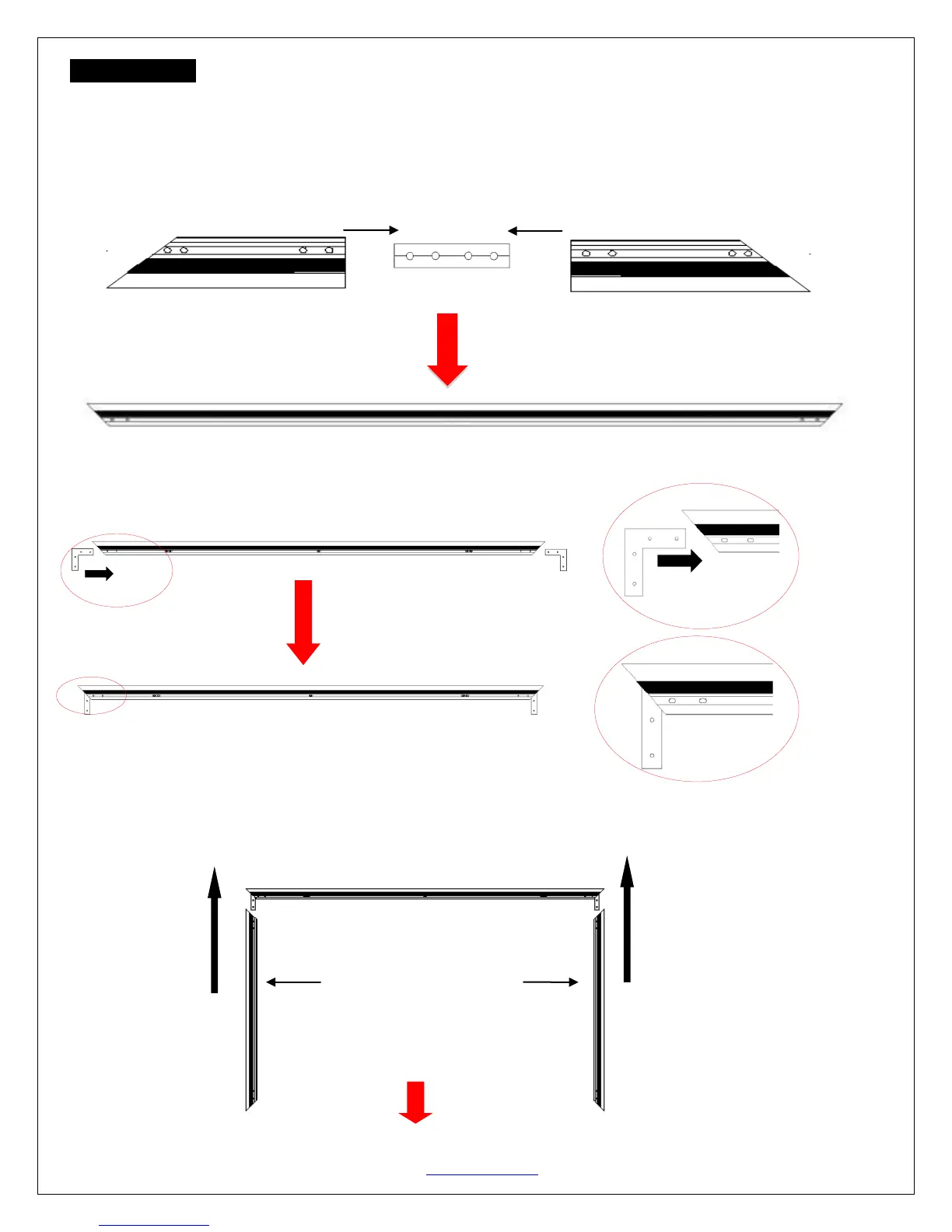

Frame Assembly
1. Insert the center joint into one of the ½ horizontal frames (B) and fasten it with the two M5x15 screws (G).
2. Insert the other ½ horizontal frame piece to the center joint and fasten also using two M5x15 screws.
3. Repeat steps 1 and 2 for assembling the second horizontal frame.
Push
4. Insert the elbow joint (A) into each end of the horizontal frames (B) as shown below.
5. Insert the two vertical short frames (C) into the elbow joint (A).
Horizontal long frame (B)
Vertical short frame (C)
Horizontal long frame (B)
Elbow Joint (A)
push
push
Elbow Joint (A)
Horizontal frame
Center Joints
Top right Frame
Top left Frame
Push

Elite Screens AEON series Specifications

General

Screen Type	Fixed Frame
Viewing Angle	180 degrees
Frame Material	Aluminum
Frame Color	Black
Aspect Ratio	16:9
Material	CineWhite
Installation	Wall mount
Frame Width	0.47" / 12 mm
Available Sizes	84" - 150" (Diagonal)
